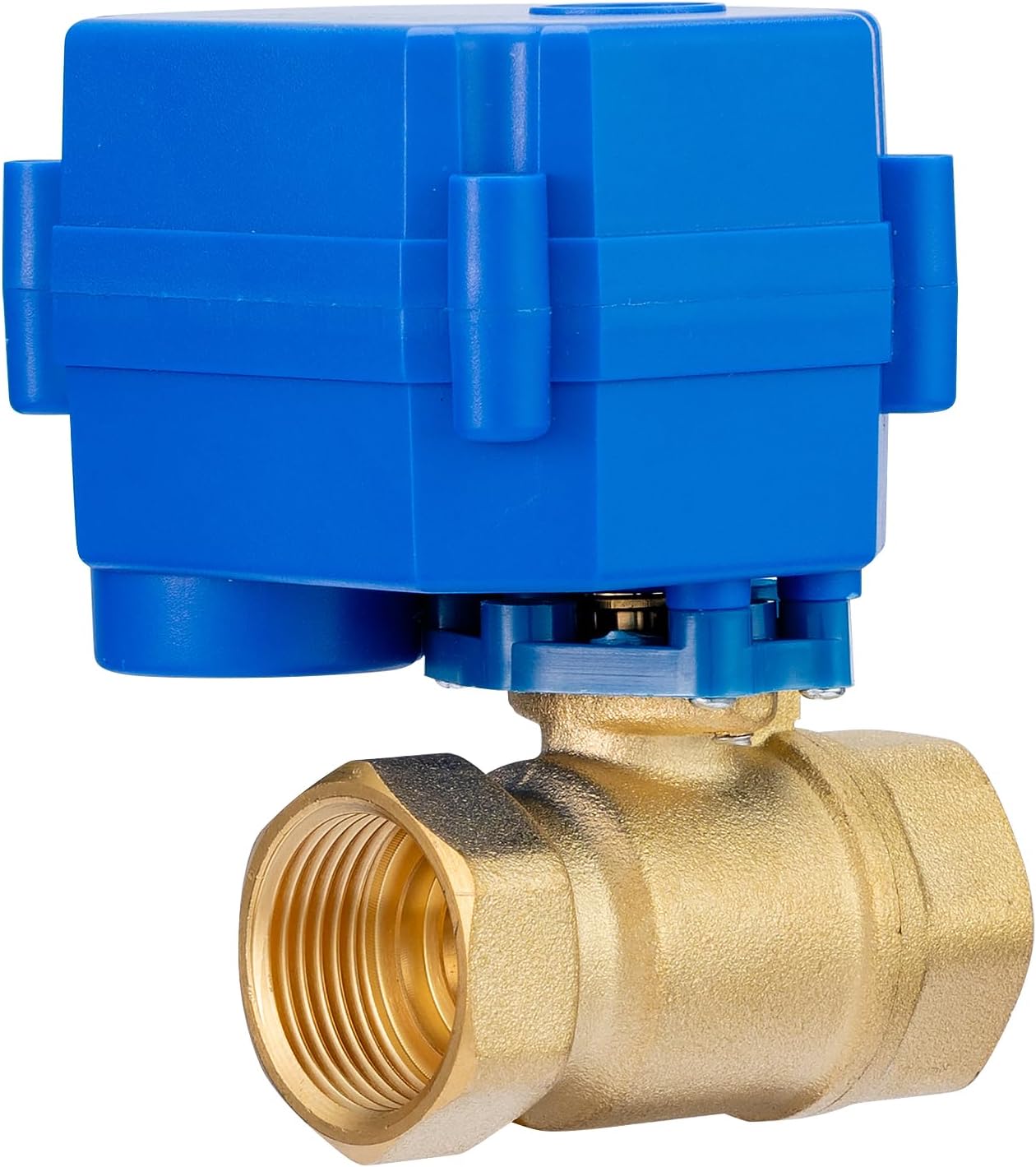

1" Motorized Ball Valve Brass Ball Valve with Standard Port, 9-24V AC/DC and 2 Wire Auto Return Setup
$38.00
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by bitbiashara.com
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
$38.00
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by bitbiashara.com
Free 30-day returns Details
Product details
| Management number | 211105242 | Release Date | 2026/04/04 | List Price | $15.20 | Model Number | 211105242 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- [Brass Construction] This ball valve is made of brass, large output torque, service life: 80,000 to 100,000 cycles

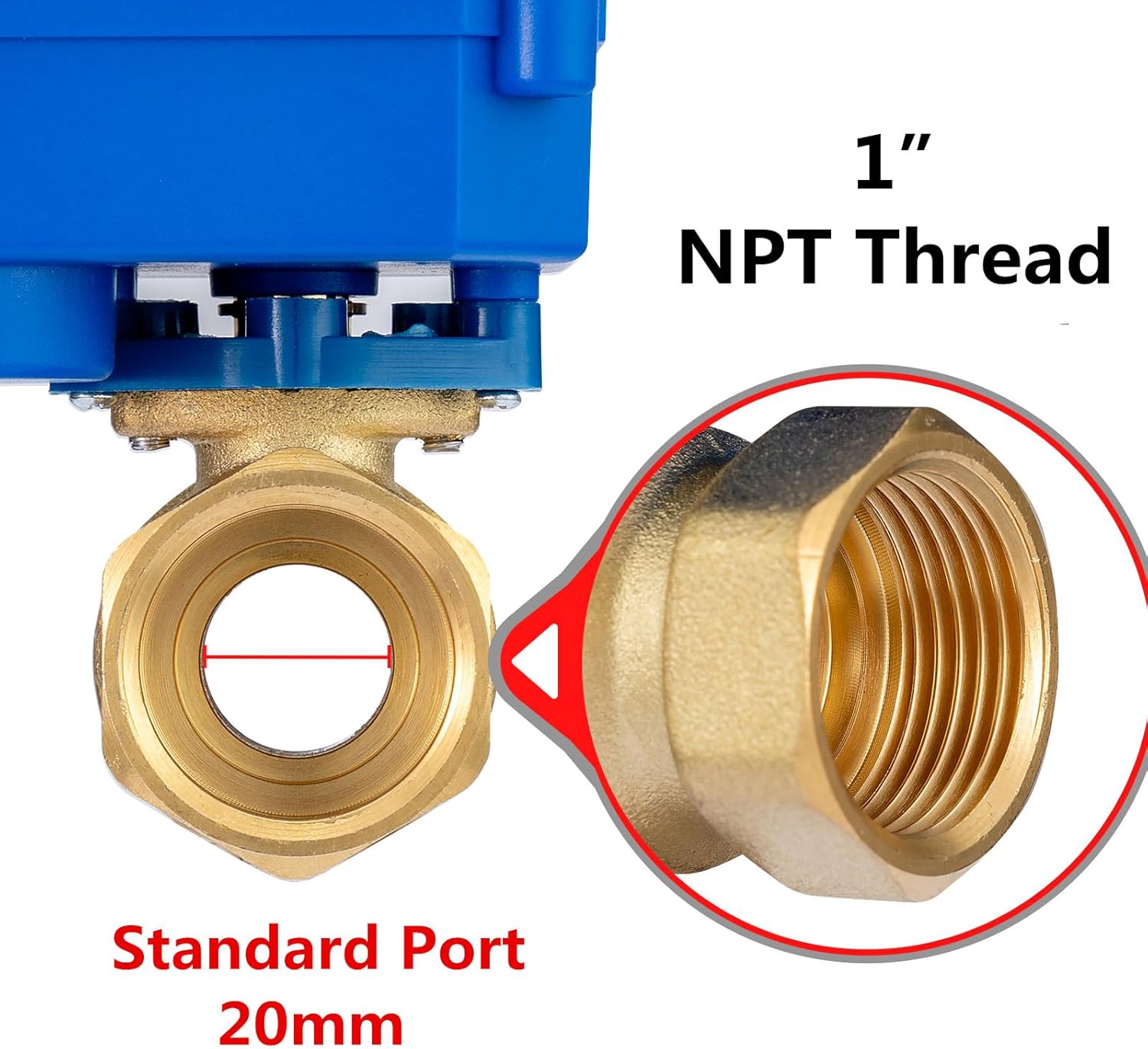

- [NPT Thread] 1 inch brass thread, National Pipe Thread, The electrical ball valve is Standard port with bore size that is is smaller than 1" inner diameter of the pipeline, effectively reduce pressure loss with this valve, ensuring efficient flow dynamics.
- [Voltage Range] 9V to 24V AC/DC. Opening or closing time: 3-5 seconds; Limit switch minimizes power after valve is fully open; Ideal for projects where an automatic return is necessary.
- [2 Wire Auto Return] two-wire connection of this ball valve, As it moves to the open position, this mechanism efficiently utilizes power while simultaneously charging an internal capacitor. When power is removed or in the event of a power failure the valve will return itself to the closed position.
- [Superior Alternative] Good substitution for solenoid valve or pneumatic valve. This motorized ball valve automatically cuts off power once it reaches the fully open or fully closed position, which reduce the risk of overheating.
| Size | 1 Inch |
|---|---|
| Brand Name | UwinVwin |
| Unit Count | 1.0 Count |
| Valve Type | Ball Valve |
| Manufacturer | UwinVwin |
| Model Number | E1AR |
| Material Type | Brass |
| Exterior Finish | Brass |
| Number of Ports | 2 |
| Inlet Connection Size | 1 Inches |
| Inlet Connection Type | National Pipe Tapered |
| Outlet Connection Type | NPT |
