1 Set 3/8" Wedge Socket High Tensile Casting Steel Wire Rope Wedge Open Spelter Socket

Features: The wedge socket is made of sturdy alloy steel, which is durable and long lasting. The wedge shaped socket is specially manufactured for steel wire rope slings. It is heat treated for tensile strength and wear resistance, while also allowing for shock absorption. The wedge socket is widely applied in lifting conditions, sling conditions, trailer conditions, marine conditions, container and port binding conditions, and logging conditions, making it easier to connect with hook and loop, ejector pin, wire clamp, chain link and ring, chain sling, hook, pulley, and so on. Specifications: Material: alloy steel Color: red Size: 3/8 inches/0.95 cm Package includes: 1 x Wedge socket Notes: Manual measurement, please allow slight errors on size. The color may exist a slight difference due to different screen displays

• Sturdy Material: the wedge socket is made of sturdy alloy steel, which is durable and long lasting; The wedge shaped socket is specially manufactured for steel wire rope slings; It is heat treated for tensile strength and wear resistance, while also allowing for shock absorption

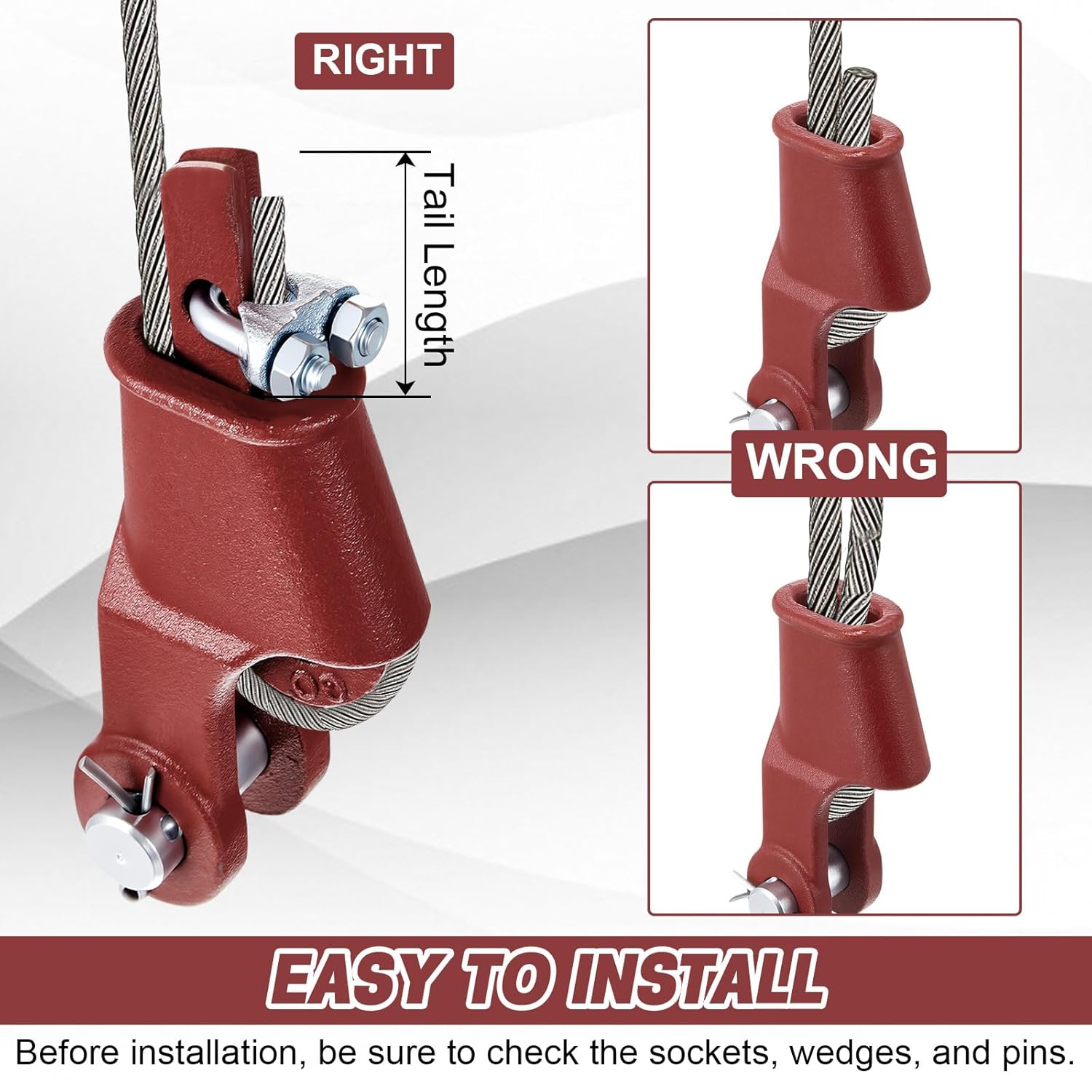

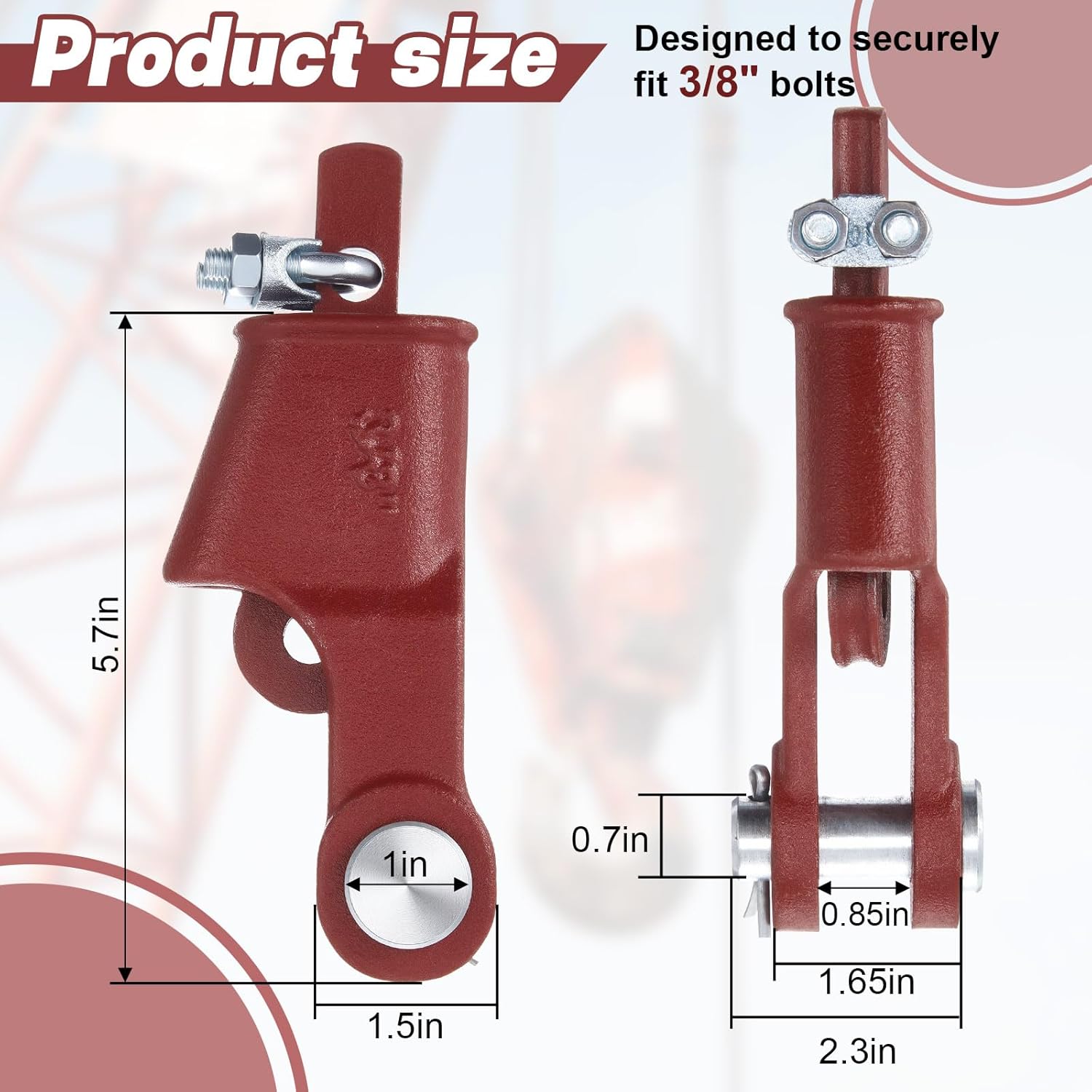

• Adaptation Model: the wedge socket is designed specifically for 3/8 inch bolts, and the pin diameter and jaw opening of the practical wedge socket allow for the combination of wedge and socket with closed forged and Spelter sockets; When applying, the steel wire rope should pass through the "Go" hole instead of the "No Go" hole on the wedge
• Easy to Apply: wedge socket has an efficiency level of 80% and adopts a blind hole driven drill bit handle design, which is very suitable for difficult to reach or blind hole operations; The diameter of the pin and the size of the jaw opening allow the wedge and socket to be applied in conjunction with enclosed crimping sockets and zinc alloy sockets; Installation requires fixing the tail of the steel wire rope to the wedge, thereby eliminating the loss or rushing out of the wedge
• Widely Application: the wedge socket is widely applied in lifting conditions, sling conditions, trailer conditions, marine conditions, container and port binding conditions, and logging conditions, making it easier to connect with hook and loop, ejector pin, wire clamp, chain link and ring, chain sling, hook, pulley, and so on
• High Intensity: workload Limit (WLL) is designed to withstand the maximum load during lifting operations; The average stress under this load is 200n/mm2 (MPA), and based on a safety factor of 4: 1; Manufacturing strength (MPF) is the force exerted on a chain during the manufacturing process; The average stress of the wedge socket under this load is 500n/mm2 (MPA), which is 2.5 times the working load limit
