1080P 4K RV Backup Camera System Portable Wireless Apple Carplay/Android Auto Mirror Link Smart Player 10.36 inch Touchscreen Reverse Monitor DVR Loop Recording 4 Split Screen Bluetooth USB TF

Specification10.36 Inches Smart PlayerScreen: 1600*720Language: Chinese / English / Russian / Spanish / French / German / Japanese / Korean / Italian / PortugueseVoltage: 12-36VInstallation Method: StandOperating Temperature: ：-4~149 ℉Intelligent Interconnection: Support IOS CarPlay/Android Auto/Airplay/Android Cast/WiFi videoCooling Method: Passive CoolingAudio output: Speaker/BT for CarPlay or Android Auto/AUXPlayback: SupportCamera: up to 4 camerasAuto-dim: Support(Set the time for Automatic Dimming)Screen Saver: Disable /10s/30s/1minDriving Position: Left/RightCarplay/Android Auto: Split Screen/Full ScreenHover Button: On/OffClear Connection: SupportedCamera Format: 720P/720N/1080P/1080NCamera Count:2/4Video Resolution: 2K/4KCycle Time: 1/3/5minMicrophone: On/OffLeft and Right Mirror Images: CH1/CH2Parking Monitoring: Closed /2/8/12/24 hours/alwaysReverse Cable: SupportedKey tone: On/OffTime Setting: 12 hours /24 hoursViewing Memory Capacity: Supported1080P CameraNoise Ratio ( SNR):≥69dBHorizontal Viewing Angle:135°TV System: PALWaterproof Rating: IP68Operating Temperature: -30°C ~+80°CPixel：AHD 1080P(2.0 Mega Pixels)Night Vision Images: Full ColorPackage Included4 x Weatherproof Backup Camera1 x 10.36” Color LCD Monitor1 x Monitor Power Cable1 x Cigarette Lighter Power Cord1 x Universal Mount With Adhesive Pad1 x 15M Camera Extension Cord3 x 5M Camera Extension Cord1 x Screw Kit

• 【Apple Carplay/Android Auto】Available for iPhone and Android phones. This function can synchronize the phone book, mail, notification, map navigation APP, music APP on the mobile phone to the monitor, and supports calling mobile phone voice assistant for voice control. Turn on the Bluetooth and WiFi switches of the mobile phone, connect the Bluetooth of the monitor, and click the corresponding icon to use. Turn off both the phone's WIFI and Bluetooth to completely exit the program.
• 【Mirror Link】Portable player supports iPhone and Android phones to use the mirror link function. The phone screen can be projected onto the monitor screen. [iPhone]: Click on the "Apple Airplay" App, follow the prompts, search for the name of the player in the phone WiFi and connect. Swipe up on the phone homepage, select the double rectangle icon and select "Smartscreen". [Android Phone]: Click the "Android Cast" APP, scan the code to download the software, and then connect to the phone WiFi.
• 【View Driving Record】Click the [Wifi video] icon, follow the prompts for wireless connection, scan the code to download the screen software, you can watch the driving record on the mobile phone and download the driving playback. Note that this feature is only available within the car player range and cannot be viewed remotely over long distances.
• 【Sound Synchronization】When the FM frequency of the monitor is adjusted to the frequency of the car radio, the sound played by the monitor can also be sent out on the car radio. This function is only used for sound transmission, the monitor cannot listen to FM stations. The AUX line is used for this function. When the signal is unstable, use the AUX cable to connect the AUX port of the monitor to the AUX port of the car radio.

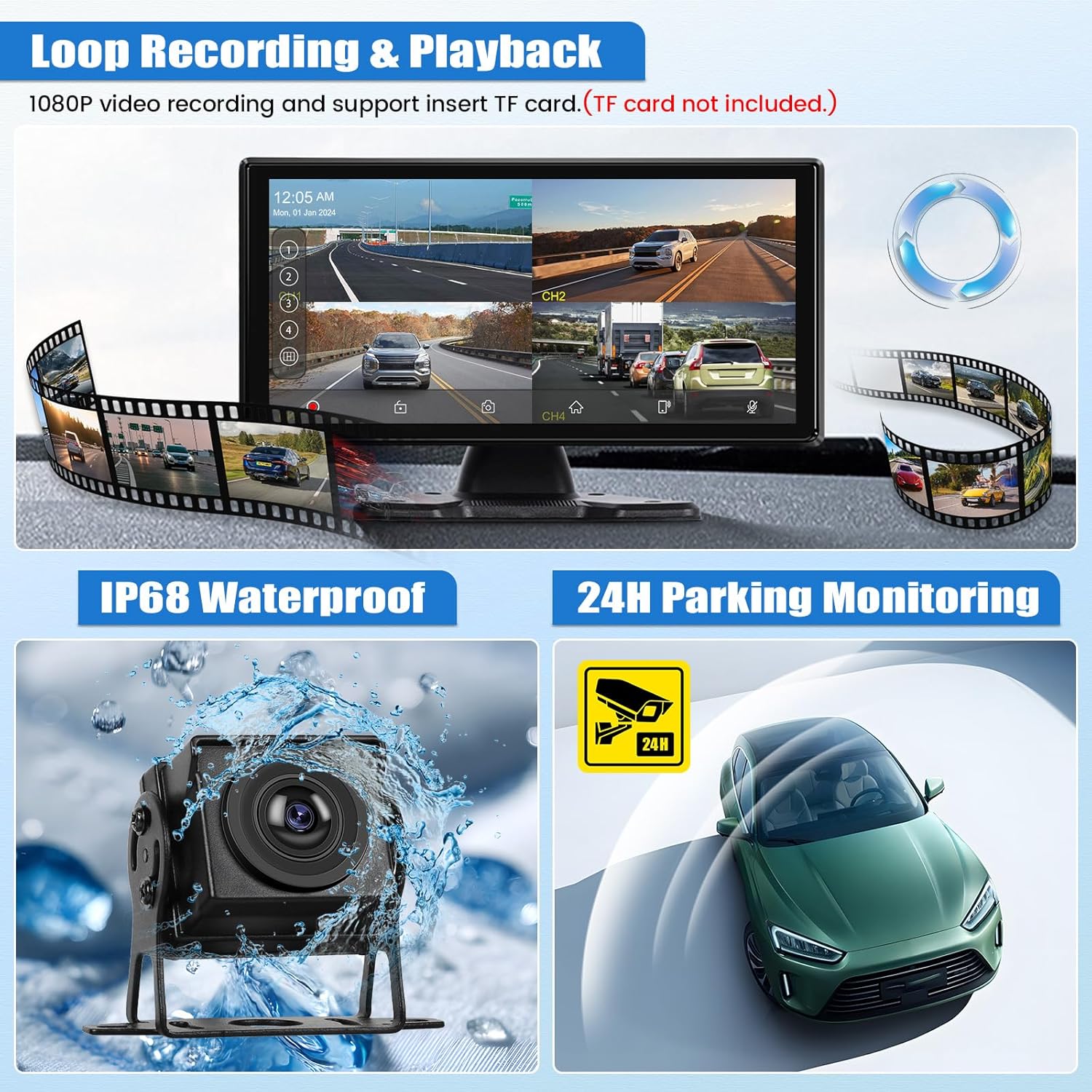

• 【4-Split Screen Recording】This smart monitor supports 4-split screen, and the screen can be split or displayed separately. The high-definition 4K camera provides clear picture quality day and night. Supports loop recording, insert a TF card, and automatically loop over the video.
• 【ParkAssist】The camera has a low-light night vision function to maintain clear and colorful images at night. The rear view camera meets the waterproof level and is not afraid of rainy days. The reverse line can be adjusted as needed in the player.
• 【Audio Output】Before you use an application, please go to the audio output and select the corresponding function, so that the player can sound correctly. For example, if you want to make the machine itself sound, select [Speaker]. To make the sound using Apple Carplay, select the [Carplay/Auto] option.

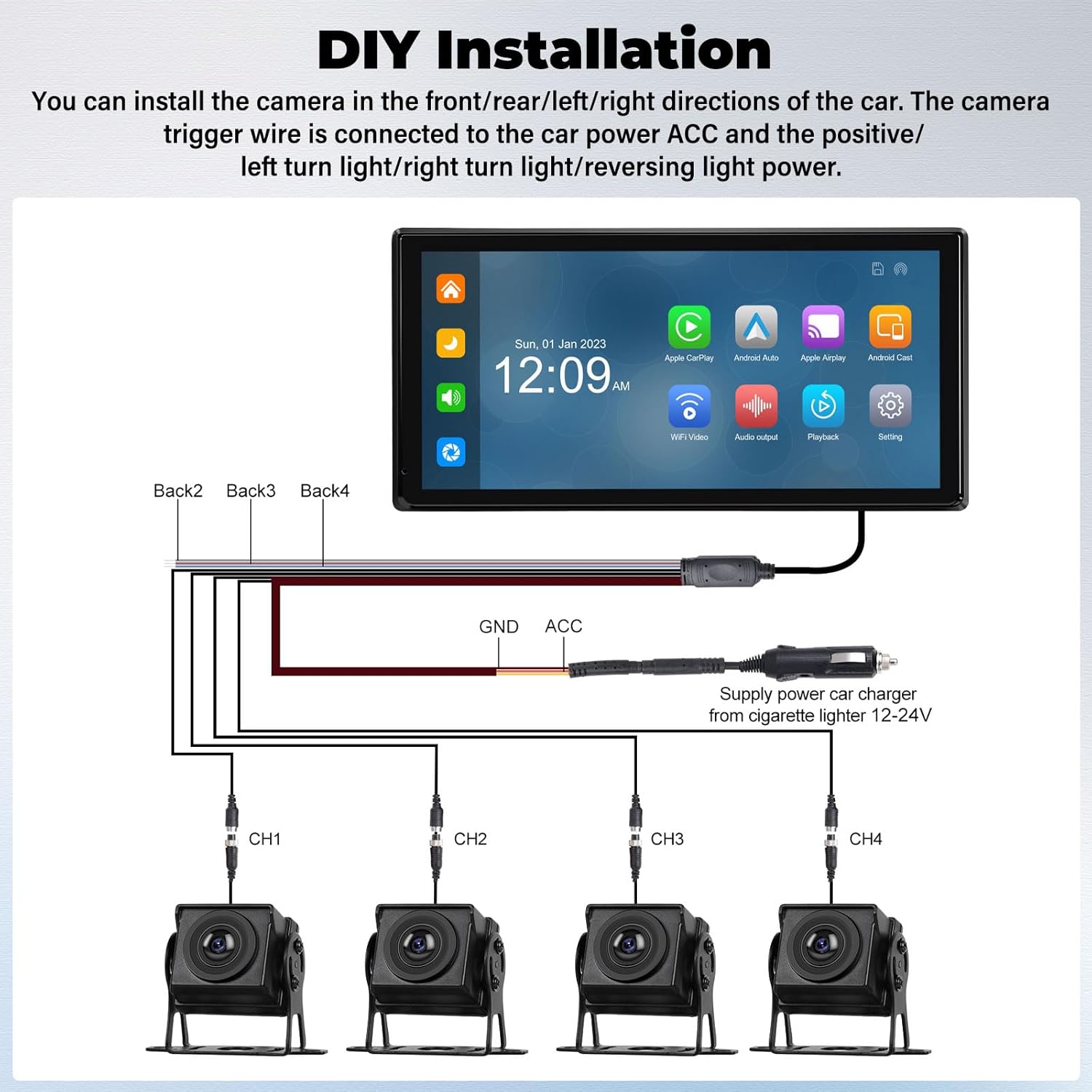

• 【DIY Installation】Support power supply 12V-36V. Covers most cars. The USB port can also charge mobile phones. One 15-meter Camera Extension Cord, three 5-meter Camera Extension Cord. You can install the camera in the front/rear/left/right directions of the car. The camera trigger wire is connected to the car power ACC and the positive/left turn light/right turn light/reversing light power.
