10A 20A 30A DC 12V 24V Brushed Motor(12V 10A with Shell)
Product details
| Management number | 211057249 | Release Date | 2026/04/04 | List Price | $16.89 | Model Number | 211057249 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Solid State RelaysProduct Name:DC 12V 24V Brushed Motor Overload Overcurrent Short Circuit Protector Forward Reverse ControllerProduct Included:1pcs DC 12V/24V 10A/20A/30A DC Motor Overcurrent Overload protectionProduct parameters:10A Version:1 Working voltage: DC 12V (12V version) or 24V (24V version) (DC power supply power motor power x3);2 Applicable motor: 12V/24V Brushed DC motor;3 Maximum current: Short-term working current 10A, long-term working current 3A;4 Protection current adjustment range: 0.2A~10A;5 Motor control: Forward, Reverse;6 Working modes: 2 optional modes, Non-locking and self-locking;7 Working current (excluding motor): 40mA;8 Size: 97*50*32mm (with shell), 79.5*48.2*19mm (without shell);9 Weight: 80.3 grams (with shell), 45,5g(without shell).20A/30A Version:1 Working voltage: DC 12V (12V version) or 24V (24V version) (DC power supply power motor power x3);2 Applicable motor: 12V/24V Brushed DC motor;3 Maximum current: Short-term working current 20A/30A, long-term working current 10A;4 Protection current adjustment range: 0.2A~20A/0.2A~30A;5 Motor control: Forward, Reverse;6 Working modes: 2 optional modes, Non-locking and self-locking;7 Working current (excluding motor): 5-70mA;8 Size: 87*58*25mm;9 Weight: 80.1 gramsPlease contact me for detailed instructionsPin DescriptionM- : Motor-M+:Motor+VCC:Power Supply+GND:Power Supply-COM:Control signal common terminal(GND)FWD:Forward controlREV:Reverse controlLED :Power supply indicatorO.L : Overload signal outputMODE:Momentary/Self-locking mode selectionADJ :Overload current regulationApplicationMotor Overload ProtectionMotor Overcurrent ProtectionMotor Short Circuit ProtectionLED Overcurrent Protection
- Solid State Relays

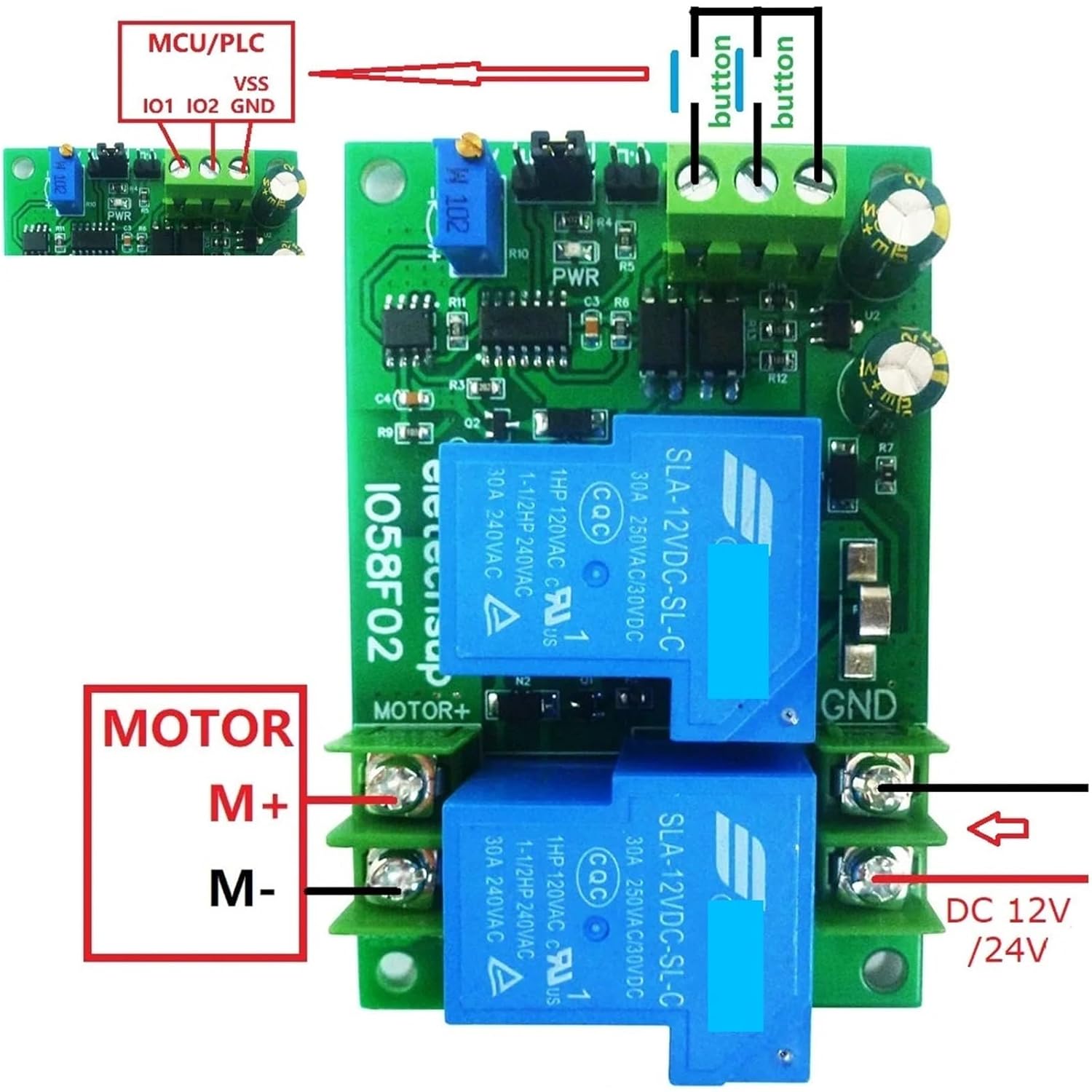

- VCC:Power Supply+
- GND:Power Supply-
- COM:Control signal common terminal(GND)
- FWD:Forward control
- REV:Reverse control
| Brand Name | RNQLJU |
|---|---|
| Part Number | MFVMOVOIZ-12V10AWITHSHELL |
| Manufacturer | RNQLJU |
