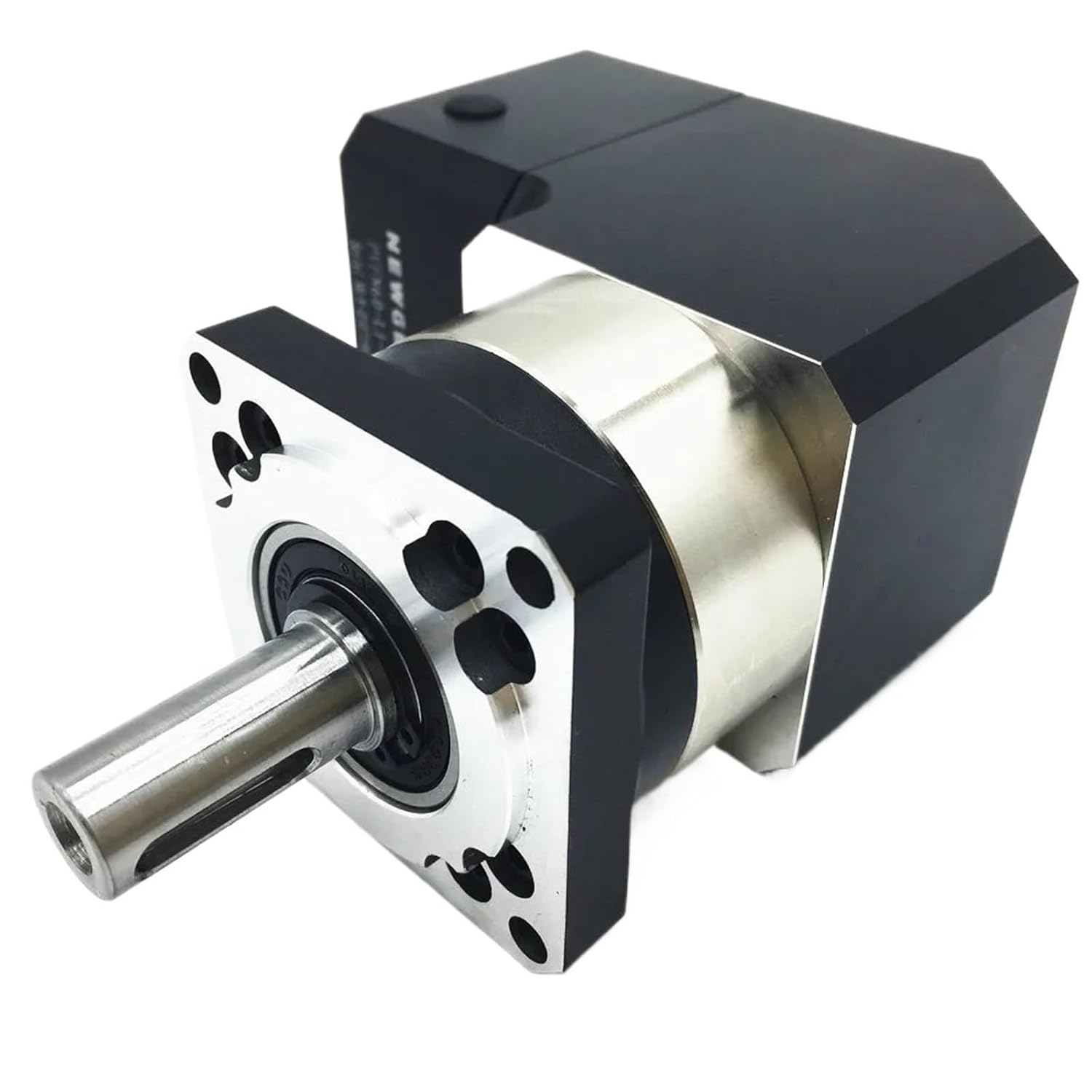

10Arcmin 90-Degree Right Angle Planetary Gearbox 19 22 24mm Input 3~100:1 Reducer for 110 130mm 1~3KW Servo Motor(Ratio 40,19mm Input)

MotorsPackage Included :1X Planetary reducer 1X Key4X Install screwReducer Parameters:Speed Ratio: 1Stage (L1): 3:1 / 4:1 / 5:1 / 7:1 / 10:1 2Stage (L2): 15:1 / 20:1 / 25:1 / 30:1/ 35:1 / 40:1 / 50:1 / 70:1 / 100:1 Gearbox type: High precision Right Angled Planetary GearboxInput size:19mm/ 22mm/ 24mmOutput Shaft: 25mmBacklash Precision: Less than 10 Arcmin (L1) / Less than 15 Arcmin (L2)Rated :210Nm(4:1/ 5:1/ 20:1/ 25:1/ 35:1/ 40:1/ 50:1)170Nm (7:1 / 70:1) ; 161Nm (3:1/ 15:1/ 30:1); 86Nm (10:1 / 100:1)Maximum : 1.5* Rated Emergency braking : 2* Rated Max radial force: 1240NMax axial force : 1000NTorsion rigidity: 11Nm/arcminMax input speed: 6000rpmRated input speed: 3500rpmTransmission efficiency: More than 95% (L1) / More than 92% (L2)Noise: less than 65dBProtection level: IP65==========Model Number : PVF120Construction : Permanent MagnetType : Gear MotorProtect Feature : Drip-proofCommutation : BrushEfficiency : IE 1Certification :

• Motors
• Easy Installation:Comes with a key and installation screws for a hassle-free setup, making integration seamless.
• High Efficiency:Boasts an IE 1 efficiency rating, translating to energy savings and a more efficient motor system.
• High Precision Backlash:Achieve precise motion control with a backlash precision of less than 10 Arcmin for smooth, reliable operation.
• Robust Construction:Built with a permanent magnet and a robust IP65 rating, ensuring durability and protection in challenging environments.
• Wide Speed Ratio Range:Offers a versatile 1-100 1 speed ratio to match various servo motor speeds for diverse applications.
