1/2" x 6' Hydraulic Hose Assembly, Two-Wire, 1/2" Male NPT Fittings On Both Ends, Minimum 4000 PSI – Multiple Lengths
Product details
| Management number | 211084371 | Release Date | 2026/04/04 | List Price | $30.80 | Model Number | 211084371 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Hydraulic Hose is tested to twice the ISO 18752 Standard. Designed for working pressures up to 4000 PSI and tighter bend radii than conventional hose. Tough cover for abrasion resistance. Our ToughCover is 80 times more abrasion resistant than our Standard cover, providing increased abrasion resistance for applications in demanding conditions. Both ends have Machine Compressed Identical NPT Thread Fittings. They are widely used in hydraulic systems where reliable, leak-free service and ease of assembly are required. Product is assembled in the USA in Binghamton, NY.
- 2 Wire braid reinforced synthetic rubber hose (exceeds SAE R2, R16, R17) for use in hydraulic systems

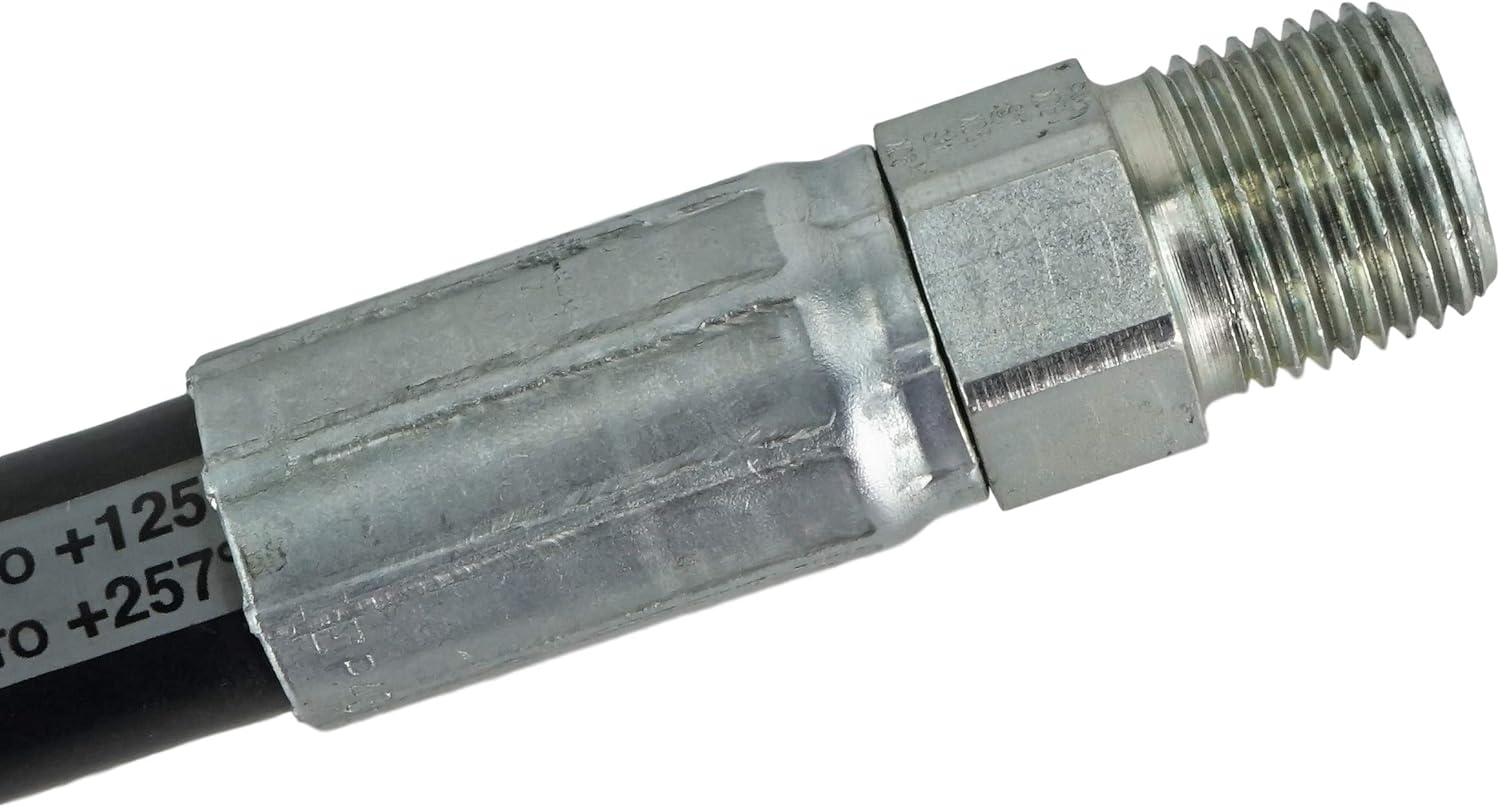

- One hose assembly machine crimped on both ends to Male NPT x Male NPT.
- 4000 PSI Working Pressure, -40 to 257 deg F Working Temperature with Exreme Abrasion Resistent Cover
- Designed and tested to the ISO 18752 specification. Assembly Buily in Binghamton, New York

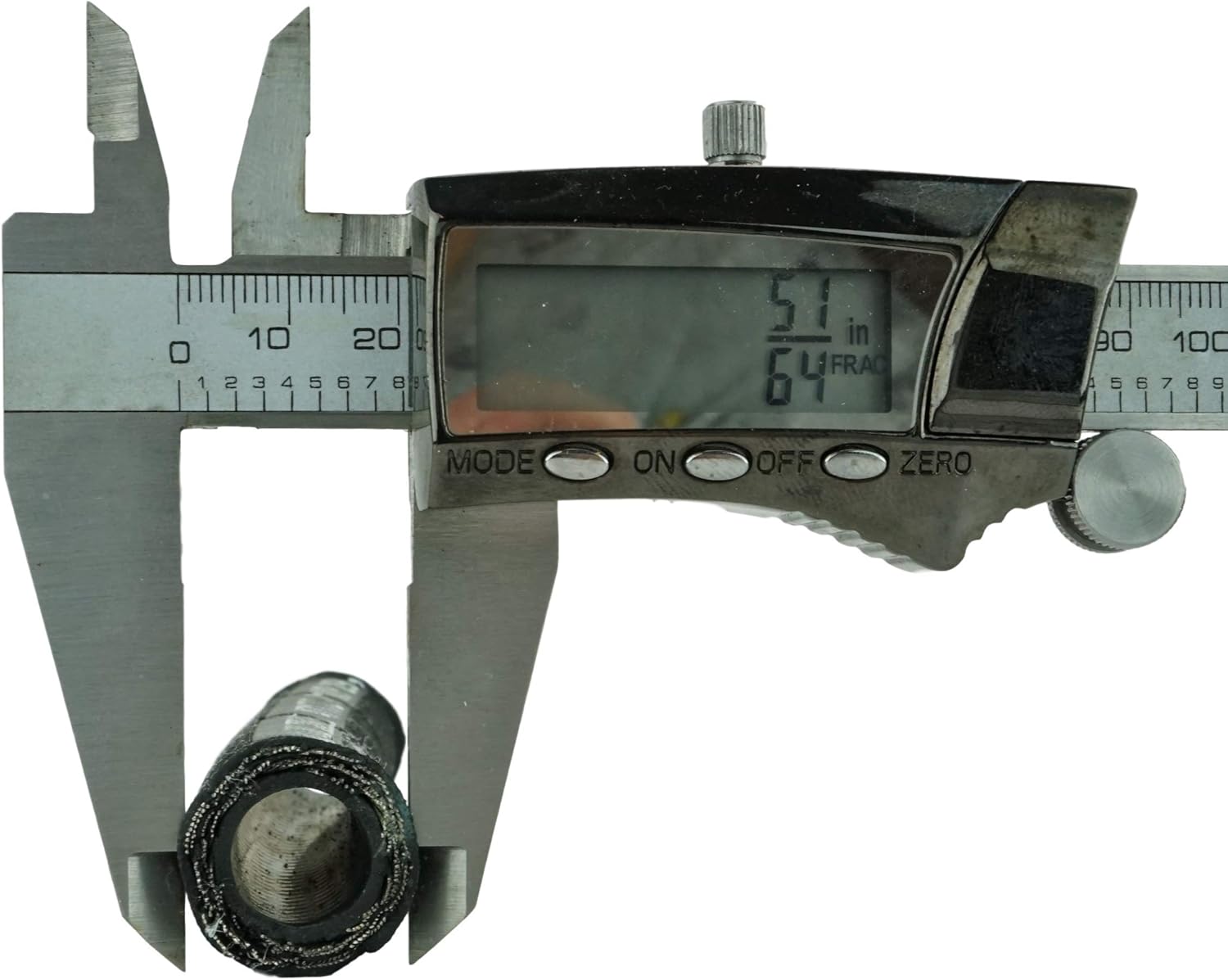

- Hose Inner Diameter: 1/2 inch, 12.5 mm Hose Outer Diameter: 0.810 inch, 20.4 mm Minimum Bend Radius: 3-1/2 inch, 90 mm
| Brand Name | Chenango Supply |
|---|---|
| Unit Count | 1.0 Count |
| Item Length | 6 Feet |
| Item Weight | 2.65 Pounds |
| Manufacturer | Chenango Supply |
| Material Type | Synthetic,Rubber,Steel |
| Maximum Pressure | 4000 Pound per Square Inch |
| Outside Diameter | 0.49 Inches |
| Item Dimensions L x W | 72"L x 0.5"W |
| Nominal Wall Thickness | 0.5 inch |
