1.5kw Er16 ER11 220v Water-Cooled Spindle Motor 80mm Diameter 4 Bearings(1.5kw ER16 220V)
Product details
| Management number | 211304370 | Release Date | 2026/04/04 | List Price | $250.68 | Model Number | 211304370 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

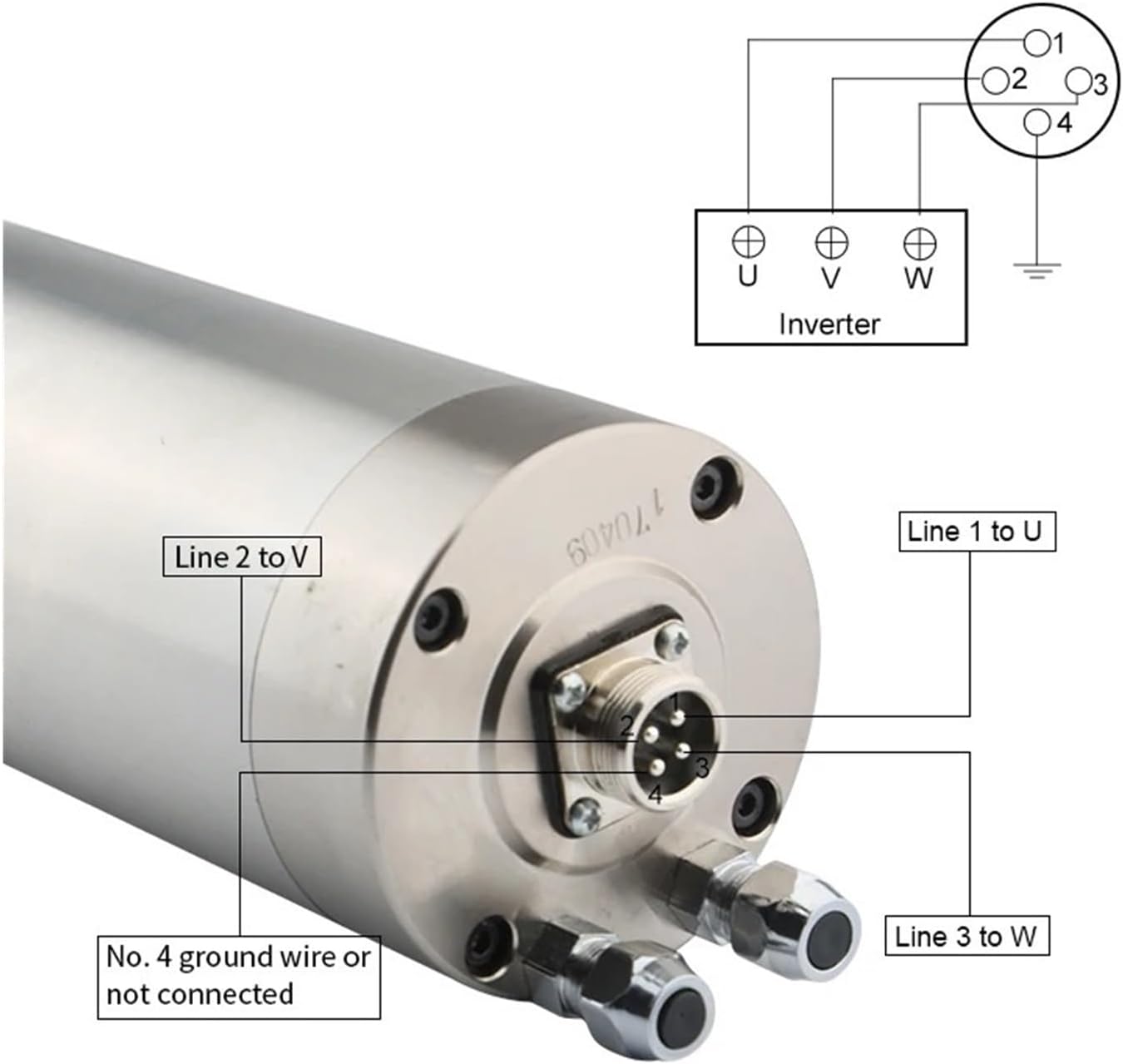

MandrelsMiddle body diameter: 80mm;Speed regulation method: Through the three-phase output inverter, adjust the inverter frequency to change the spindle speed.Cooling method: water coolingPower interface: An optional H20-4-pin waterproof aviation is available. The aviation plugs are labeled "1," "2," "3," and "4." Connect "1," "2," and "3" to the inverter (U, V, and W) respectively, and connect "4" to the inverter ground.Power: 1.5 kW (1 hp = 725 watts)Current: 8AFrequency: 400HzSpeed: 24000 rpmJump: 0.01mBearing type: H7002 P4*2; H7000 P4*2 (4 bearings)4 fully sealed angular contact ball bearingsChuck: ER11 and ER16Clamping knife diameter: 1mm, 2mm, 3mm, 3.175mm, 4mm, 5mm, 6mm, 6.35mm, 7mm, 8mm, 9mm, 10mm.Grease lubrication
- Mandrels
| Model | IPDBLBYL |
|---|---|
| Brand Name | IPDBLBYL |
| Model Name | IPDBLBYL |
| Manufacturer | IPDBLBYL |
