193X-1935X Trinocular Light and Dark Field Metallographic Microscope 4K HD Imaging Supports Measurement,Photography and Video Recording

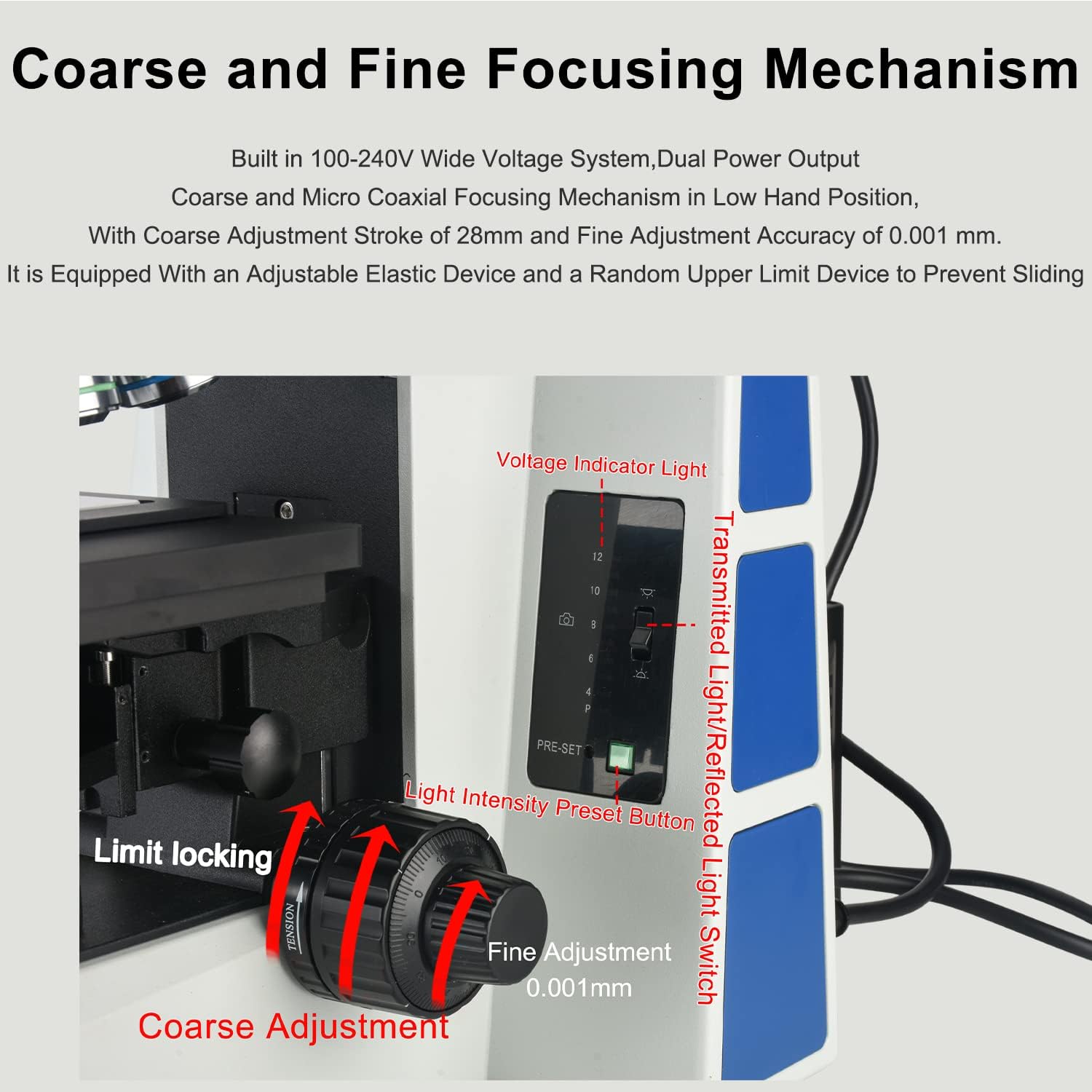

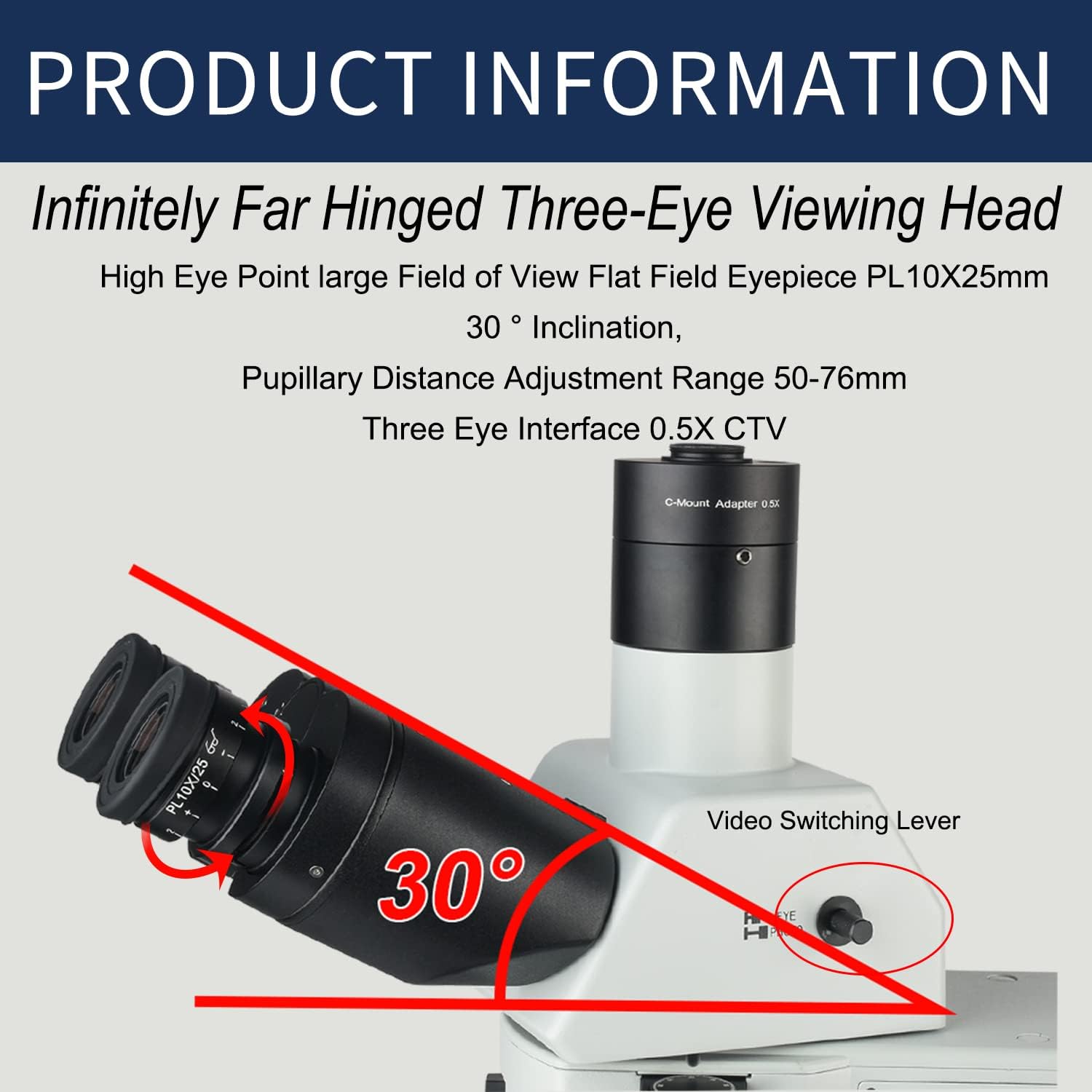

Model：KP-RX50M-4K Electronic Amplification：193X-1935X Optical Magnification：50X-500X Optical System：Infinite Achromatic Correction Optical Aystem (Semi Apochromatic) Eyepiece：High Eye Point Large Field of View Flat Field Eyepiece PL10X25mm Objective Lens： Bright and Dark Field Semi Vanishing Achromatic Objective MPlanFL 5X/0.15 BD DIC WD 13.5mm,NA=0.15 MPlanFL 10X/0.3 BD DIC WD 9mm,NA=0.30 MPlanFL 20X/0.5BD DIC WD 2.5mm,NA=0.50 MPlanFL 50X/0.8 BD DIC WD 1.0mm,NA=0.80 Observation Tube：30° Tilt,Positive Image,Infinitely Hinged Three-eye Viewing Cylinder,Pupil Distance Adjustment:50mm-76mm Objective Lens Converter：Bright and Dark Field Five-Hole Converter With DIC Slot Focusing System： Transparent and Reflective Dual Purpose Frame,Low Hand Coarse Micro Coaxial Focusing Mechanism,Coarse Adjustment Stroke of 28mm,Fine Adjustment Accuracy of 0.001 mm. It is Equipped With an Adjusting Elastic Device and a Random upper Limit Device to Prevent Sliding. Operating Platform Right-hand 4-Inch Mechanical Platform,Stroke 102mm×105mm,With Y-axis Locking Mechanism,With Light Barrier,With Glass Stage Plate Lighting System：Built-in 100-240V Wide Voltage System,Dual Power Output,Using Digital Dimming; With Light Intensity Setting and Reset Function,Reflection,Transmission Light Switch; Built-in Transmission Filter LBD, ND6, ND25 Light and Dark Field Reflector,With Variable Aperture Aperture,Field of View Aperture,Center Adjustable; With Light and Dark Field Lighting Switching Device;With a Color Filter Slot and a Polarizing Device Slot; Transreflection Lighting System,12V100W Halogen lamp Room; Condenser：Achromatic Condenser N.A.0.9,Variable aperture diaphragm,Center Adjustable Polarizer Polarizer Insert Plate,360°Rotating Analyzer Insert Plate Trinocular Interface：0.5X C-mount Interface Pixel：8.3 Million Pixels Output Method：HDMI、GigE Sensor：8.3M Sensor Size：1/1.8" CMOS Resolution Frame Rate：3840 X 2160,Photo Resolution 7680 X 4320 Frame Rate：60 Frame Pixel Size：2.0μmx2.0μm Color Adjustment：R、G、B Exposure：Auto/Manual White Balance：Auto/Manual Image Adjustment：Exposure Value,Saturation,Brightness,Contrast,Clarity,Reflector,Black and White,Flip,Reticle Capture：Can Capture Images and Videos of the Preview Screen Storage Mode：U Disk Storage,Can take Photos,Video,Measurement Gigabit Network Interface：Provide Professional Measurement Software,Through the Network Interface Connected to the Computer for Photo Measurement Packing List： 1、A pair of Eyepieces PL10X/25mm 2、0.5X Trinocular Interface *1 3、Objective Lens MPlanFL 5X/0.15 BD DIC WD 13.5mm,NA=0.15 *1 4、Objective Lens MPlanFL 10X/0.3 BD DIC WD 9mm,NA=0.30 *1 5、Objective Lens MPlanFL 20X/0.5BD DIC WD 2.5mm,NA=0.50 *1 6、Objective Lens MPlanFL 50X/0.8 BD DIC WD 1.0mm,NA=0.80 *1 7、Microscope Body *1 8、Light Box Power Cord *1 9、S-ANR *1 10、S-PO *1 11、Platform *1 12、4K Camera *1 13、Measuring Calibration Ruler *1 14、HDMI Line *1 15、Software *1 16、Gigabit Cable Note： 1、This Product Does not Contain a Display; 2、DIC Interference Tablets of this Product can be Purchased According to Customer Requirements; 3、This Product is HDMI/Network Port Output, through the HDMI Cable Directly Connected to the Monitor,or the Network Cable Connected to the Computer For use,The Monitor and Computer can be Output at the Same Time.The Product Has Two USB Ports,One For Connecting the Mouse and one For Connecting the USB Flash Drive.Measurements can be Made Directly on the Display Using the Mouse.Save Images and Excel Dat.

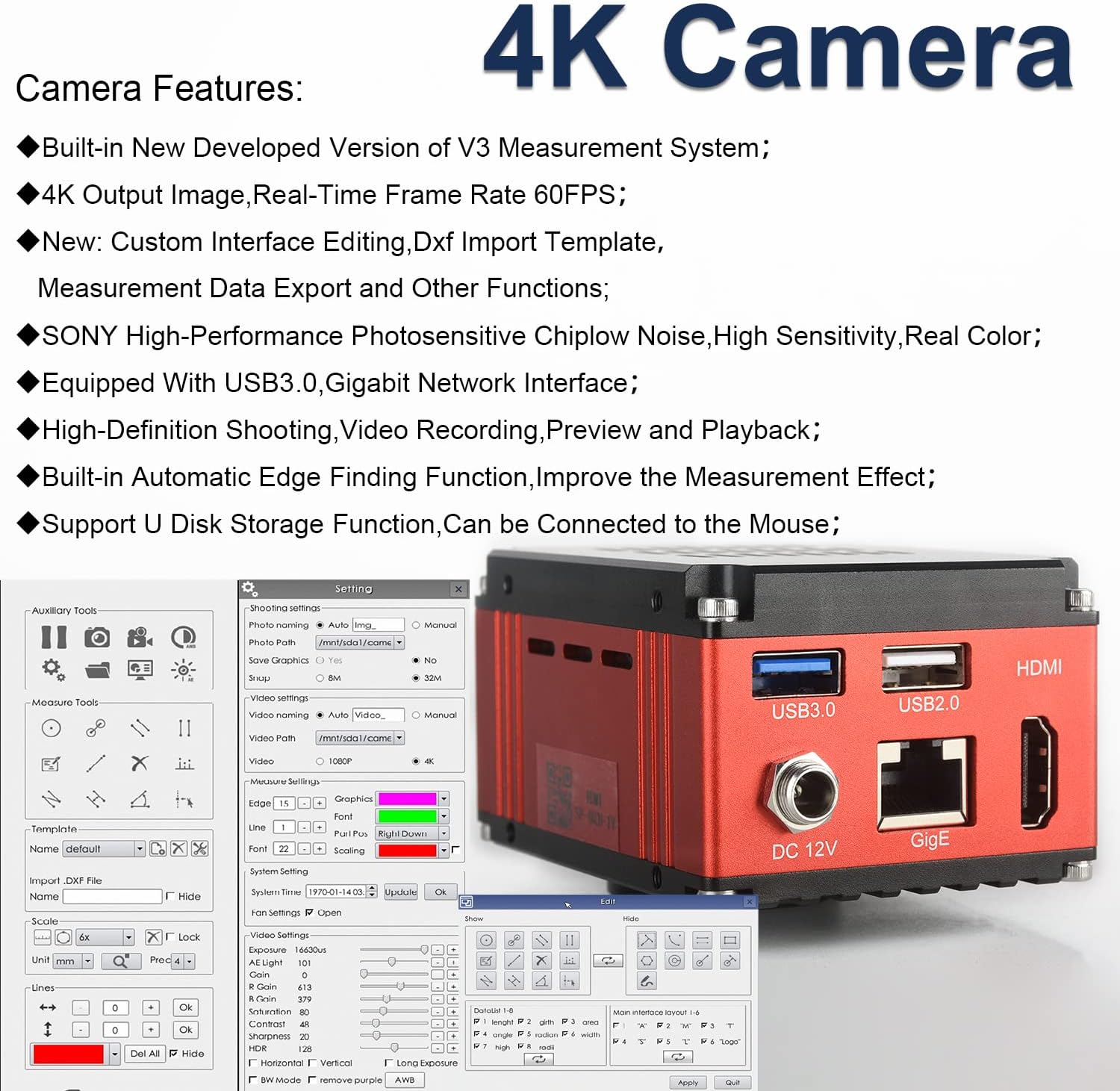

• High-Performance light-Sensitive Chip,Low Noise,High Sensitivity,and True Color;
• HD Photography,Video Recording and Measurement;

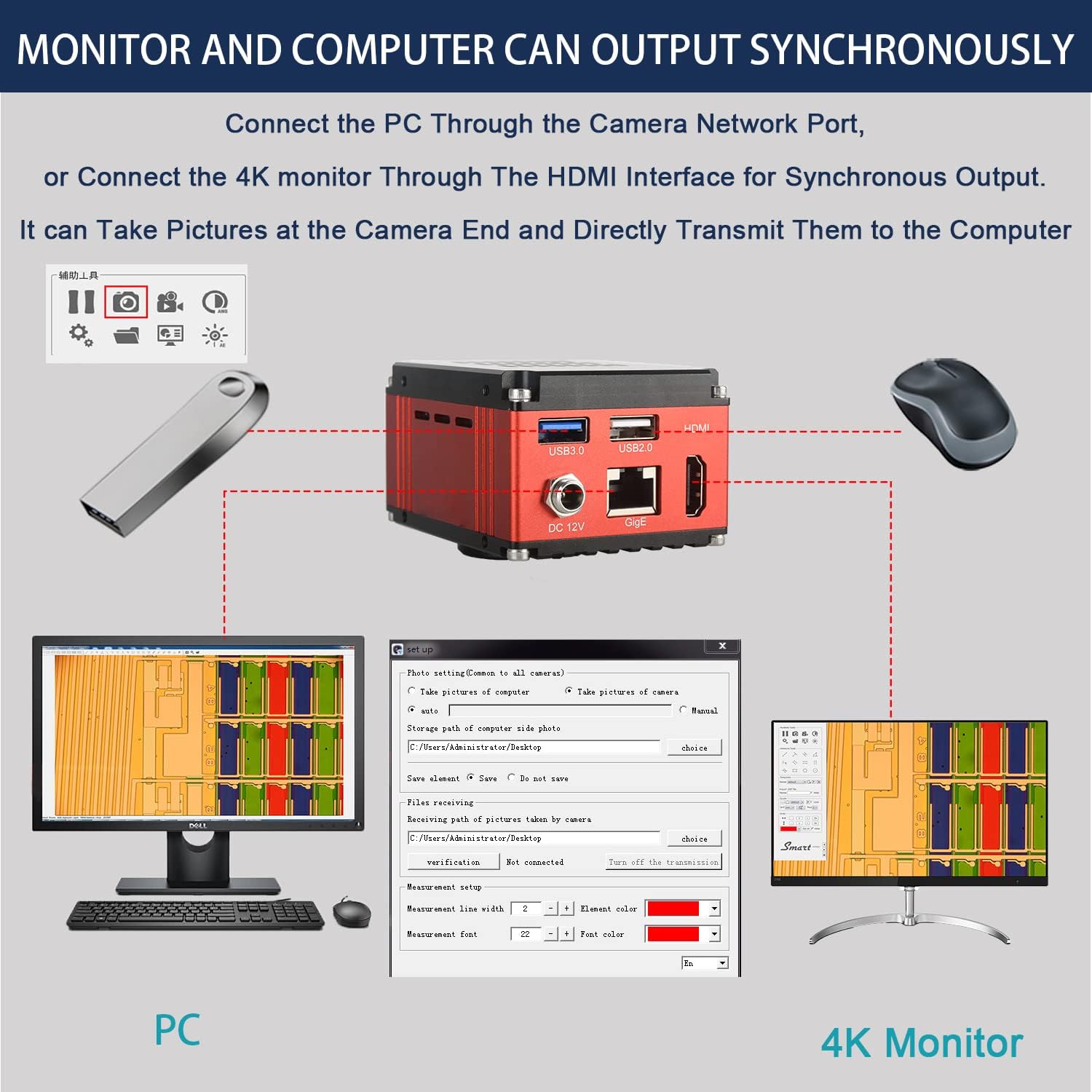

• The Network Port Transmits Images in Real Time,Extends the Migration Algorithm to the PC Host,and Interacts in Real Time;
• Support Mouse and Keyboard Operation (Wireless);
• Measurement Function:Point Spacing,Point line Spacing,Line Spacing,Circle Center Distance,Arc, Circle,Angle Rectangle and Polygon Measurement,Calibration Function,Automatic Edge Searching.
• The commodity price does not include tariff.
