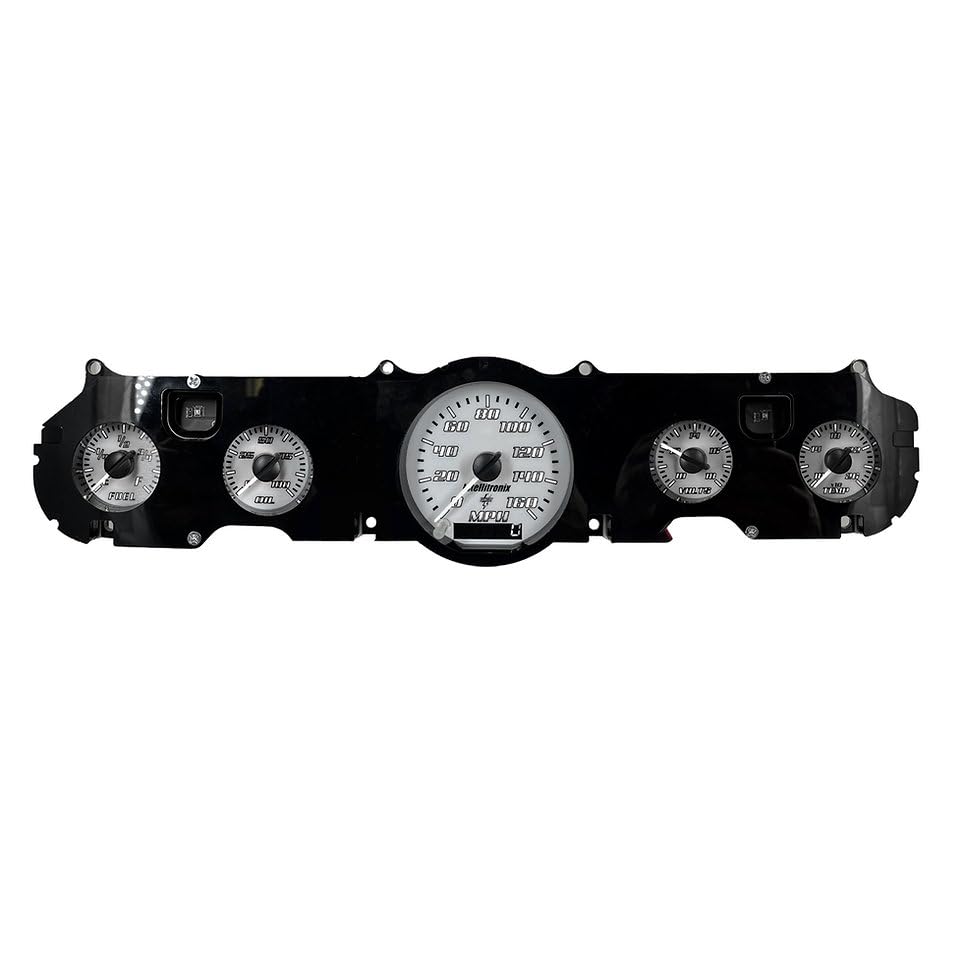

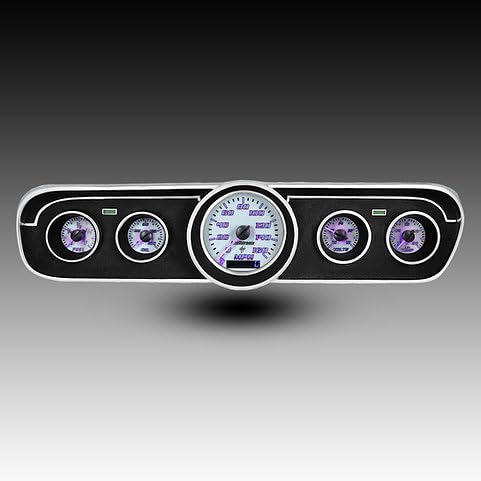

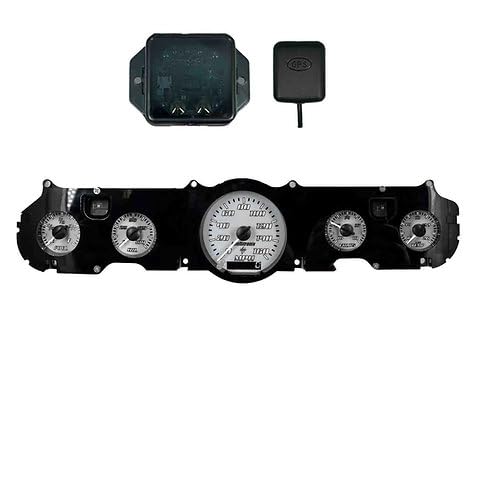

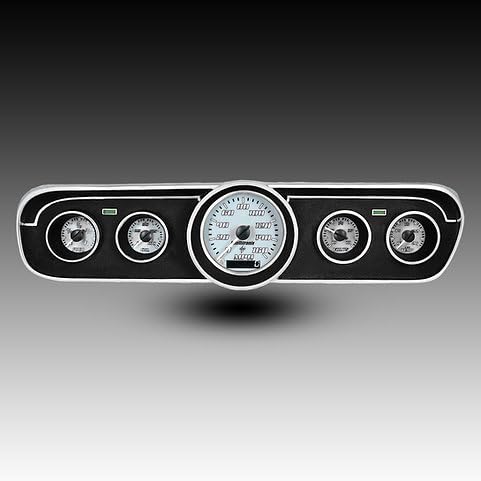

1965-1966 Ford Mustang Analog Gauge Cluster Replacement, White Faceplate, GPS Speed, Water & Oil Press Sending Units Included (Teal)
Product details
| Management number | 215537561 | Release Date | 2026/04/12 | List Price | $237.60 | Model Number | 215537561 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Upgrade your pony with the clean, sleek, classic design of a 1965-1966 Ford Mustang Direct Fit Analog Gauge Panel with our white polycarbonate subsurface with brush stroke finish that makes it an unforgettable show stopping dash. This is truly a work of art. Available in Blue, Green, Orange, Purple, Red, Teal & White LEDs.Speedometer reads up to 160 MPH includes one button calibration, regardless of tire size, gear ratio, or transmission, odometer, trip meter, high speed recall, 0-60 time, and ¼ mile elapsed time, all with the push of a button!
- Voltmeter with high and low voltage reads from 10.0 to 18.0 and no sending unit required.
- Oil Pressure Gauge reads from 0-100 psi. Oil pressure sender included.
- Water Temperature Gauge reads from 100 to 260 °F range with sending unit S8013 included.
- Fuel Gauge is user-programmable fuel selector to work with Ford and aftermarket 240-33 ohm industry standard fuel senders.
- Includes water temperature sender, please add a note at checkout if you need a 3/8" bushing because we send the more common 1/2" bushing--otherwise, you will have to supply the bushing on your own, and oil pressure sender.
| Brand Name | Intellitronix |
|---|---|
| Item Weight | 4 Pounds |
| Manufacturer | Intellitronix |
| Material Type | Polycarbonate (PC) |
| Item Dimensions | 15 x 8 x 4 inches |
| Included Components | BEZEL NOT INCLUDED | All required sending and sensor units are included |
