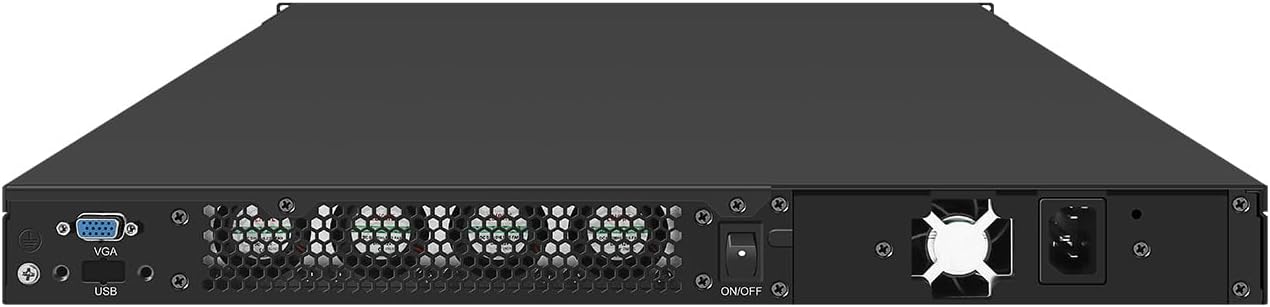

1U Firewall Appliance XEON Server with IPMI, OPNsense, VPN, Dual E5 2697 V4 CPU, RJ66, C612, 2 x 1GbE LAN, 4 x X710 SFP+, 8 x 2.5GbE LAN, 0 RAM, 0 Storage, Barebone No System
Product details
| Management number | 212363090 | Release Date | 2026/04/06 | List Price | $36.00 | Model Number | 212363090 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Please note: This is a barebone only. A system memory, a storage drive and an operating system are needed to complete this system Model Number: HUNSN RJ66 CPU: 2 x Intel Xeon Processor E5-2697 v4 45M Cache, 2.30 GHz AES-NI Supported: Yes Chipeset: Intel PCH C612 Memory: 7 x ECC/ECC-REG DIMM DDR41600/1866/2133/2400 MAX 256G, each slot supports up to 32G,a single CPU supports up to 128G, dual CPUs support up to 256G memory Storage: 1 x mSATA SSD, 1 x CF, 2 x M.2 NVMe PCle 3.0 x4 2280, 2 x 2.5/3.5 Inch SATA SSD/HDD I/O Interface: Console, IPMI, 2 x USB2.0, 2 x I210 / I211 LAN, 4 x X710 SFP+, 8 x 226-V LAN, VGA Aspeed AST2400,Power Switch, AC Socket Expansion: 3 x PCI-E x8 / 1 x PCI-E x16, 1 x Mini PCIE slot for WiFi Chassis: 1U 19 inch cabinet, rackable, with mounting bracket ears, wall hanging, foot pad Network Card: 1 x RTL-8211 E IPMI, 2 x Intel 1GbE I211/I210 LAN, 4 x SFP+ model is 10GbE X710, 8 x 2.5GbE 226-V LAN WAN-LAN Throughput: Throughput through 1 gigabit nic from lan to wan forwarding speed is 1GbpsThroughput through 10 gigabit optical from lan to wan forwarding speed is around 5Gbps or more Cooling System: The processor uses the ball silent cooling fan to ensure the long time work and stable cooling Power: 800W 100-240V 50Hz/60Hz Size: 440 x 600 x 45mm Weight: 8.7kgs Packing List: HUNSN RJ66 firewall appliance, rackable ears, power cord, warranty card System Compatibility: 5.10.x and above core-based freebsd router systems, linux distros, or win.os supported. UEFI support onlyCompatibility:firewalls for pfsense, opnsense and other popular open-source software solutions
- HUNSN RJ66 equipped with intel xeon processor e5-2697 v4, compatible with many freebsd based router systems, linux distros, or win.os supported, easy configuration and management, support intel aes new instructions
- Please note, this is a barebone only. A system memory, a storage drive and an operating system are needed to complete this system
- Standard 1u, atx power, with power cord, make sure to use a big brand memory and ssd with quality assurance, ready to run straight out of the box
- Designed with console, ipmi, 2 x usb2.0, 2 x i210 / i211 lan, 4 x x710 sfp+, 8 x 226-v lan, vga, power switch, ac socket, size at 440 x 600 x 45mm
- Original industry network motherboard, low power consumption, low heat, use dedicated turbo silent cooling fan to ensure long-term operation
| Brand | ANDAQI |
|---|---|
| Color | Black |
| RAM Type | SODIMM |
| Model Name | RJ |
| Style Name | E5 2697 V4 |
| Item Weight | 8.7 Kilograms |
| Manufacturer | Shen Zhen Shi An Da Qi Ke Ji You Xian Gong Si |
| Model Number | RJ66 |
| BuiltIn Media | Rackable ears, power cord, warranty card |
| Cooling Method | With Fan |
| Item Type Name | Firewall Appliance |
| Processor Brand | Intel |
| Processor Count | 18 |
| Processor Speed | 3.60 |
| Total Usb Ports | 2 |
| CPU Model Number | E5 2697 V4 |
| Processor Series | Intel Xeon |
| Processor Socket | FCLGA2011 |
| Compatible Devices | Gaming Console, Personal Computer, Printer, Security Camera, Smart Television, Smart Thermostat, Smartphone, Tablet |
| Hardware Interface | Ethernet |
| Additional Features | Access Point Mode, Alexa Compatible, Beamforming, Guest Mode, Internet Security, LED Indicator, Parental Control, QoS, Remote Access, USB Print Server |
| Hard Disk Interface | Solid State |
| Graphics Coprocessor | Aspeed AST2400 |
| Graphics Description | Dedicated |
| HumanInterface Input | Pinyin Keypad |
| Wireless Compability | 802.11ac |
| Hard Disk Description | SSD |
| RAM Memory Technology | DDR4 |
| Memory Slots Available | 7 |
| Connectivity Technology | Ethernet |
| Graphics Card Interface | PCI Express |
| Memory Storage Capacity | 256 GB |
| Ram Memory Maximum Size | 256 GB |
| Specific Uses For Product | Personal, Business, Gaming, Education, Industry, Office, Multimedia |
