21801 4k 60hz 8x1 HDMI Switch / 1X8 eARC Splitter Two in one w/Optical and 3.5mm Audio Extractor
Product details
| Management number | 212184211 | Release Date | 2026/04/06 | List Price | $36.00 | Model Number | 212184211 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Specifications * With 8*HDMI input, 1*HDMI output, 1*SPDIF output, 1*Optical output, 1*3.5mm jack output; * Support HDCP2.2, HDR10; * Support 4K@60Hz/4K@30Hz/1080P/1080I/720P, 3D; * Support video format: 24/30/36 bit deep color * Support audio format: DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD * Maximum bandwidth: 600MHz * Max baud rate: 6bps / channel * Support HDMI signal switching, audio return signal distribution; * Support 3D video format; * Support ARC/EARC (power amplifier, sound bar etc.); * Support EARC splitter function, can return EARC,ARC signal to 8 amplifiers or Sound bar; * Support audio return only through HDMI signal source not through the display device; * Support 3.5 stereo, coaxial, fiber audio output. * Under 8x1 HDMI switch mode, support EDID dip switch; * Dimension (L x W x H): 226x110x25 (mm) * Product net weight: 512g
- XOLORspace 21801 is a 8x1 HDMI Switch / 1X8 eARC splitter two in one. It has two working modes.

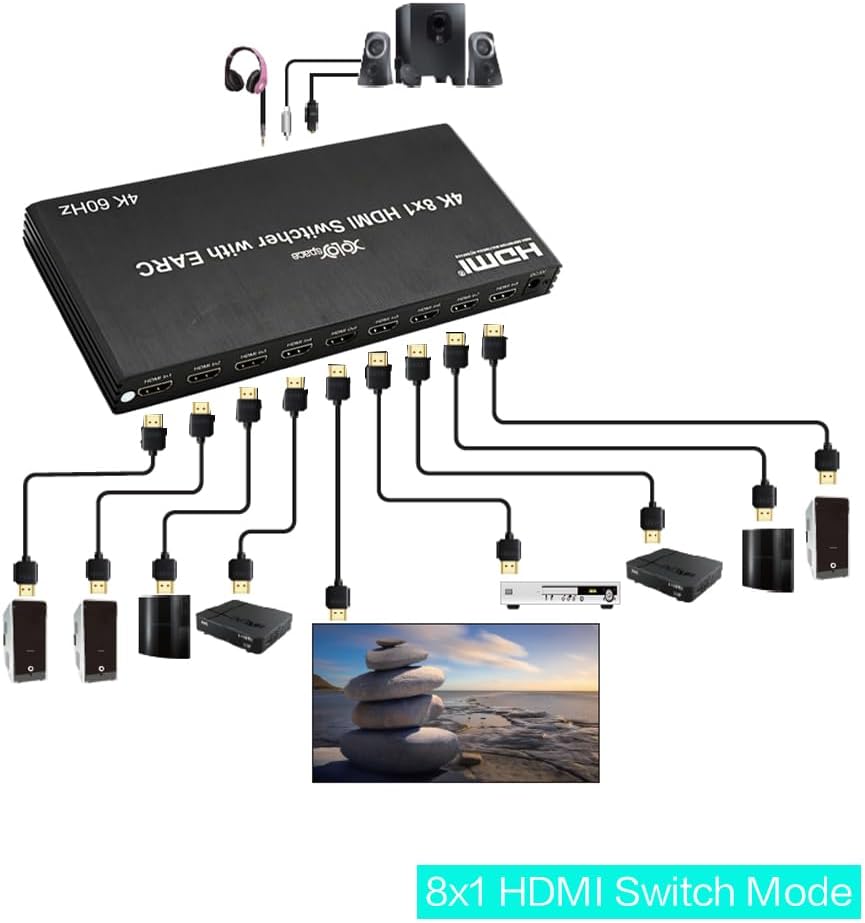

- Under HDMI switcher 8x1 mode, it selects any of the 8 4K 60HZ 4:4:4 HDR HDMI sources to one HDMI sink. Supports 4K/60Hz, 4K/30Hz, 1080P, 1080I, 720P pass through
- Under HDMI switcher 8x1 mode, it selects any of the 8 4K 60HZ 4:4:4 HDR HDMI sources to one HDMI sink. Supports 4K/60Hz, 4K/30Hz, 1080P, 1080I, 720P pass through
- Compatible with HDMI 2.0, HDCP2.2 and HDR10. Supports HDMI resolution up to 4k 60hz YCbCr 4:4:4.
- With audio extractor. Supports 3.5 stereo, coaxial, fiber audio output. Can return TV audio to 3.5 stereo, coaxial, fiber audio output
| UPC | 798945408585 |
|---|---|
| Brand | XOLORspace |
| Cable Type | Coaxial, HDMI |
| Item Weight | 512 Grams |
| Manufacturer | xolorspace |
| Compatible Devices | Television |
| Warranty Description | 1 year Manufacturer |
| Item Dimensions D x W x H | 4.33"D x 8.9"W x 1"H |
| Connector Type Used on Cable | HDMI |
