24 Inch 600mm 225lbs/1000N 0.6"/sec High Speed 12V Linear Actuator IP65 Waterproof Linear Motion Actuator with Mounting Brackets
Product details
| Management number | 211204580 | Release Date | 2026/04/04 | List Price | $36.00 | Model Number | 211204580 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- 【Specification】Stroke Length:24" (600mm), Retracted length: 30" (750mm), Extended Length:54" (1350mm); No load travel speed:0.6"/sec (15mm/s); Maximum load: 225lbs (1000N); Maximum current draw: 4amps; Maximum current draw:5A; Working power should reach 40W-50W.
- 【Stable & Durable】High quality aluminum alloy and four corner fixation base design make linear actuator more stable; Built-in limit switch, automatically switch off when linear actuator is fully extended to avoid the motor idling; Self-locking function, linear actuator can be stopped at any position in the stroke;

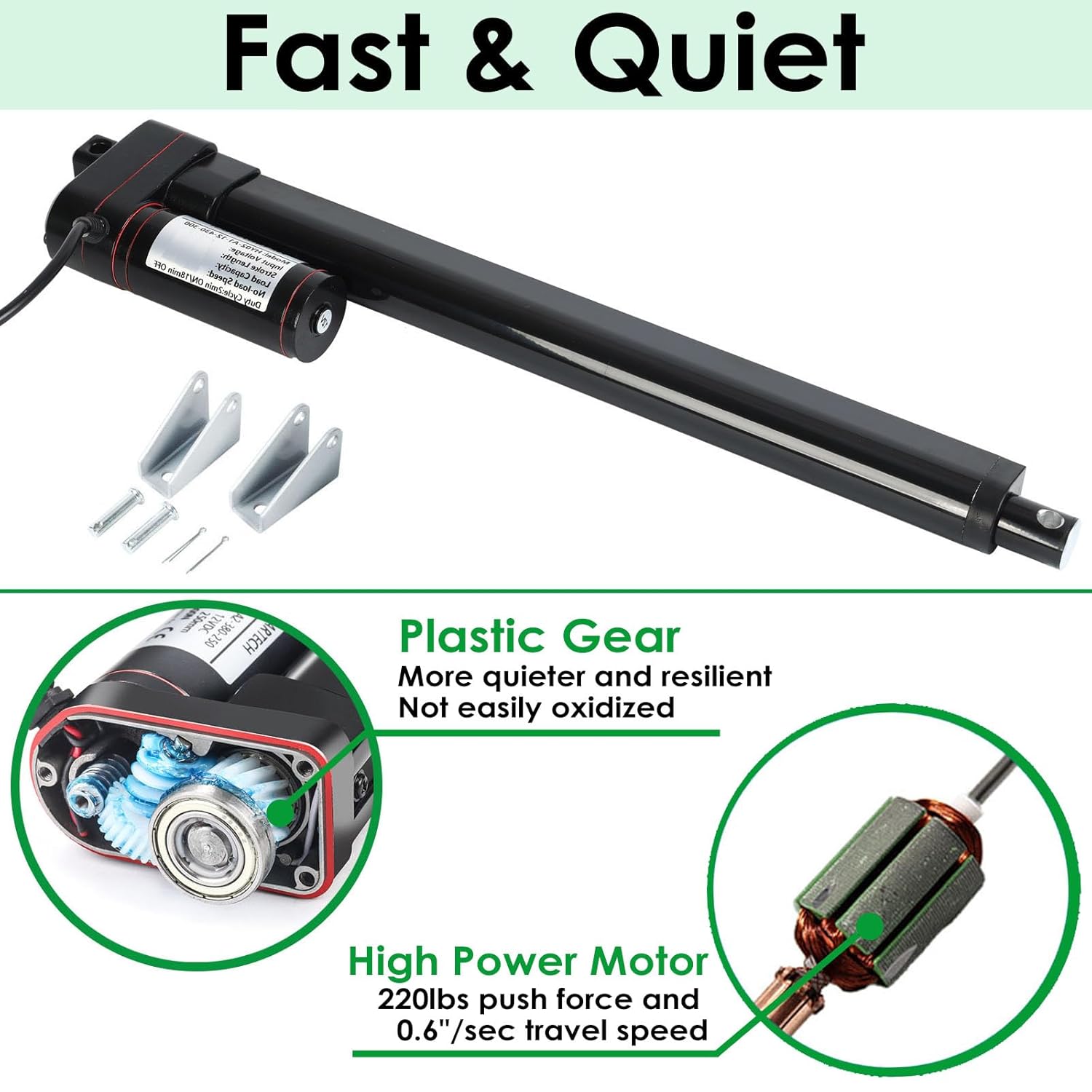

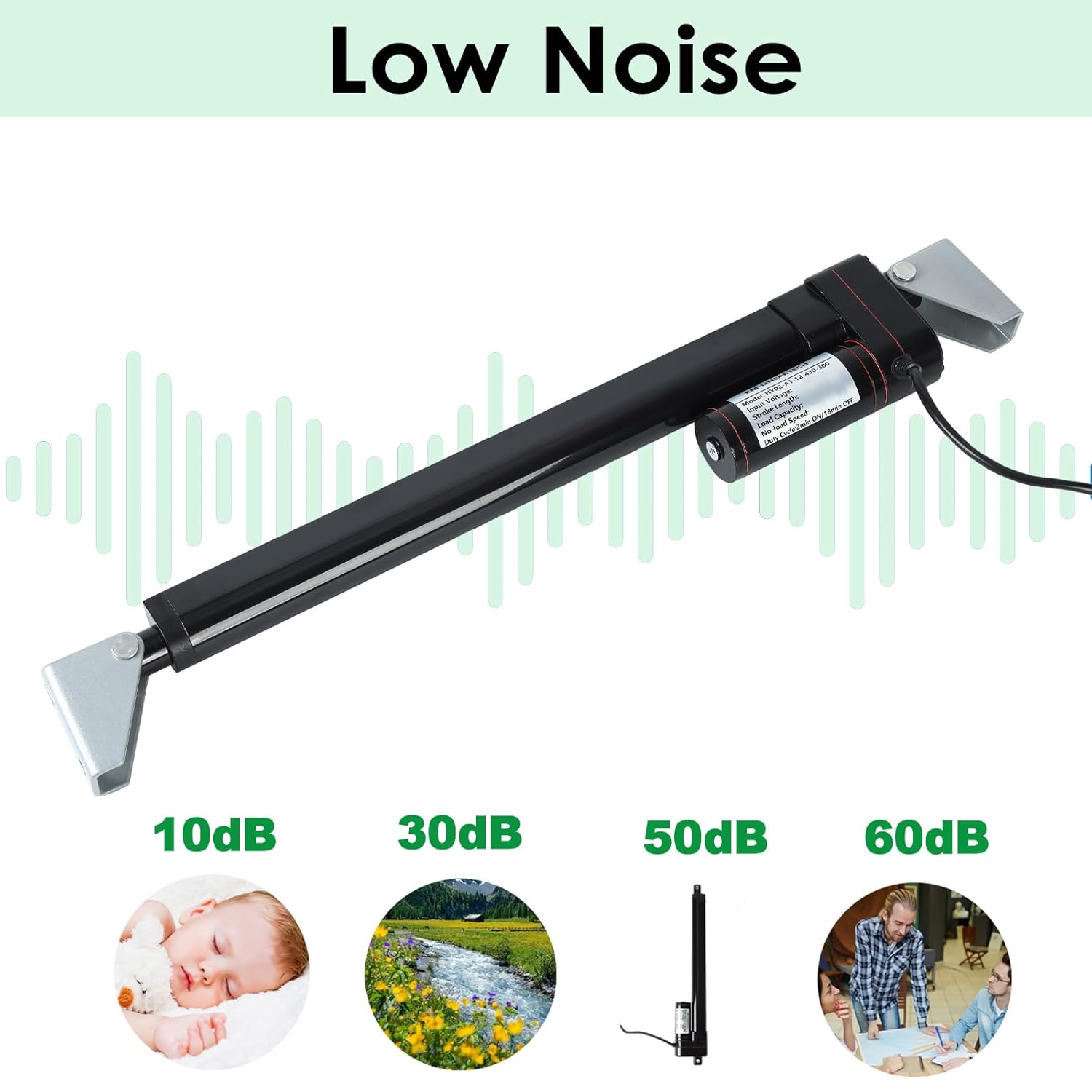

- 【Fast & Quiet】KM-LINEARTECH 225lbs linear actuator is equipped with a high-power motor which make the travel speed up to 0.6"/sec. The linear actuator adopts plastic gears, more quiet and durable,not easy to oxidize, noise below 50dB.

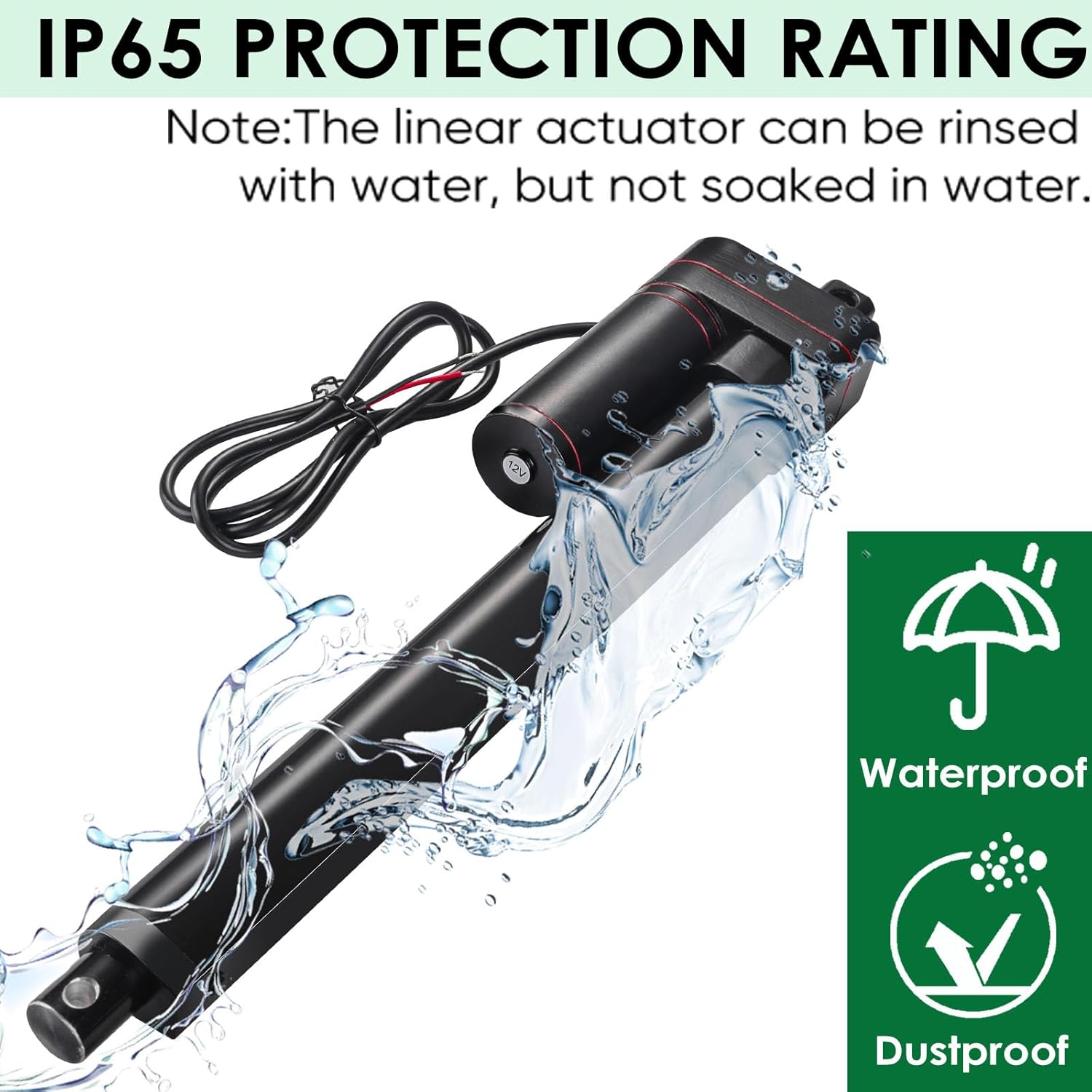

- 【Wide Application】IP65 rated protection sealed against dust, water and corrosion suitable for outdoors use; It can be widely used in many industries, such as electric lifting system, massage sofas, recliners, TV lifters, lifting tables, electric window openers, DIY pet feeder, solar tracker etc.
- 【Package Included】1PC DC 12V 225lbs/1000N Linear Actuator and 2PCS Mounting Brackets.
| Item Weight | 4.4 pounds |
|---|---|
| Manufacturer | KM-LINEARTECH |
| Product Dimensions | 24 x 0.24 x 0.4 inches |
