35BYJ412 DC12V Stepper Motor 4-Phase 5-Wire 35-Step Gear Motor Low Noise High Forward and Reverse Gear Motor
Product details
| Management number | 211447028 | Release Date | 2026/04/04 | List Price | $21.47 | Model Number | 211447028 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

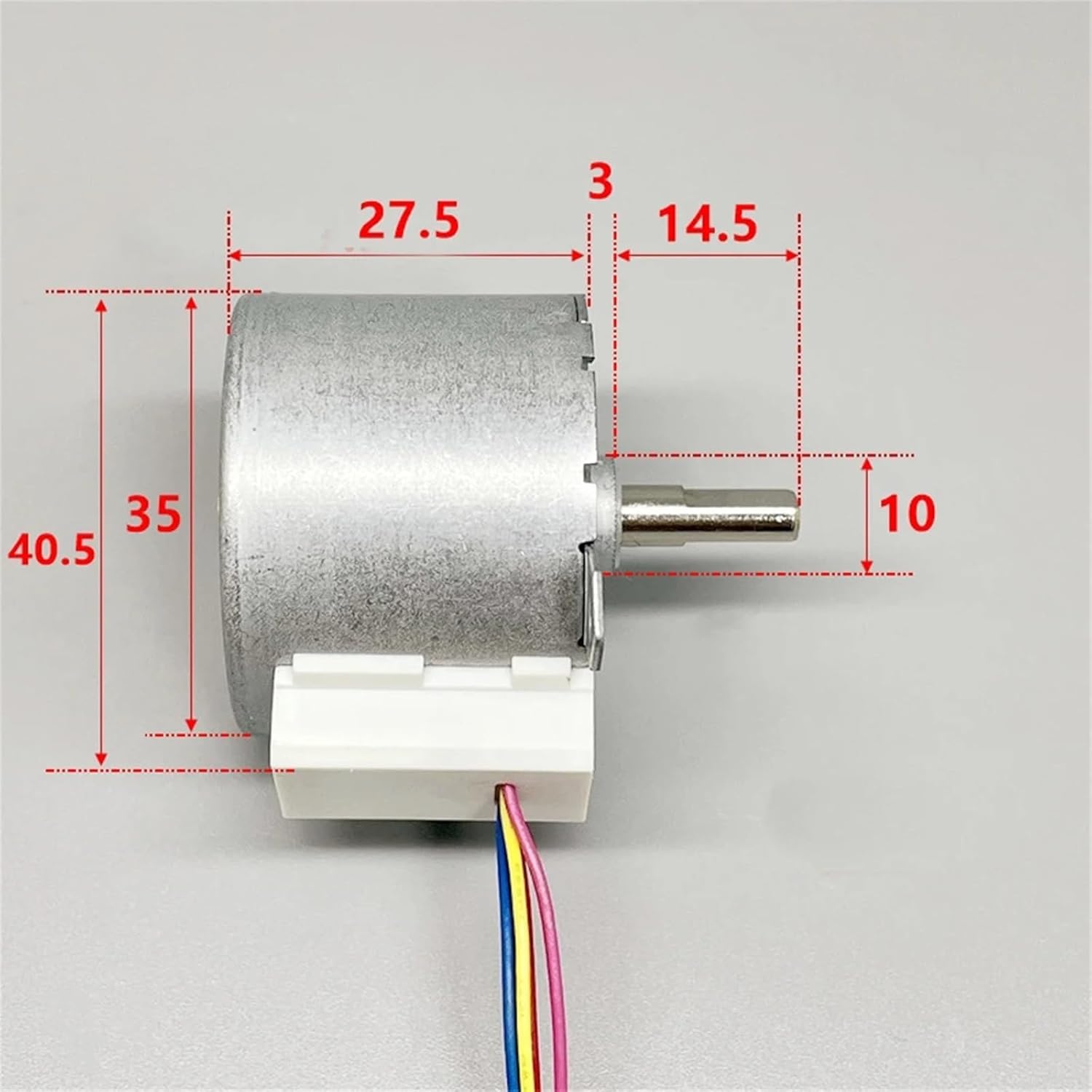

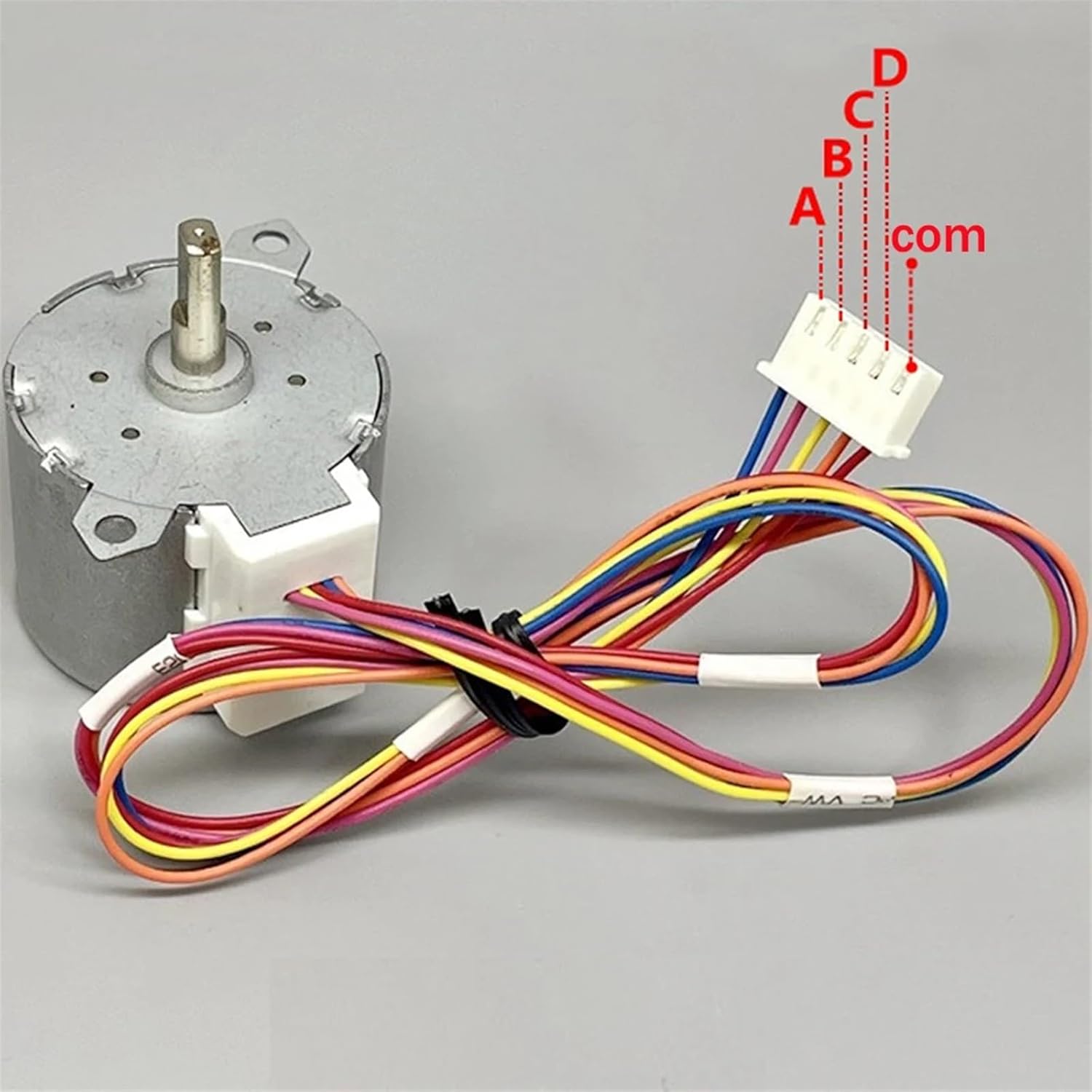

Motors35BYJ412 Four Phase Five Wire 35-step Gear Motor DC12V Stepper Motor Low Noise High Forward and Reverse Gear MotorSpecifications:Model: 35BYJ412Product name: 35 step gear motorWiring: four phase five lines (red line is the common end, blue/pink/yellow/orange line is ABCD respectivelyResistance value: The resistance value between the common end and any line is 31.2 ohmsThe resistance of any two lines of ABCD is 62.4 OhmRated voltage: 12 voltsLine length: 45 cmFeatures: low noise, high , reversibleCommon uses: intelligent toilet, toilet, body cleaner, air circulation fan, intelligent fan etcNote: This type of motor requires a special controller/drive board to driveNote: 1.Due to the light and screen difference, the item's color may be slightly different from the pictures.2.Please allow 1mm-1cm differences due to manual measurement.Package Includes:1x Stepper Motor==========
- Motors
- 35BYJ412 DC12V Stepper Motor 4-Phase 5-Wire 35-step Gear Motor Low Noise High Forward and Reverse Gear Motor
| Model | FTMSZLHYL |
|---|---|
| Brand Name | FTMSZLHYL |
| Model Name | FTMSZLHYL |
| Manufacturer | FTMSZLHYL |
