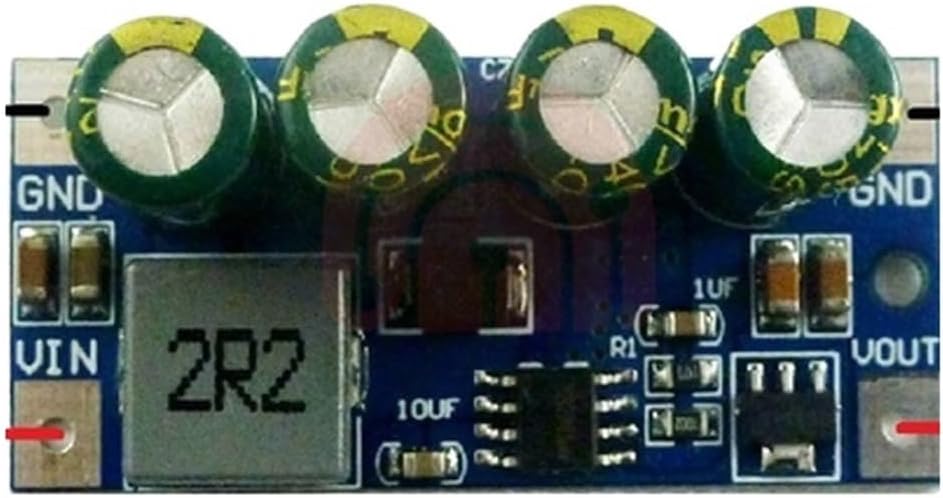

60W DC 3.7V-18V to 5V 6V 9V 12V 15V 19.5V Step-Up Boost DC DC Converter Molude for lead acid Car cigarette lighter LED(19.5V)
Product details
| Management number | 212638820 | Release Date | 2026/04/06 | List Price | $12.53 | Model Number | 212638820 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Modules60W DC 3.7V-18V to 5V 6V 9V 12V 15V 19.5V Step-Up Boost DC DC Converter Molude For Lead Acid Car Cigarette Lighter LEDFeatures:1: Over temperature shutdown, input undervoltage protection and short circuit protection2: Simple and easy wiring3: Up to 94% efficiency (usually 75%-91%)4: DC DC Boost converter module operating frequency 600KHZ5: Easy installation, simple operation, stable performanceDescription:DC DC Boost converter module operating frequency 600KHZ.Up to 94% efficiency (usually 75%-91%)Quiet current: about 1MAOver temperature shutdown, input undervoltage protection and short circuit protection.Operating temperature range: -40~+85 degrees CelsiusStorage temperature range: -65~+150 degrees CelsiusSize: 45*21*15mmWeight: 9gNotes:This is a high-power boost module. Please pay attention to the following when using it:The power supply must be sufficient. If the module needs to output 30W power, the power supply must be greater than 40W.The power supply and boost module leads must be thick enough (can pass 10A) and soldered well.Use a multimeter to directly measure the "VIN GND" port to determine whether the power is sufficient. If the voltage is 1V lower than the power supply, it means that the power supply is insufficient or not well connected.The input voltage cannot be greater than the maximum input rangeThe output power cannot be greater than the maximum load for a long timeThe input power must be greater than the output power because the power consumption of the module itselfPackage Included:1 DD0424TA 60W high-power DC-DC boost module(5V/6V/9V/12V/15V/19.5V optional)==========Hign-concerned Chemical : Noneis_customized : YesOutput Current : Maximum 5AOutput Frequency : DC-DCModel Number : DD0424TAOutput Power : 1 - 50WType : DC/DC ConvertersWeight : 9gSize : 45*21*15mmOutput Type : SINGLEOrigin : Mainland Certification :
- Modules
- 60W DC 3.7V-18V to 5V 6V 9V 12V 15V 19.5V Step-Up Boost DC DC Converter Molude for lead acid Car cigarette lighter LED
| Size | One Size |
|---|---|
| Color | 19.5v |
| Item Weight | 1.76 ounces |
| Part Number | JZXUPTUVI |
| Manufacturer | JZXUPTUVI |
| Item model number | JZXUPTUVI |
| Batteries Required | No |
| Product Dimensions | 0.39 x 0.39 x 0.39 inches |
| Item Package Quantity | 1 |
