7.5:1-100: 1 Gear Ratio RV90 Worm Gear Reducer NMRV090 19mm 24mm 28mm Input Hole for 0.55KW-4KW Motor

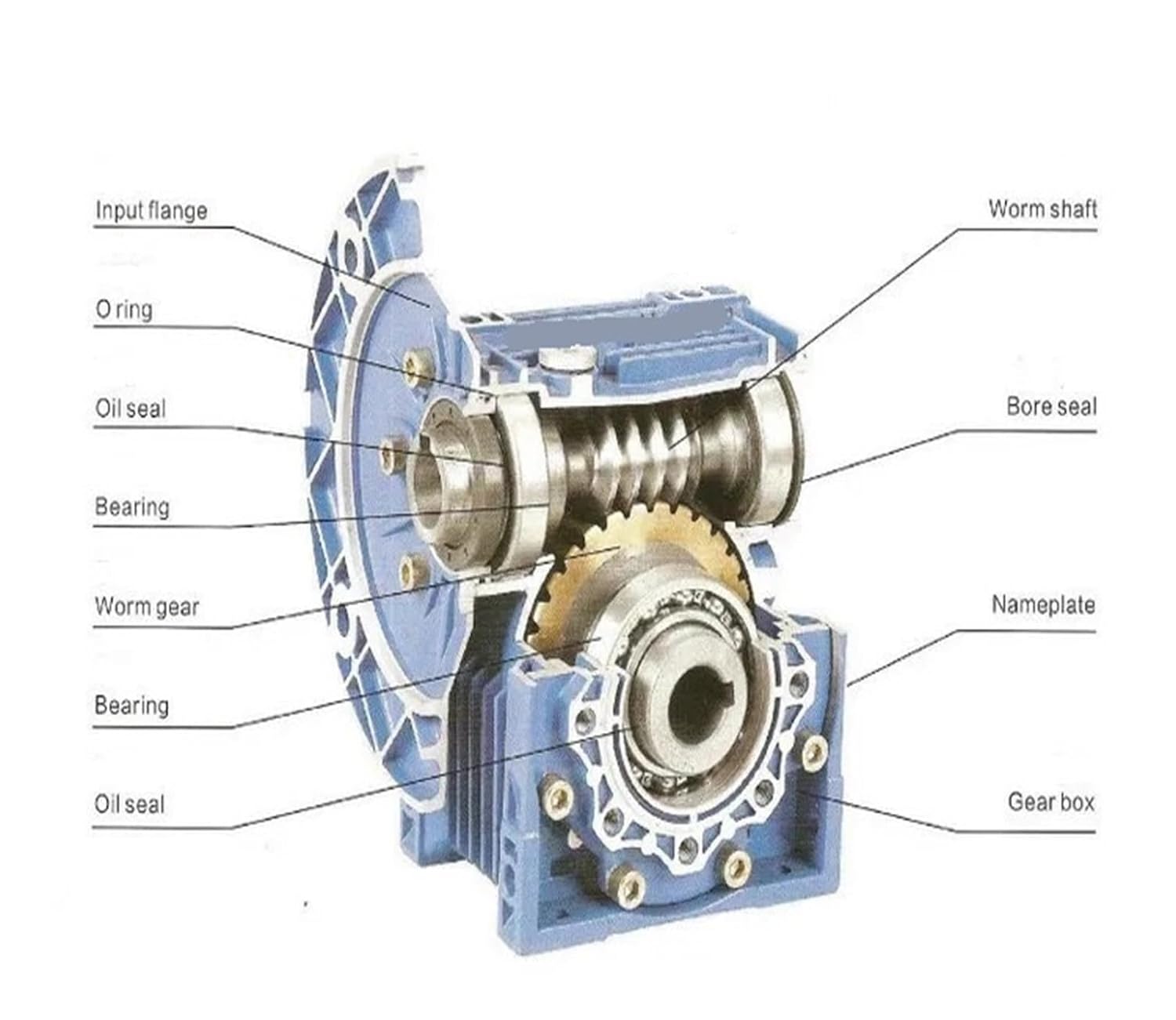

7.5:1-100: 1 Gear Ratio RV90 Worm Gear Reducer NMRV090 19mm 24mm 28mm Input Hole For 0.55KW-4KW MotorRV90 reducer * 1PCNote:This link is for gear ratio of 7.5:1,10:1,15:1,20:1,25:1,30:1,40:1,50:1,60:1,80:1 and 100:1.Flange type: several types for selection, 100/112B5, 100/112B14, 90B5, 90B14, 80B5, 80B14.We also have NMRV25/30/40/50/63/75 Models, if need, contact us please.Color: silver and blue (sometimes just one color)Material for worm reducer:housing:aluminum alloy die castWorm gear: Nodular cast iron and bronzeFeature ofworm reducer gearbox:1) High quality aluminum alloy die cast gearbox2) High accuracy worm gear and worm shaft3) Less noise and lower temperature increase4) Easy mounting anc connection, high efficiencyThe structure of the NMRV090worm reducer:The mounting dimension of worm reducer NMRV090:Torque : 101N.m-458N.mOutput Power : 0.55KW-4KWIEC Flange : 100/112B5, 100/112B14, 90B5, 90B14, 80B5, 80B14Input Speed : About 1500rpmspeed ratio : 7.5,10,15,20,25,30,40,50,60,80,100:1Output Speed : Varies with changes in speed ratiooutput hole diameter : 35mm
