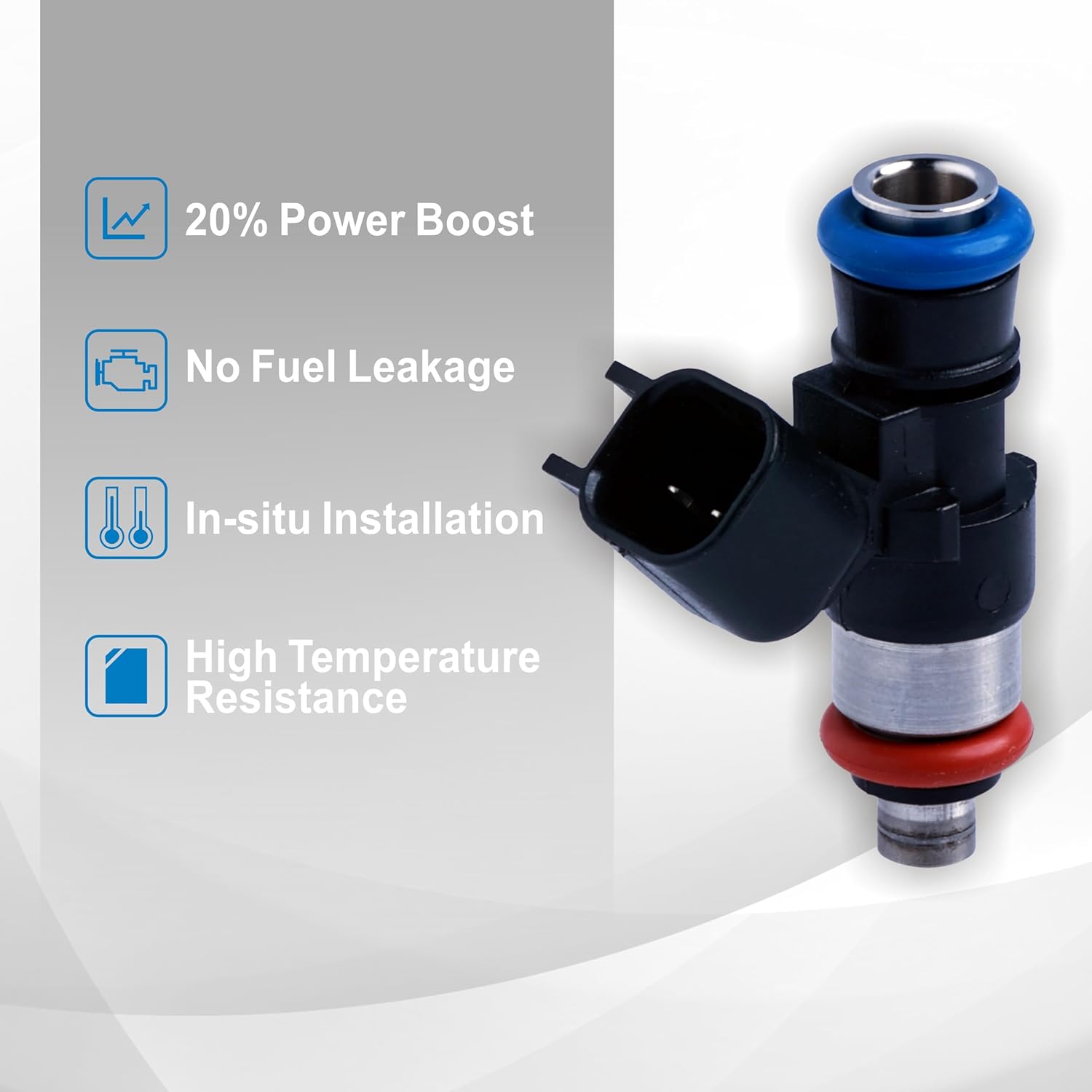

8-Pack 850cc High-Performance Fuel Injectors (80lb) - EV6/EV14, Compatible with GEN4 LS3 LS9 LSA LS7 LS4, E85 Ready, High Impedance

This 8-piece set of 850cc (80lb) car fuel injectors is precisely engineered for LS3, LS7, LSA, LS4, LS9, and L99 engines. Utilizing INAT Auto Parts' advanced manufacturing, these 100% brand new injectors ensure minimal flow deviation, delivering superior performance, increased power, and improved throttle response through precise fuel control and atomization. Each injector, crafted from durable metal and composite plastic with a basket filter, undergoes rigorous leak, flow, pressure, and spray testing. Key specifications include a 9 Ohm high impedance coil, 80% duty static flow rate at 43.5PSI (300kPa), 0.12ms/MG gain, 0.055ms offset, 1.14ms turn-on time at 14VDC, 0.85ms turn-off time at 300KPa, 1.0 Amps amperage, and a pressure range of 30-100PSIG. Physical dimensions are 49mm overall length, 14mm O-rings (top and bottom), 38mm O-ring centerline to centerline, and 34mm O-ring seat to seat. The package includes the injectors, O-rings, datasheet, and plug-and-play EV6 to EV1/Denso/OBD2 connectors (actual connectors may vary), all within a plastic packaging box.

• Datasheet Comes with Injectors; Flow Matched within 1%; Acceptable fuels: Gas/Petrol, alcohol/methanol, E85, CNG
• Test: Leak, flow, pressure, spray Interior design: Metal and composite plastic Filter design: Basket filter design at inlet
• Overall length: 49mm Orings (top and bottom): 14mm O-ring centerline to centerline dimension: 38mm O-ring seat to seat dimension: 34mm Condition: 100% brand new
• Static flow rate: @43.5PSI ( 300kPa ) 80% duty Coil resistance: 9 Ohms high impedance Gain: 0.12ms/MG Offset: 0.055ms Turn on time: 1.14ms @ 14VDC Turn off time: 0.85ms @ 300KPa Amperage: 1.0 Amps Pressure: Min 30PSIG/ Max 100PSIG
• Includes: plastic packaging box, injectors, o-rings, datasheet, ev6 to ev1/denso/obd2 connectors ( plug and play). (According to the actual situation of the product)
• Compatible with LS3 6.2L: 2008–2013 Chevrolet Corvette, 2008-2013 Chevrolet Corvette and Corvette Grand Sport, 2008-2013 Chevrolet Corvette w/ Optional Exhaust, 2011 Jensen Interceptor R, 2010–2015 Chevrolet Camaro SS (manual only), 2009-2015 Chevrolet Camaro SS Coupe and Convertible, 2015-2017 Holden-based SS Sedan, 2008-2010 Pontiac G8 GXP, 2014–2017 Chevrolet SS, 2009–2017 Vauxhall VXR8, 2015 Drakan Spyder
• Compatible with LS4 5.3L: 2005–2008 Pontiac Grand Prix GXP, 2006–2009 Chevrolet Impala SS, 2006–2007 Chevrolet Monte Carlo SS, 2008–2009 Buick LaCrosse Super
• Compatible with LS7(7.0L): 2006–2013 Chevrolet Corvette Z06, 2013 Corvette 427 Convertible, 2014-2015 Chevrolet Camaro Z28
• Compatible with LS9 6.2L: 2009–2013 Chevrolet Corvette ZR1, 2017 HSV GTSR W1; Compatible with L99 6.2L: 2010–2015 Chevrolet Camaro SS (automatic transmission)
• Compatible with LSA 6.2L: 2009–2015 Cadillac CTS-V, 2012–2015 Chevrolet Camaro ZL1, 2014–2017 HSV GTS GEN-F, 2013–2017 Vauxhall VXR8 GTS, GTS-R
