(8 Pcs) 24V Relay Din Rail; Miniature Power Relay; Silm; Signal Relay for PLC; 24VDC and 24VAC Both; 5 Pin SPDT with LED Indicator, Socket Base; Max 6A 250VAC
$49.99
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by bitbiashara.com
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
$49.99
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by bitbiashara.com
Free 30-day returns Details
Product details
| Management number | 211058997 | Release Date | 2026/04/04 | List Price | $20.00 | Model Number | 211058997 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Package include : 8 Pcs Power Relay ,8 Pcs Socket Base
- Relay and Socket through UL Certification, Product Name:Subminiature Power Relay，The thickness is only 0.25inch /6.2mm. Easy to install, screw teminal.
- ATTENTION: Relay Coil Voltage is 24V DC relay or 24V AC relay, Contact : SPDT (1NO+1NC); Number of Terminals : 5 Pin; Contact Rating: 6A 250VAC / 30VDC, Construction: Plastic seaied. Mechanical life: 10,000,000 Cycles.
- Socket: Screw terminal, DIN rail mounting, with finger protection device. Relay Input voltage: (24)V AC/DC; Plug-and-play design allows the relay and base to be easily separated for convenient replacement,enhancing user-friendliness.

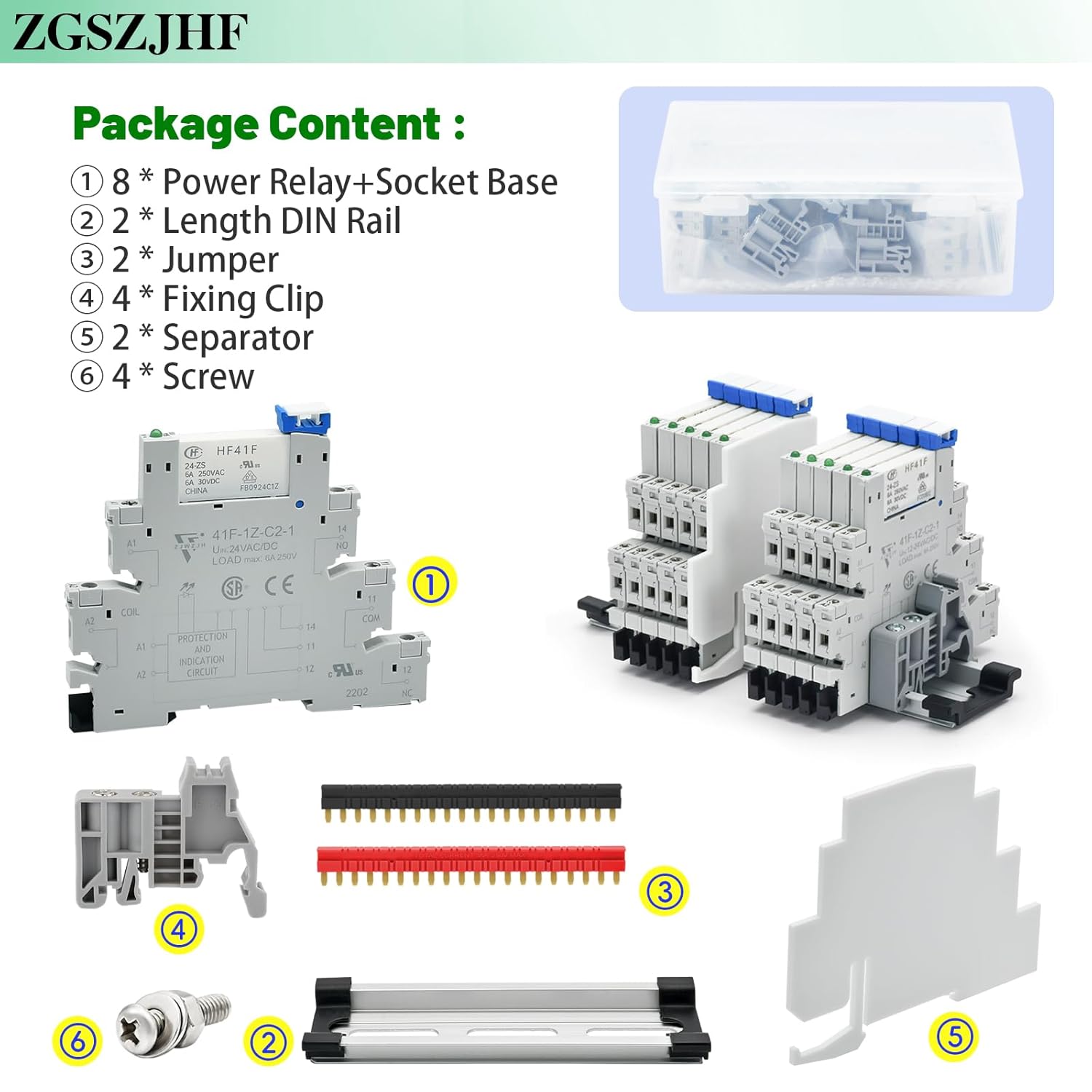

- Package Content: 8* Relay; 8* Socket Base; 2* 140mm Length DIN Rail; 3* Jumper; 4* Fixing Clip; 2* Separator; 4* Screw. Ambient temperature: -40℃ ~ 70℃.
- Relay Model:HF41F/24-ZS , Relay Slim size (width 5mm), Outline size:28×5×15mm; Socket Model: 41F-1Z-C2-1, Size : 70.9 x 88.3 x 6.3mm / 2.798"x3.48"x 0.25"(H*L*W).
| Model | KD HF41F/24-8PCS |
|---|---|
| Wattage | 170 Milliwatts |
| Brand Name | ZGSZJHF |
| Item Weight | 1.12 ounces |
| Part Number | KD HF41F/24-8PCS |
| Coil Voltage | 24 Volts |
| Contact Type | Normally Closed and Normally Open |
| Manufacturer | ZGSZJHF |
| Mounting Type | DIN Rail Mount |
| Connector Type | Screw |
| Current Rating | 6 Amps |
| Operation Mode | ON-OFF |
| Contact Material | Silver Tin Oxide |
| Specification Met | CE, UL |
| Warranty Description | If you have any question, please be free to contact us. |
| Contact Current Rating | 6 Amps |
| Upper Temperature Rating | 70 Degrees Celsius |
| Maximum Switching Current | 6 Amps |
| Maximum Switching Voltage | 250 Volts |
| Minimum Switching Voltage | 5 Volts |
