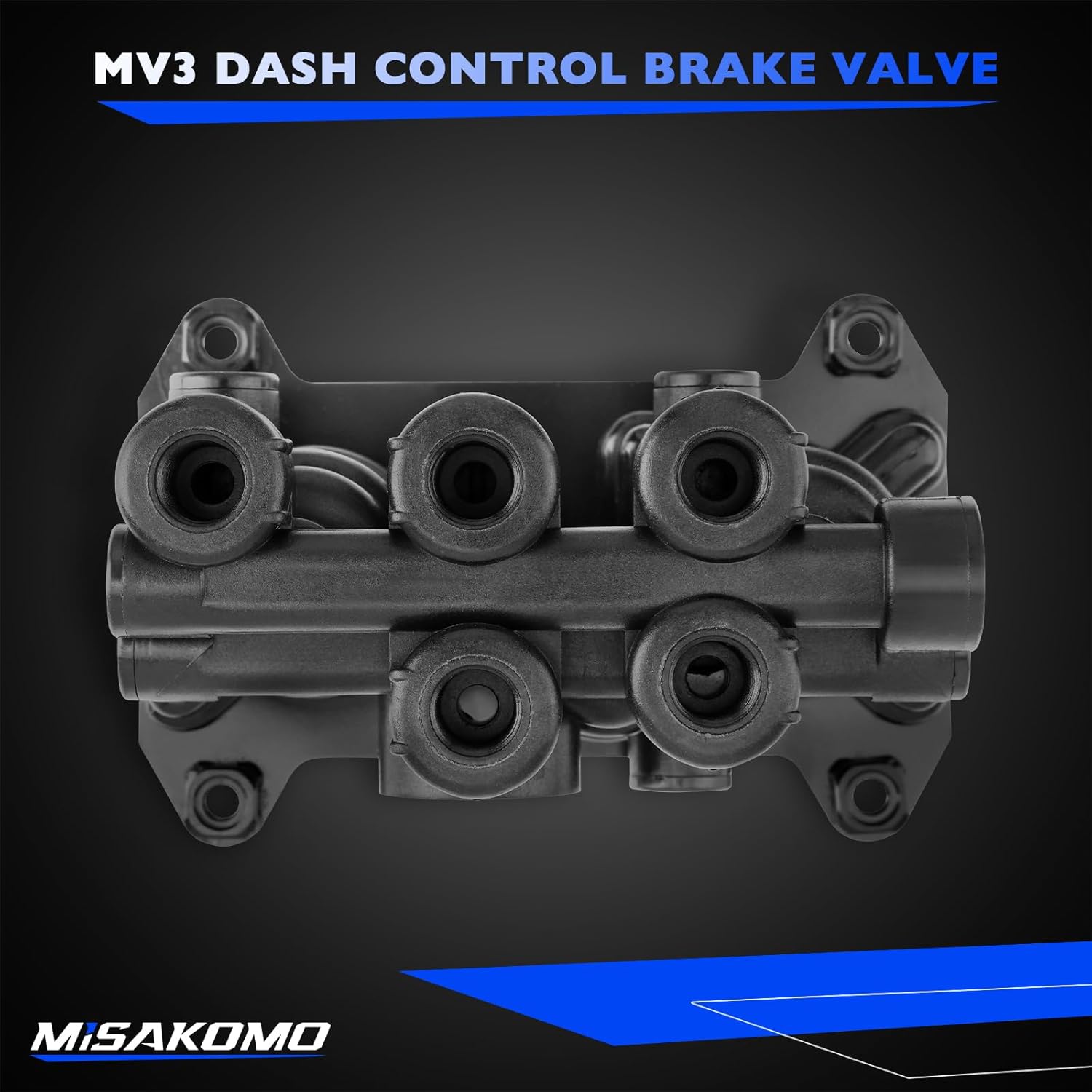

800516 MV-3 Dash Air Brake Control Valve, 1/4" NPT Ports - MV3 Trailer Parking Brake Valve Compatible with Bendix Volvo Velvac Western Star Peterbilt Kenworth

Features:The difference between an MV-2 and MV-3 is pretty simple just check to see how your buttons are mounted to the Valve if the buttons are mounted with a rolling pin you have an MV-2 Valve if they screw on you have an MV-3 Valve.The MV3 dash control valve combines the functions of a PP-1 control valve and a PP-7 trailer supply valve into a unified device.The MV3 dash valve is a two-button, push-pull control valve housed in a single body which includes a dual circuit supply valve and a check valve.The MV3 dash air valve can duplicate the functions of any existing two or three-valve push-pull system and has the advantage of reduced plumbing.Replace Part Number: Bendix: 800516, 065157, 065697Velvac: 034081, 106331, 106992, 109865, 109985, 4790208, 5005053, 5005077, 5012812, 5001230Volvo: 3948331, 394979Fitments:Compatible with Peterbilt 377Compatible with Kenworth T660Compatible with Volvo and Western Star TruckVery Important: Please Verify this product Description and Compatibility Before Buying.Specifications:Material: Heavy Duty Polymer (EGC-Engineering Grade Composite)Mounting: Horizontal with 1/4" Hole in BodyExhaust: 1/4" NPTSupply(2): 1/4" NPTTractor Delivery: 1/4" NPTTrailer Delivery: 1/4" NPTTractor Valve: 20 - 35 PSITrailer Valve: 20 - 45 PSINon-Override: 25 ± 5 PSINotes: This Part Integrates Parking Brake Valve and Trailer Air Supply Valve (Knobs Included). All Ports 1/4" Push-To-Connect Fittings.Package Includes:1 x MV3 Style Control Module

• Premium OEM-Quality Replacement - The 800516 MV-3 air parking brake dash hand control valve is engineered to meet exacting industry standards, providing performance and reliability equivalent to original equipment. This makes it an ideal selection for commercial trucks. Constructed from Engineering Grade Composite (EGC) with a one-piece housing, this valve ensures maximum durability and corrosion resistance.
• Broad Compatibility - The design of this MV-3 dash control brake valve allows it to be suitable for a wide array of commercial vehicles, including heavy-duty trucks and trailers, ensuring compatibility and optimal performance across various fleet configurations. Compatible parts include Bendix: 800516, 065157, 065697; Volvo: 3948331, 3949799; and Velvac: 034081, 106331, 106992, 109865, 109985, 4790208, 5005053, 5005077, 5012812, 5001230.
• Advanced Dual Circuit Design - This dash control brake valve is designed to support a dual-circuit system, enabling independent control of the brakes on both the tractor and the trailer. This feature not only ensures precise operation but also enhances safety. The MV-3 dash control brake valve includes 1/4" supply ports, 1/4" delivery ports, additional 1/4" ports on the bottom, pin-on knobs, and threaded mounting holes, making it a direct replacement for heavy-duty trucks.
• Multifunctional Integrated Controls - Combining emergency and parking brake controls into a single unit, this valve simplifies the control interface, allowing drivers to effortlessly manage complex braking requirements. It is compatible with specific models such as Peterbilt 377, Kenworth T660, and Volvo & Western Star Trucks equipped with 1/4"-20 mounting holes. Please ensure to check the compatibility chart before purchasing to confirm it fits your vehicle.
• Durable and Easy to Install - Made with high-quality materials capable of withstanding harsh environmental conditions and prolonged usage, this air brake control valve is designed for durability and longevity. Its straightforward installation process enables quick operational resumption and minimal downtime, making it a reliable choice for maintaining the efficiency of your fleet.
