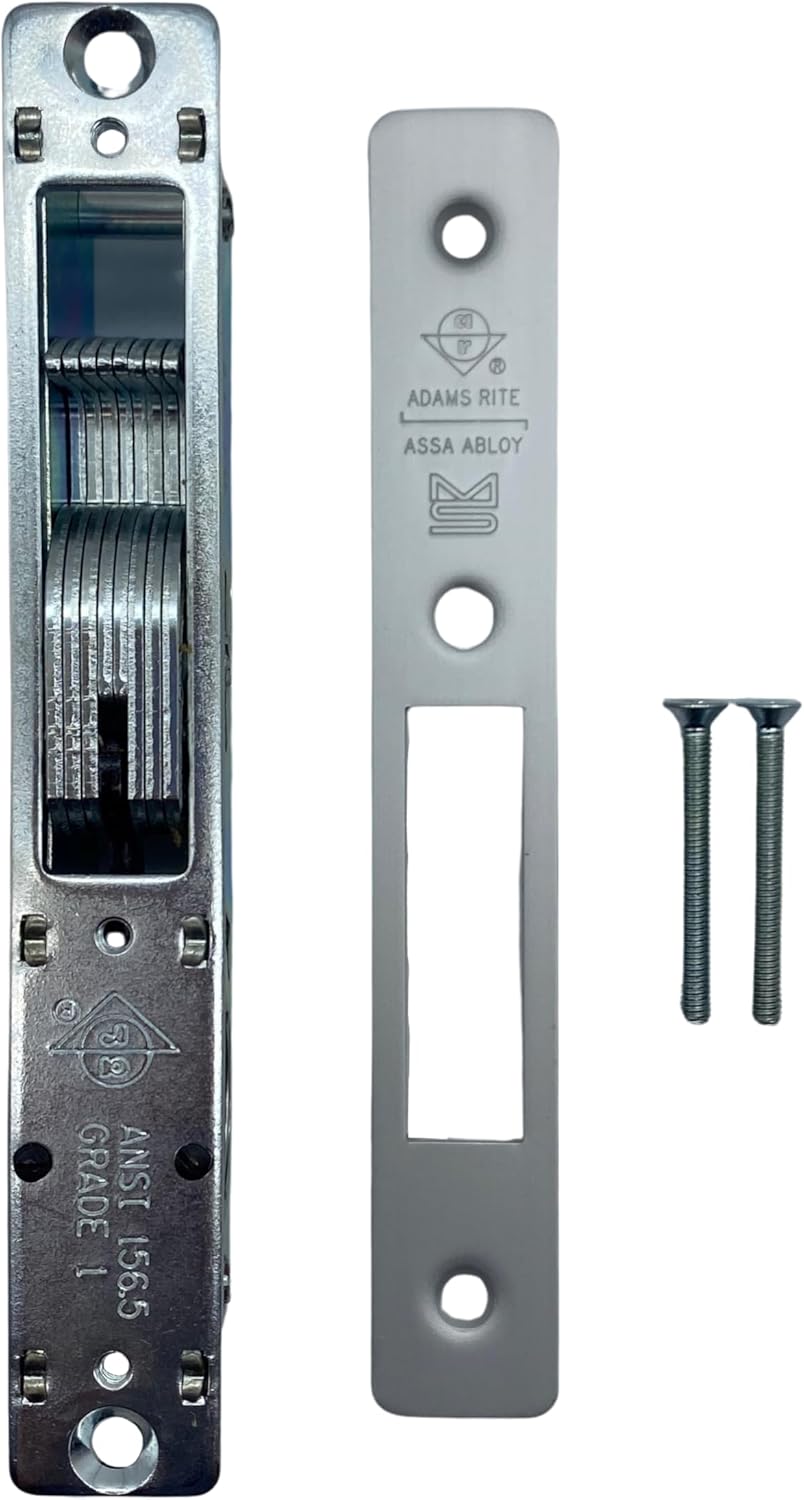

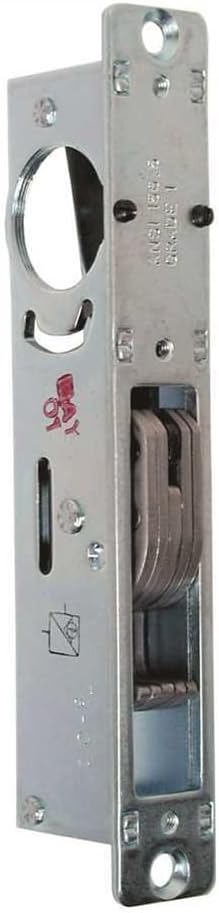

Adams Rite 713521 Adams Rite Hookbolt Deadlock 31/32 In. Backset
Product details
| Management number | 211198626 | Release Date | 2026/04/04 | List Price | $36.00 | Model Number | 211198626 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
MS1850SSeries MS? DeadlocksThe MS1850S Series MS 174; Deadlock utilizes a laminated stainless steel bolt to provide maximum security for a single leaf narrow stile aluminum door.Function:Huge bolt of laminated stainless steel, nearly 3" long, activated by an uncomplicated pivot mechanism, has made the basic MS1850S Series MS 174; Deadlock the standard of the narrow stile aluminum door industry. The length of this bolt provides maximum security for a single leaf door, even a very tall and flexible one or an installation where the gap between the door and jamb is greater than it should be.Operation:360? turn of key or thumbturn projects or retracts the counterbalanced bolt. Key can be removed only when bolt is in a positively locked or unlocked position. Lock accepts any standard 1" [25.4 mm] length, 1-5/32" [29.4 mm] diameter mortise cylinder with MS? cam such as the 4036 Mortise Cylinder or thumbturn such as the 4066 Thumbturn, available separately. Lock accepts cylinder from either or both sides.Features:Cylinder Backset:7/8" [22.2 mm], 31/32" [24.6 mm], 1-1/8" [28.6 mm], and 1-1/2" [38.1 mm]. 1850S-X2X not available with 7/8" backset.Case:Measures 1" x 6" x depth [25.4 mm x 152.4 mm x depth], depth varies by backset. Steel with corrosion-resistant plating.Faceplate:Measures 1" x 6-7/8" [25.4 mm x 174.6 mm].Strike:See below for dimensions of strike slot which can be cut in metal jamb. Trim plate, box strike, and armored strike are available separately.Bolt:Eight-ply laminated stainless steel. Center ply has alumina-ceramic core to defeat any hacksaw attack, including rod-type "super" hacksaws.Standard straight bolt measures 5/8" x 1-3/8" x 2-7/8" [15.9 mm x 34.9 mm x 73.0 mm] with 1-3/8" [34.9 mm] throw.Standard Package:Individually boxed with faceplate and mounting screws. Strike plates, cylinders and/or thumbturns available separately.Shipping Weight:1-1/2 lbs [0.68 kg].Options:
- Hook Bolt Deadlock
- For Use in Single Leaf Narrow Stile Doors
- Laminated Steel Bolt
- 6-7/8" Faceplate
- Warranted Free From Defects In Workmanship And Materials Under Normal Use And Service
| UPC | 802063170498 |
|---|---|
| Color | Satin Aluminum Clear Anodized |
| Shape | Triangle |
| Lock Type | Key Lock |
| Brand Name | Adams Rite |
| Style Name | Modern |
| Unit Count | 1.0 Count |
| Item Weight | 11.2 ounces |
| Finish Types | Aluminum |
| Manufacturer | Adams Rite |
| Model Number | MS1850S-250-628 |
| Material Type | Alloy Steel, Aluminum, Stainless Steel |
| Control Method | App |
| Controller Type | Hand Control |
| Item Dimensions | 9 x 3.5 x 2 inches |
| Additional Features | Key Lock |
| Included Components | 1 |
| Recommended Uses For Product | Security |
