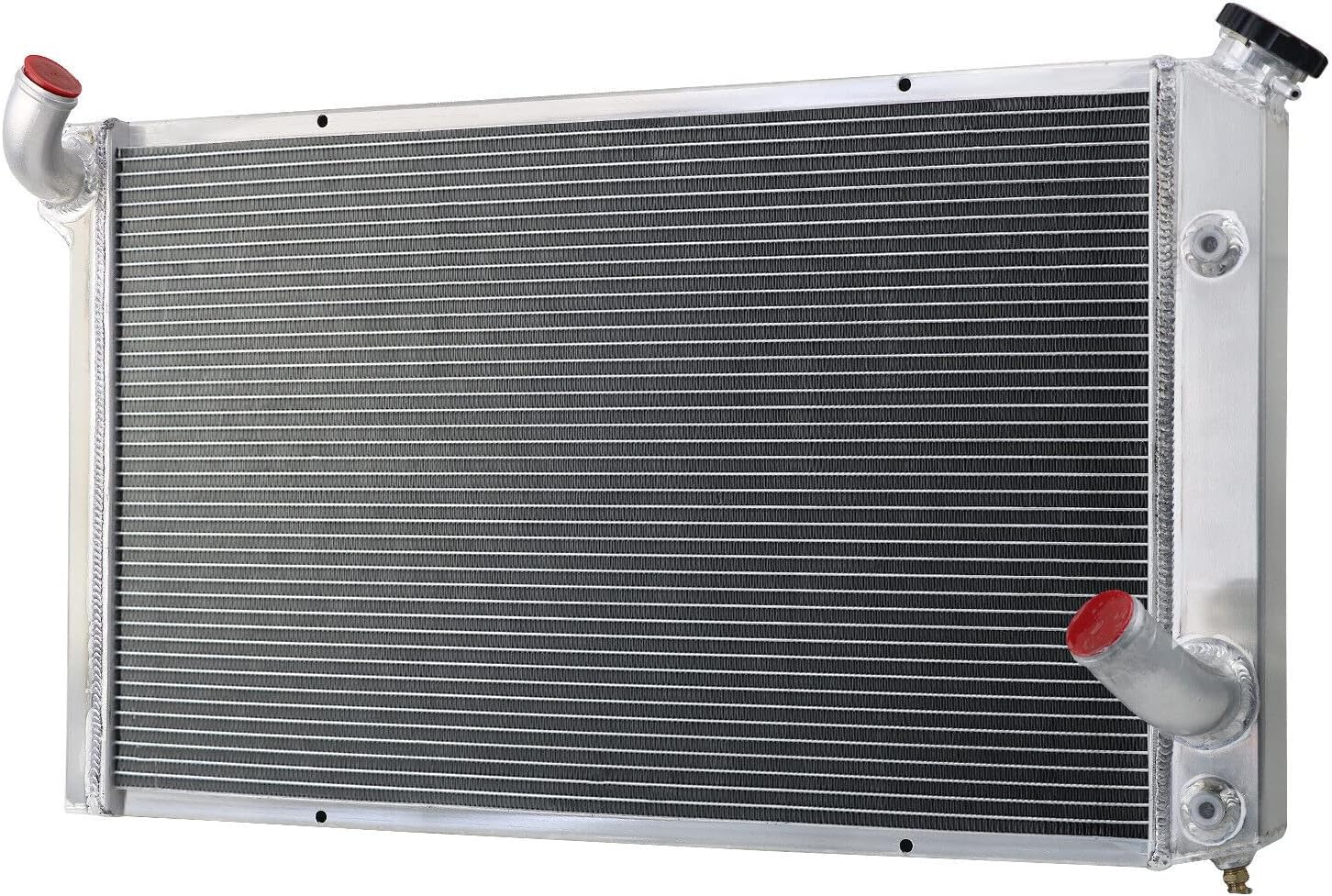

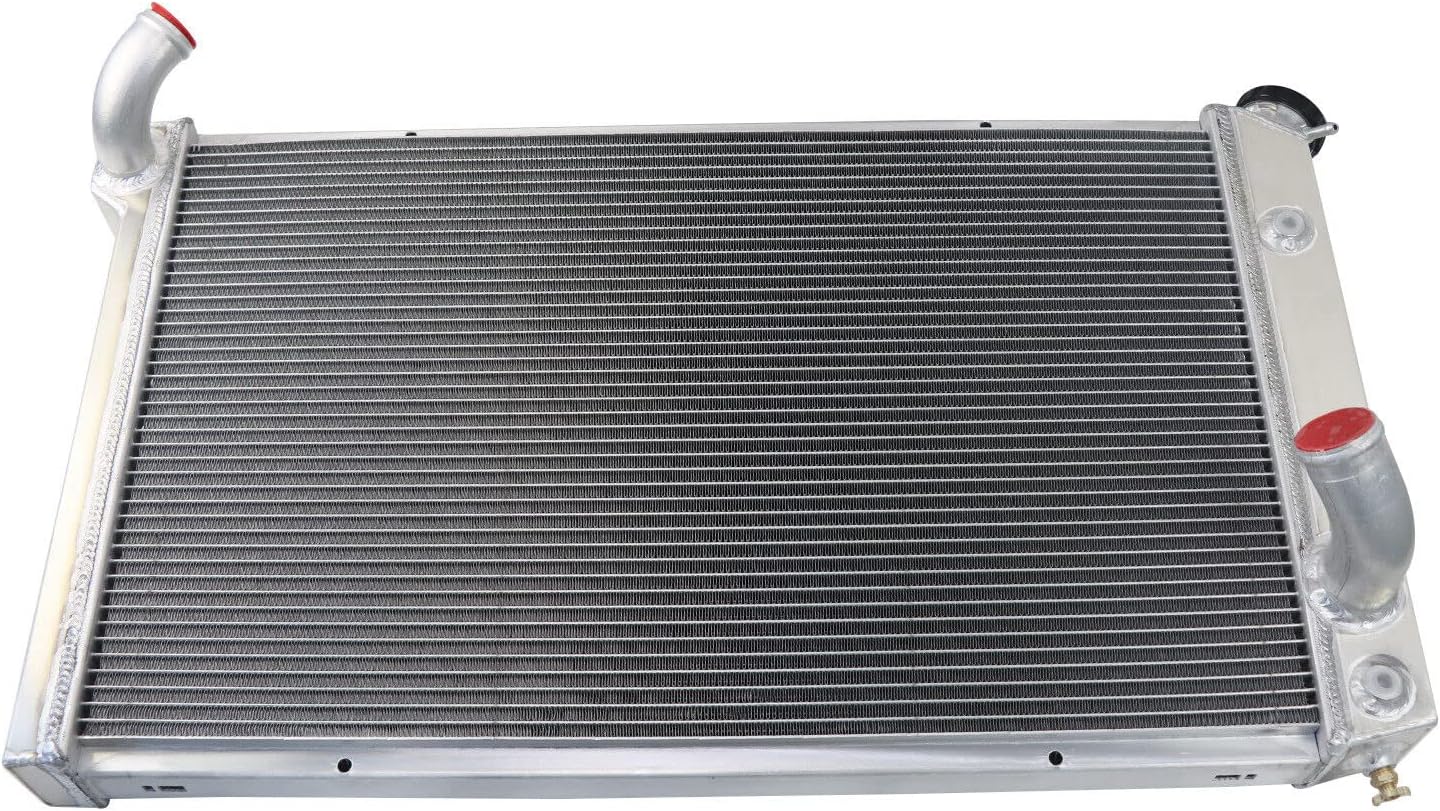

ALLOYWORKS Radiator Compatible with 1973-1976 Chevy Corvette Base Stingray 5.7 7.4L V8, 4 Row Core Full Aluminum Radiators

ALLOYWORKS 4 Row of Tubes Core Racing Design Complete RadiatorVehicle Fitment:Radiator Replacement for 1973-1976 Chevy Corvette Base Stingray V8 5.7L 7.4LRadiator Details:Fitment Type: Direct ReplacementPlacement on Vehicle: Engine CompartmentDirect fit and built to last long with high quality aluminum core.The radiator is constructed with full aluminum and the tanks are welded by TIG.Its lightweight and high heat transferring aluminum features a tube and fin design,that dramatically increases surface area that enables the heat to dissipate more efficiently. Petock Drain: OEM style brass petcock drainCore Size: 27 1/2" Width x 16 3/4" HeightOverall Size: 33 1/2" Width x 19 1/2" HeightUpper Inlet: 1 1/2" located on the driver sideLower Outlet: 1 3/4" located on the passenger sideTransmission Oil Cooler: G1/4(Z)Gentle Hint:Professional installation is highly recommended! No Fitting Instructions Supplied! Please contact us for installation video.Please use Amazon's vehicle fitment tool (located at the top of the listing on desktop, below the images on mobile) to confirm that the part is correct for your vehicle application. Parameters Meticulous Prior to Ordering.

• [Applications] Replacement for 1973 1974 1975 1976 Chevy Corvette Base Stingray V8 5.7L 7.4L
• [Dimensions] Core Size: 27 1/2" Width x 16 3/4" Height; Overall Size: 33 1/2" Width x 19 1/2" Height; Upper Inlet: 1 1/2" located on the driver side; Lower Outlet: 1 3/4" located on the passenger side; Transmission Oil Cooler: G1/4(Z)
• [Full Aluminum Radiator] Made from Aircraft AA5052 grade aluminum for prolonged lifespanand with raw aluminum finish. 2 mm thick full aluminum tanks and fittings, has a higher strength and greater corrosion resistance.
• [Higher Density Core] Cooling rows are spaced 3/8" apart, giving you 25% more rows within the core than other aluminum radiators sold on Amazon. 14-16 cooling fins per inch,giving you approximately 1500 more cooling fins than other aluminum radiators.
• [No Leaking Worries] 100% leaking and pressure tested. Thickened packing(either carton or wooden box), foam with shock absorption.
