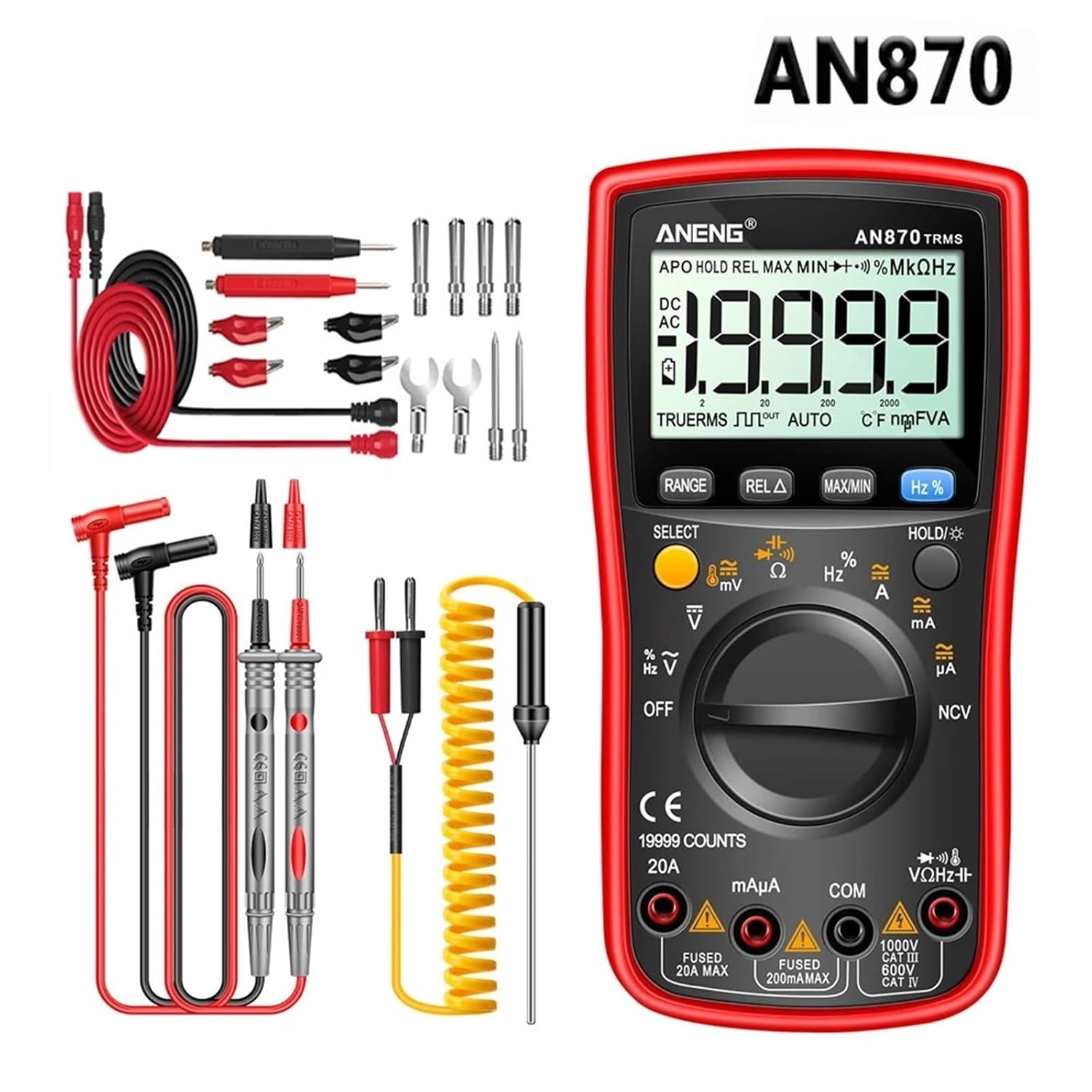

AN870 Profesional Digital Multimeter 19999 Counts True Rms AC/DC Voltage Current NCV Transistor Accurate Auto Range Tester(AN870 Red Pro)

Multi TestersAN870 Profesional Digital Multimeter 19999 CountsFeature:A. IntroductionThis product is a battery-powered, true-rms, auto-ranging digital multimeter with a 19999 display and a backlight.Specification NameModelAN870Display()19999countsRangingAuto/ManualMeterialABSUpdate Rate3Time/SecondTure RMSyesBack LightyesDate HoldyesRelative MeasurementyesMAX/MINyesLow Battery AlectyesAuto Power OffyesDiodeyesContinuityyesNCVyesFunctionRangeAccuracy Voltage19.999mV/199.99mV/1.9999V/19.999V/199.99V/1000V±(0.05%+ 3)AC Voltage19.999mV/199.99mV/1.9999V/19.999V/199.99V/750V±(0.3%+ 3) Current1.9999A /19.999A / 19.999mA /199.99mA /99.99A /1999.9A±(0.5%+3)AC Current1.9999A /19.999A / 19.999mA /199.99mA /99.99A /1999.9A±(0.8%+3)Resistance199.99±(0.5%+3)1.9999k/19.999k/199.99k±(0.2%+3)1.9999M/19.999M±(1.0%+3)199.99M±(5.0%+5)Capacitance9.999nF±(5.0%+20)99.99nF/999.9nF/9.999uF/99.99uF/999.9uF±(2.0%+5)9.999mF±(5.0%+5)Frequency99.99Hz/ 999.9Hz/ 9.999kHz/ 99.99kHz/ 999.9kHz/ 9.999MHz±(1.0%+2)Duty Cycle1%~99%±(1.0%+2)PackagingAs the picture showedWarning:1. Do NOT exceed the "maximum value" indicated in the Specification;2. Do NOT input voltage at the Current Mode, the Resistance Mode, the Diode Mode, the Continuity Mode, or the Temperature Mode;3. Do NOT use the product when the batteries or the battery cover is not placed properly;4. Turn off the product and remove the test leads from the test points before changing batteries or fuses.==========Is Smart Device : noOperating Mode : Double integral A/D converterMeasuring Capacitance Range : 10nF/100nF/1uF/10uF/100uF/1000uF/10000uFOperating Temperature : 0 - 40 DIY Supplies : ELECTRICALMeasuring Resistance Range : 600/6k /60k /600k /6M /60MModel Number : 870 Digital MultimeterMeasuring Inductance Range : noDimensions : 26 x 17 x 6 cm Current : 600uA/6000uA/60mA/600mA/10AAC Current : 600uA/6000uA/60mA/600mA/10AAC Voltage : 600mV/6V/60V/600V/1000V Voltage : 600mV/6V/60V/600V/1000VDisplay Type : Digital displayModel : AN870
