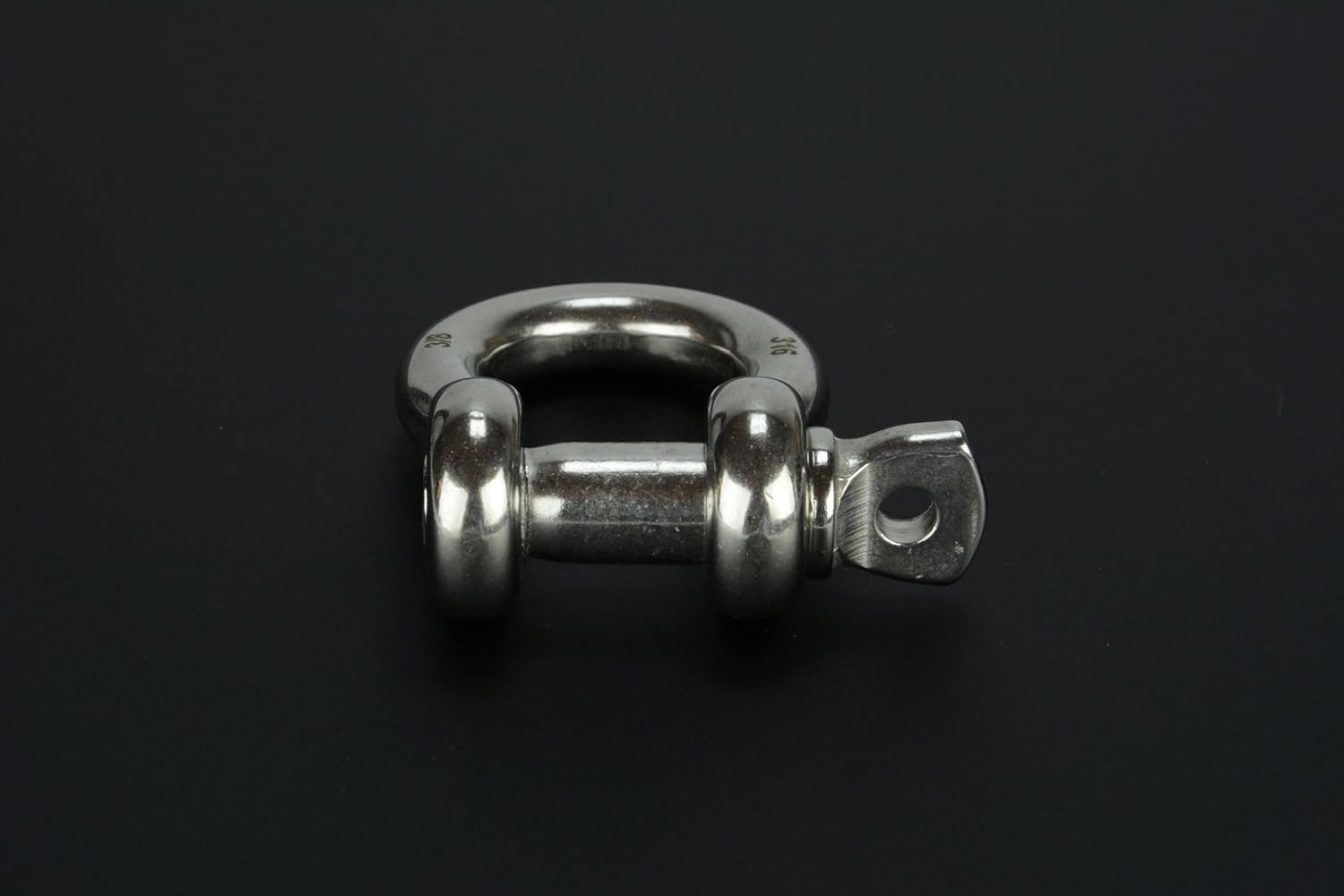

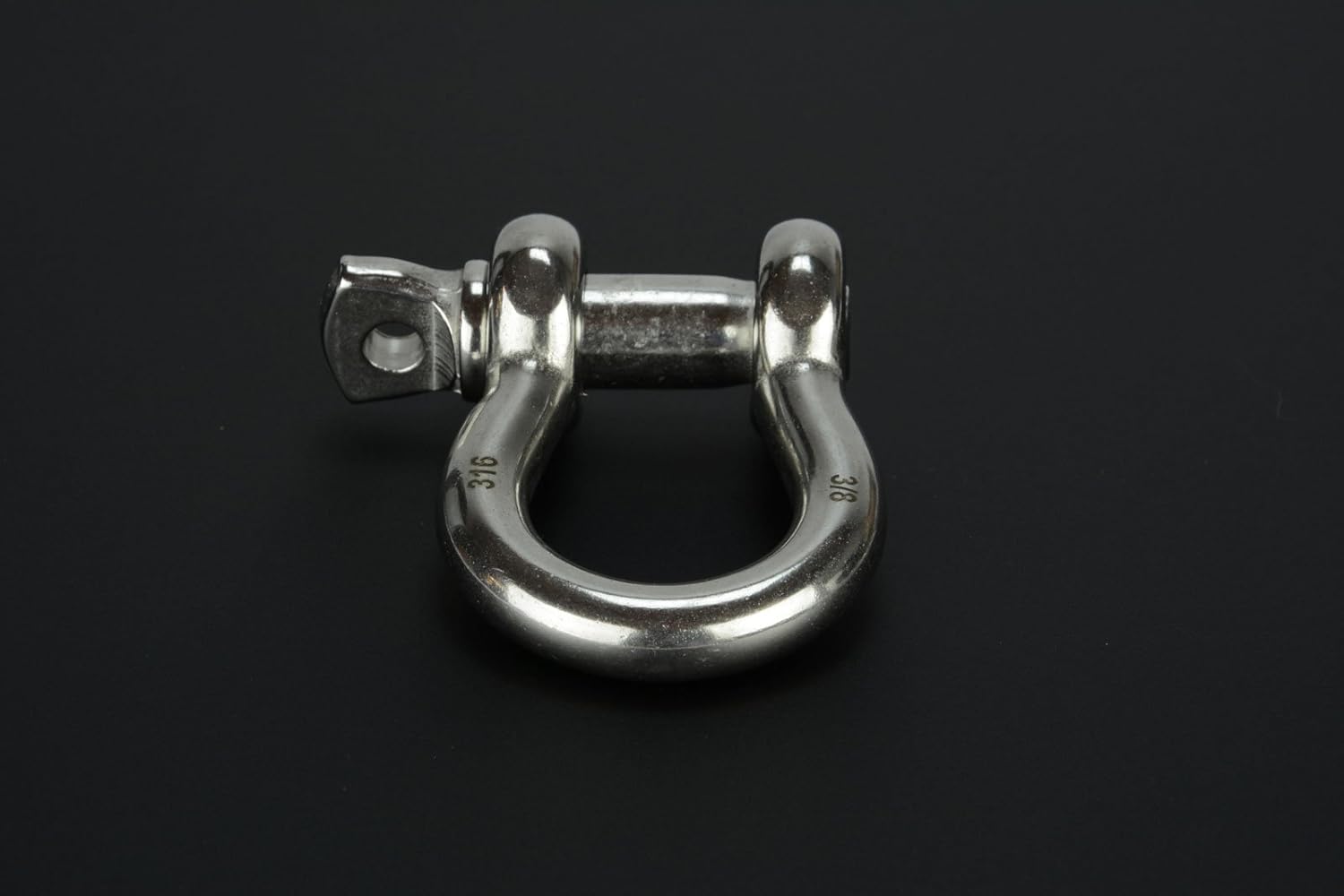

Anchor Shackle D Clevis Bow Ring 316 Stainless Steel for Sailboat Rigging

Shackle Type: Anchor ShackleMaterial: AISI 316 Stainless SteelShackle Dia.: 1/4"Pin Dia.: 5/16"Inside Width: 0.47"Inside Length: 1.13"Min Breaking Load / Working Load Limit (Pounds-force lbf): 5485.34Shackle Dia.: 3/8"Pin Dia.: 7/16"Inside Width: 0.66"Inside Length: 1.44"Min Breaking Load / Working Load Limit (Pounds-force lbf): 12.342.01Shackle Dia.: 1/2"Pin Dia.: 5/8"Inside Width: 0.81"Inside Length: 1.88"Min Breaking Load / Working Load Limit (Pounds-force lbf): 21963.83 TEMCo's anchor and chain shackles are made with strong, durable, and corrosion-resistant 316 stainless steel capable of withstanding thousands of pounds of force. Comes in 2 different designs and 3 different sizes. Whether you're going to shackle a rope eye to an anchor chain or keep one around in your vehicle for emergency towing, our shackles are guaranteed to work just as hard as you. Choosing the Right ShackleChoosing a shackle depends on your application. A chain shackle's elongated and narrow shape allows the shackle to maintain tension in a straight line on its longest axis. However, it is at its weakest when tension is created in various angles and most weak when it must bear a load at its sides. Using any chain shackle sideways is highly unrecommended.The unique shape of the anchor shackle with its circular bow section allows the shackle to mitigate the weakness

• Leverage can be applied to clevis pin with bored center hole via a screw driver or rod for secure lock.
• Bored center can also be used to easily mouse the pin securely to the shackle.
• Depending on shackle size, the maximum working load limit ranges between 24.4 to 54.9 kilonewtons of force. Safe working load depends on application, and even orientation of the shackle under load.
• 1/4", 3/8" and 1/2" sizes measure the diameter of the shackle's cross section.
• Made out of premium 316 stainless steel to drastically reduce wear and corrosion.
