AT5310 AT5320 AT5330 Multichannel Battery Internal Resistance Meter (AT5310(10 channe))
Product details
| Management number | 211161264 | Release Date | 2026/04/04 | List Price | $1,119.60 | Model Number | 211161264 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

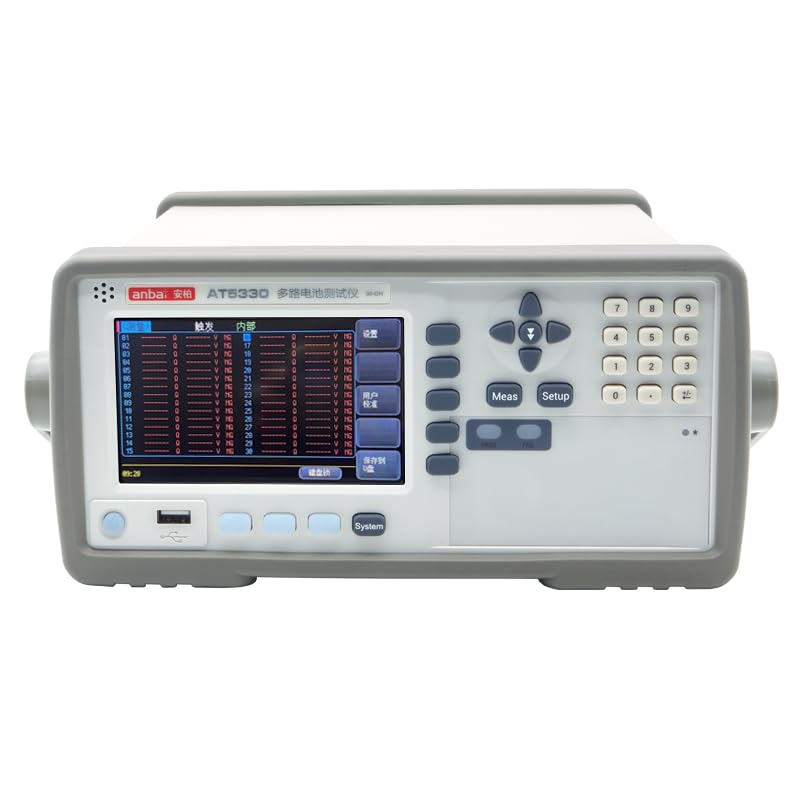

Multi-channel battery tester is a miniature desktop instrument controlled by high-performance 32-bit ARM microprocessor and fully automatic real-time detection. Scanning test for 10-channel battery internal resistance and voltage. The instrument can test 0.001mΩ~3kΩ resistance, 0.0001V~60.000V DC voltage, resistance 30000 display digits, voltage 60000 display digits. The instrument can perform mixed test on the resistance of 10 different batteries, each channel has independent comparator settings, and the 10-channel comparator results can be output through the Handler interface in a time-sharing manner. The instrument comes standard with RS-232 interface, RS-485 interface, USB communication interface and Handler interface
- Detection of damage test wire;Compatible with SCPI;Brand-new improved sampling circuit
- Max display:Resistance: 3,0000 Voltage: 60000;Calibration:Within full range short-circuit zero-clearance;Test speed:Slow: 4s/30 channel,Medium: 3s/30 channel.Fast：2s/30 channel
- Adopt vector method and measure multi parameter silmutaneously;Comparator(sorting) function

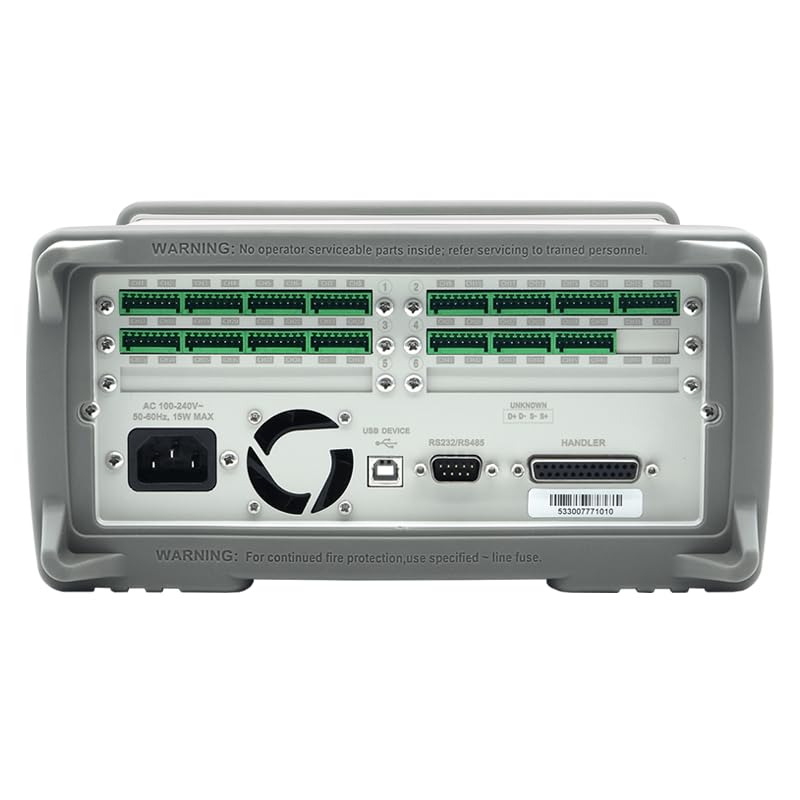

- Interface:RS-232C interface ；Handler interface(PLC interface)，RS485，USB
- Power requirements:Voltage:85VAC～250VAC Frequency: 50/60Hz Power: 20VA
| Color | Gray |
|---|---|
| Model | AT5310(10 channel) |
| Brand Name | Tonghui |
| Style Name | Industry |
| Manufacturer | Applent |
| Power Source | Corded Electric |
| Included Components | ABS |
