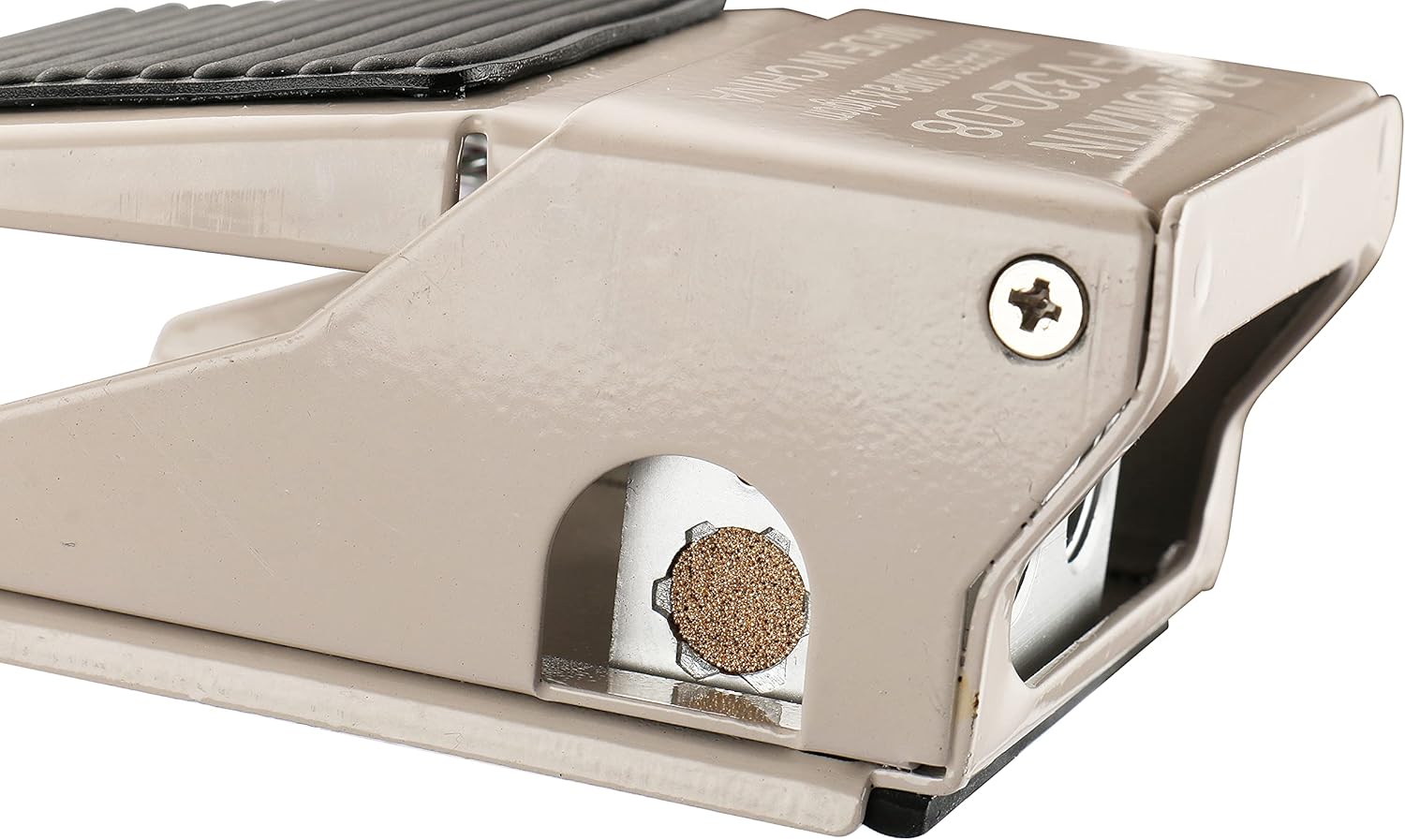

Baomain Pneumatic Foot Pedal Valve FV-320 Momentary 3 Way 2 Position 1/4" PT Threaded Rubber Nonslip Pressure Control (Pack of 2)

FV-320 Pneumatic Foot Pedal Valve – Heavy-duty momentary actuator for precise airflow control in pneumatic systems. 3-Way, 2-Position Functionality – Directs airflow in multiple directions for versatile industrial applications. 1/4" PT Threaded Ports – Standard threading ensures compatibility with industrial pneumatic fittings and easy installation.（There are two air holes on the back of the foot valve, including one air inlet and one air outlets,The exhaust hole on the side is equipped with a muffler.） Nonslip Rubber Pedal Design – Enhanced safety and stability during operation, even in high-pressure environments. Momentary Action Mechanism – Spring-return design for automatic shutoff, ideal for intermittent or rapid cycling. Foot Valve is a change valve controlled by foot, with small operative force and emancipation of hands.This kind of valve is widely applied to all kinds of pneumatic system.

• The information below is per-pack only
• Product Name: Pneumatic Foot Valve; Model: FV-320
• Type: 2-position 3-way （There are two air holes on the back of the foot valve, including one air inlet and one air outlets,The exhaust hole on the side is equipped with a muffler.）
• Structure :Foot Control; Operation: Direct Acting; Threaded Hole Diameter: PT 1/4
• Working Pressure : 1.5-8kgf/cm²
• Overall Size (Approx.) : 12.4 x 8.2 x 5.4cm / 4.9" x 3.1" x 2.1" (L*W*H)
