Compatible Atmel at AVR ISP mk2 MKII ATMEL AVR Programmer USB AVRISP XPII in-System Programmer Supports AVR Studio 4/5/6/7

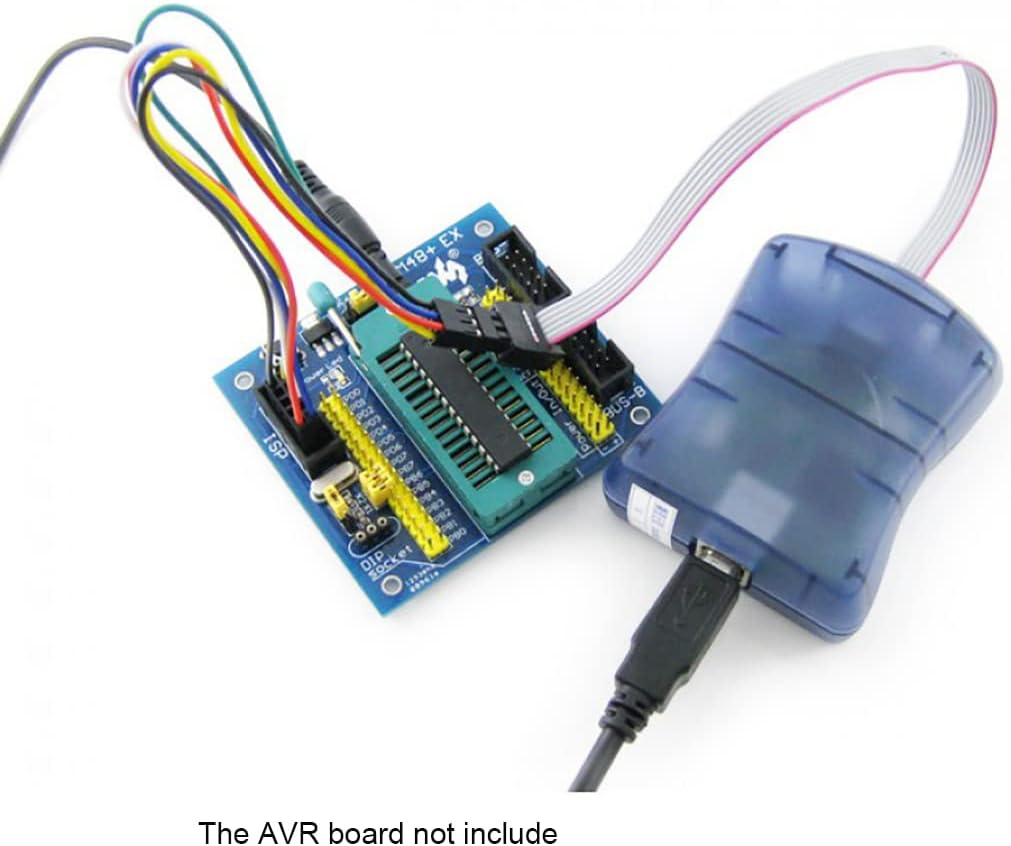

Description AVR ISP Programmer, compatible with AT AVRISP mkII from ATMEL A professional In-System Programmer. Supports all AVR devices with ISP or PDI interface, including XMEGA Supports AVR Studio 4/5/6 or higher version (delivered with firmware for AVR Studio 5, can be updated to support other AVR Studio versions) Features Supports all AVR devices with ISP or PDI interface, and certain 51 Devices Programs both Flash and EEPROM Supports Fuses and Lock Bit Programming Based on AT AVRISP mkII firmware Upgradable to Support Future Devices Adjustable ISP programming speed up to 8M frequency USB 2.0 compliant (full speed, 12Mbps) 3 optional cables to target board Powered from USB bus, does not require external power supply Package Content 1. USB AVRISP XPII x1 2. USB Cable x1 3. 6-pin cable (spare) x1 4. 6-pin to 10-pin ISP cable x1 5. 6-wire multicolour custom connector cable x1 Development Resources Resources : www.waveshare.com/wiki/USB_AVRISP_HAT_XPII

• Supports AVR Studio 4/5/6 or higer version(delivered with firmware for AVR Studio 5, can be updated to support other AVR Studio versions)
• Supports all AVR devices with ISP or PDI interface, and certain 51 Devices
• Supports Fuses and Lock Bit Programming
• Upgradable to Support Future Devices,adjustable ISP programming speed up to 8M frequency

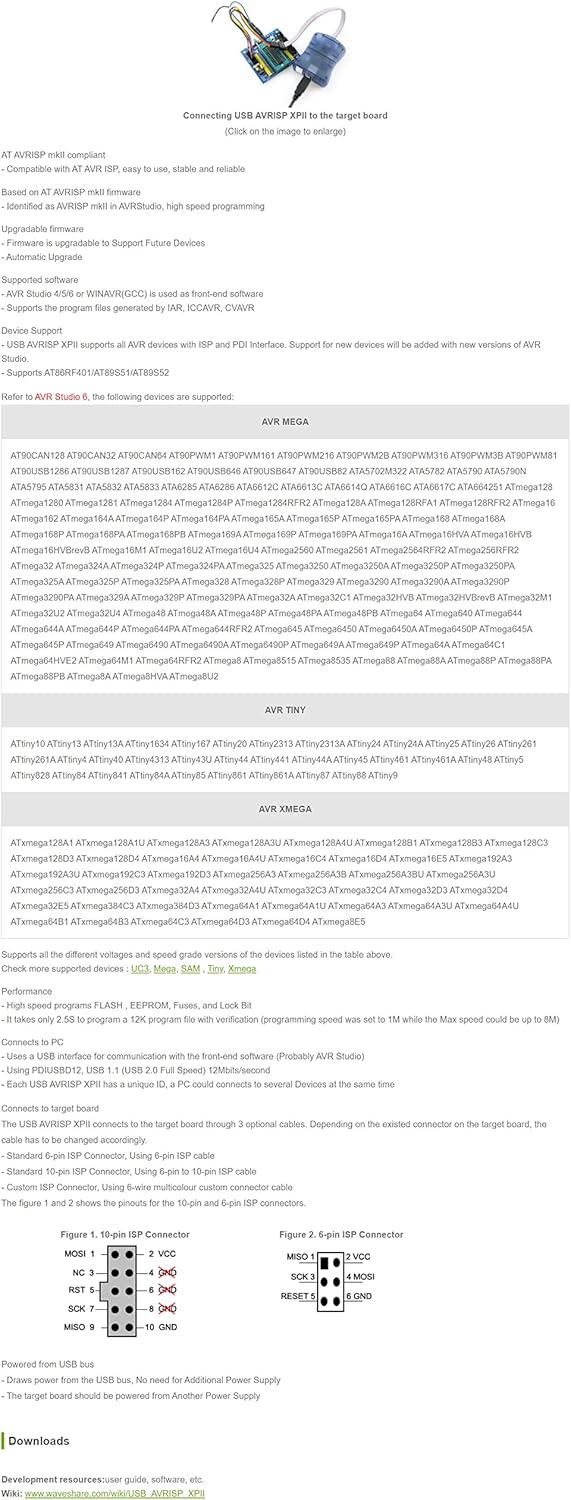

• Resources: www.waveshare.com/wiki/USB_AVRISP_HAT_XPII
