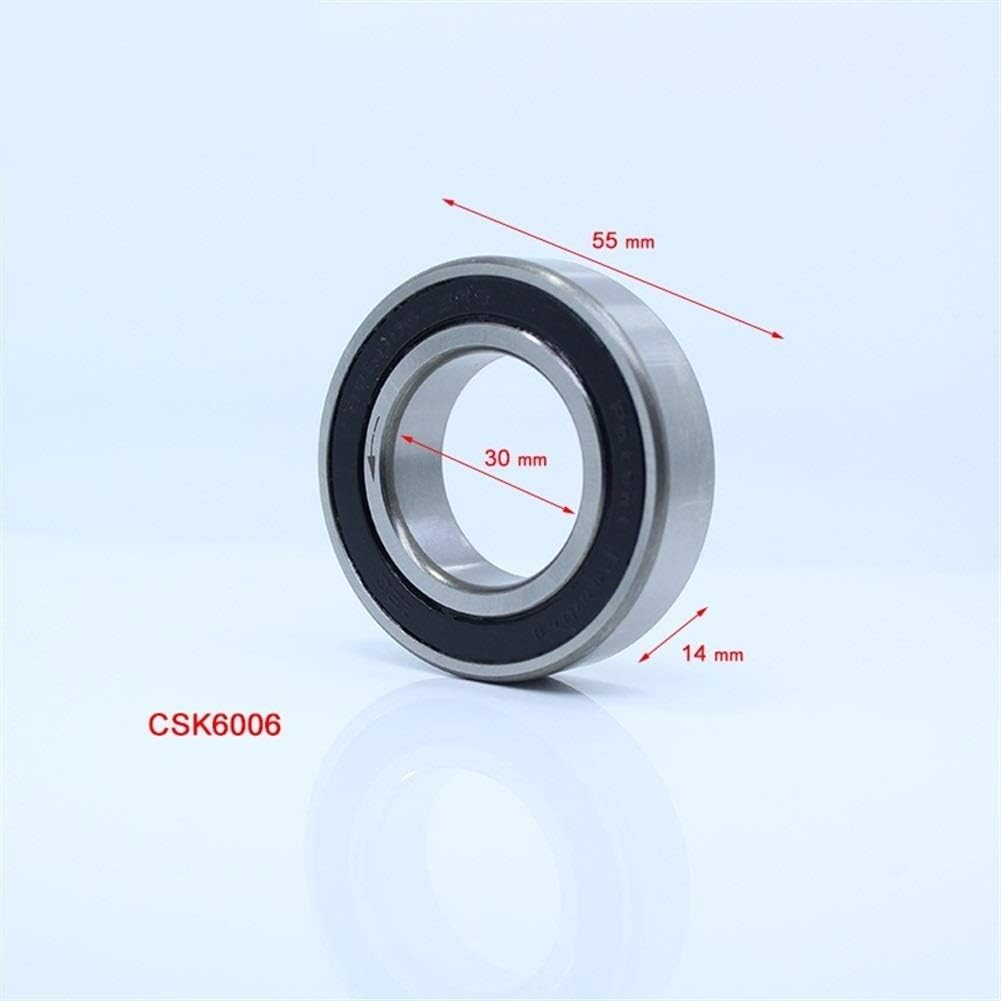

CSK6006 One Way Bearing Clutches Without Keyway CKK6006 CSK6006 Free Wheel Clutch Bearings CSK106 30 * 55 * 14mm

BearingsBearingCSK ONE WAY BEARING CLUTCHESType CSK is a sprag type clutch integrated into a 62 Series ball bearing (except sizes 8 and 40). It is bearing supported, shipped grease lubricated and protected against dust larger than .012"(.3mm) diameter. The use of additional "nylon" type seals is recommended especially when the working temperature exceeds 122F (50C).Oil bath lubrication is also possible if the original grease is first flushed out using a suitable solvent.Torque transmission is ensured by a press fit assembly into a rigid outer housing with N6 tolerance, and onto a shaft with n6 tolerance. The initial bearing radial clearance is set at C5, and is reduced if using the press fit as specified.One race may be glued. If both races are to be glued, performance will be reduced or a C3 bearing clearance will be necessary.Operating temperature range: 21 to 140F (-6 to 60C). CSK..2RS clutches are .197" (5mm) wider than a standard 62 Series bearing, as they are equipped with lip seals for wash down applications.CSK..PP features a keyway on both the inner and outer race. The recommended mounting tolerances are k6 on the shaft and K6 in a rigid housing.An h6 tolerance on the shaft or H6 in the housing are also acceptable for a light press fit assembly.Operating temperature range: 21 to 140F (-6 to 60C).Features:Needle bearings are roller bearings with cylindrical rollers. The advantages of needle roller bearings are small radial cross-sectional dimensions and high radial loads. Suitable for use in restricted installation spaces.Steel cage guides and evenly spaced rollers reduce friction, vibration and noise. Heat resistant and durable under heavy loads.

• Bearings
• Material: paper
• Item weight: 1.21 pounds
