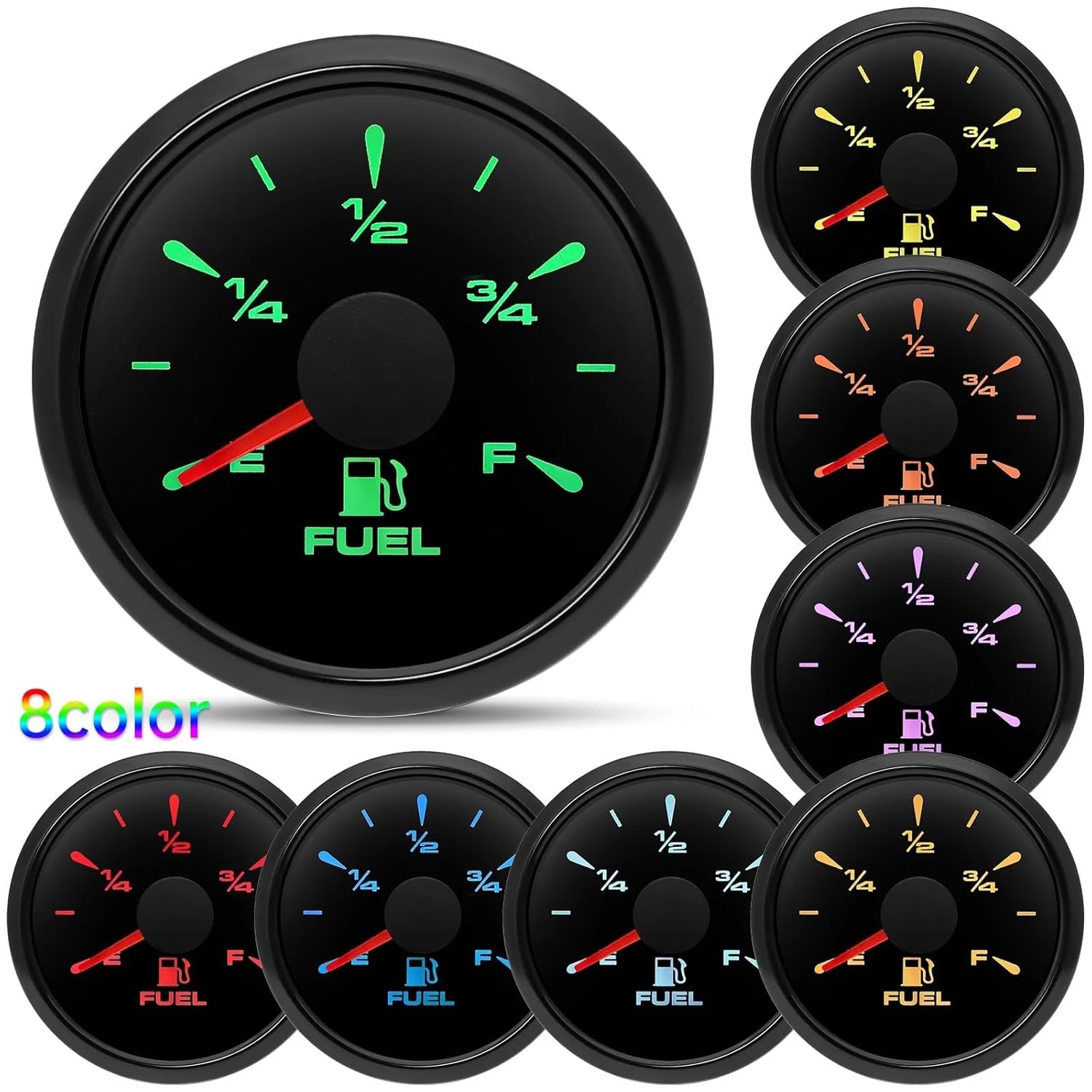

Custom Signal 0-90 ohm 52mm Car Fuel Level Gauge with Fuel Float Sensor Waterproof Oil Tank Meter Indicator 7 Colors Backlight(with 400mm Sensor)

Oil Pressure GaugesCustom Signal 0-90 ohm 52mm Fuel Level Gauge With Fuel Float Sensor Waterproof Oil Tank Meter Indicator 7 Colors Backlight For Car YachtOption A1X Fuel Level Gauge 0-90ohmOption B1X Fuel Level Gauge1X Fuel Level Sensor:- Material:stainless steel 316L+anti-fog glass- Install diameter:52mm or 2-1/16"- Indication range:E~F- Connection method:row insert- Backlight color:red,green,blue,white,yellow,olivine,orange,purple,totally 8 kinds different backlight color,it will change automatically every 1 minute,or you can fix only one color that you like through press the gauge back "set" button- Working voltage:9~32vdc- Input signal:0~90ohm- Users can select the input resistance by themselves as below:press the back "Mode"button for 3 seconds to enter the setting mode,back light flickering for a while.the needle point at the "E"position,and you could select the corresponding parameter via press the buttonSpecification:* Working current::60mA* Operating temperature:-30~+75* Storage temperature:-40~+85* Grade of protection:IP67* Item color:Black* Item condition:* Package method:neutral boxPackage Includes:1x Fuel Level Gauge1x Wiring harness1x Installation InstructionFeature:[1] Gauges front cover use stainless steel 316L for long-term use even in acid-base and humid environment[2] IP67 waterproof and dustproof grade[3] Stepper motors used for full range of stepping gauges,great feature with its less power consumption,longer life,higher precision etc.[4] With curved glass (with anti-fog function)[5] With ultra-wide working voltage design (long-term operating voltage:9-32v,maximum up to:36v)[6] Gauges have many kinds backlight color (red,yellow,orange,green,blue,purple,white),customers can adjust any color that you like[7] There is a snap together with the harness connector,for best and firmly connected,in order that the gauges could work even in strong viberation,products can be used for the engines/generating units,ships,construction machinery,agricultural machinery,automotive modification etc.Sensor parameter:* Resolution range: 21 mm* Assembly: SAE standard 5 holes* Operating temperatures: - 40 to 85* Rated current for alarm switch: 500mA* Operating temperatures: - 40 to 85 Celsius* Level Sensor fit for Diesel & Gasoline EngineFit for Fuel Level Gauge and Water Level GaugeLiquid level sensor length:150mm,200mm,250mm300 mm ,350 mm ,400mm, 450 mm* Mounting: 5 pieces of M5 screws and 2 mm thick gasket* Output signal: 0~90 ohmSnesor Package Includes:1 x Sensor1 x Gasket5 x Screws==========High-concerned chemical : NoneOther Part Number : fuel level gaugePlacement on Vehicle : FrontInterchange Part Number : Mini Digital Fuel Meter Motorcycle GaugeSpecial Features : 0-90ohm Fuel Level MeterItem Weight : 0.4kgItem Height : 0Item Width : 52mmItem Length : 52mm Boat Water Tank Level Gauge Part Number : Auto Digital Fuel Level Gauge NO. : Fuel Level Gauge MeterMaterial : stainless steel 316L bezel+anti-fog glassItem name : 52mm Boat Car Fuel Level Gauge MeterBacklight color : 7 colors backlightInput signal : 0-90ohmType : Fuel Gauges for Auto Boatfeture : Auto Digital Fuel Level Gaugeboat car fuel gauge : fuel level sensorApplication : Car Fuel Gauge for car truck yachtfuel gauge sending sensor : fit Fuel Level Meterfuel gauge sending sensor support : Water Liquid Level Gauge MeterWater Liquid Meter : Car Boat Water Tank Level GaugeFuel Sending Unit : fit for Water Level Gauge Fuel level gaugefuel level : car meterboat fuel gauge : LEVEL SENSOR Fuel Gauge : CAR GAUGOption 1 : 1pc fuel gaugeOption 2 : fuel gauge with sensor

• Oil Pressure Gauges
• Custom Signal 0-90 ohm 52mm Car Fuel Level Gauge With Fuel Float Sensor Waterproof Oil Tank Meter Indicator 7 Colors Backlight
