DIN Rail Mount 8 Channel Rocker Switch AC 125V 250V Power Distribution Strip Module
Product details
| Management number | 211068476 | Release Date | 2026/04/04 | List Price | $13.59 | Model Number | 211068476 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

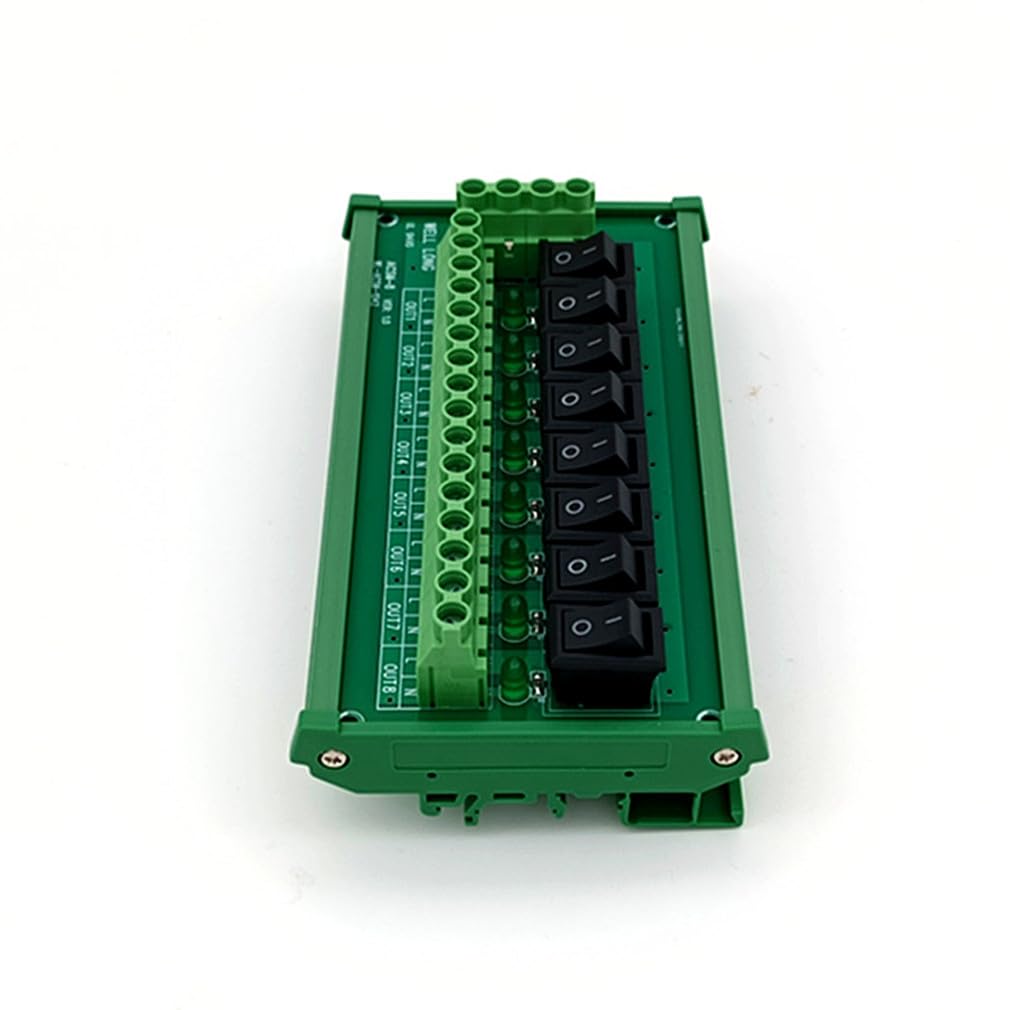

DIN Rail Mount 8 Channel Rocker Switch AC 125V 250V Power Distribution Strip Module 1. Working voltage AC 125 to 250V. The maximum total input current is 30 amperes. 8-channel output, with a maximum output current of 10 amperes per channel. 2. The input terminal spacing is 7.62mm/0.3 inch, with a maximum current of 30 amperes at each position. The wire size is 26 to 10 AWG, and the stripping length is 8mm. Metric M3 slotted screws are used. 3. Output terminal spacing 7.62mm/0.3 inch, wire size 26 to 10 AWG, peel length 8mm, metric M3 slotted screw. 4.Each channel switch controls the ON/OFF power output and has an LED indicating function. 5. High quality fireproof nylon material DIN rail mounting bracket, capable of supporting rails with widths of 35mm, 32mm, and 15mm. 6. FR-4 glass fiber double copper layer printed circuit board. 7.Support power supply expansion connect to other modules.
- Working voltage AC 125 to 250V. The maximum total input current is 30 amperes. 8-channel output, with a maximum output current of 10 amperes per channel.
- The input terminal spacing is 7.62mm/0.3 inch, with a maximum current of 30 amperes at each position. The wire size is 26 to 10 AWG, and the stripping length is 8mm. Metric M3 slotted screws are used.
- Output terminal spacing 7.62mm/0.3 inch, wire size 26 to 10 AWG, peel length 8mm, metric M3 slotted screw.

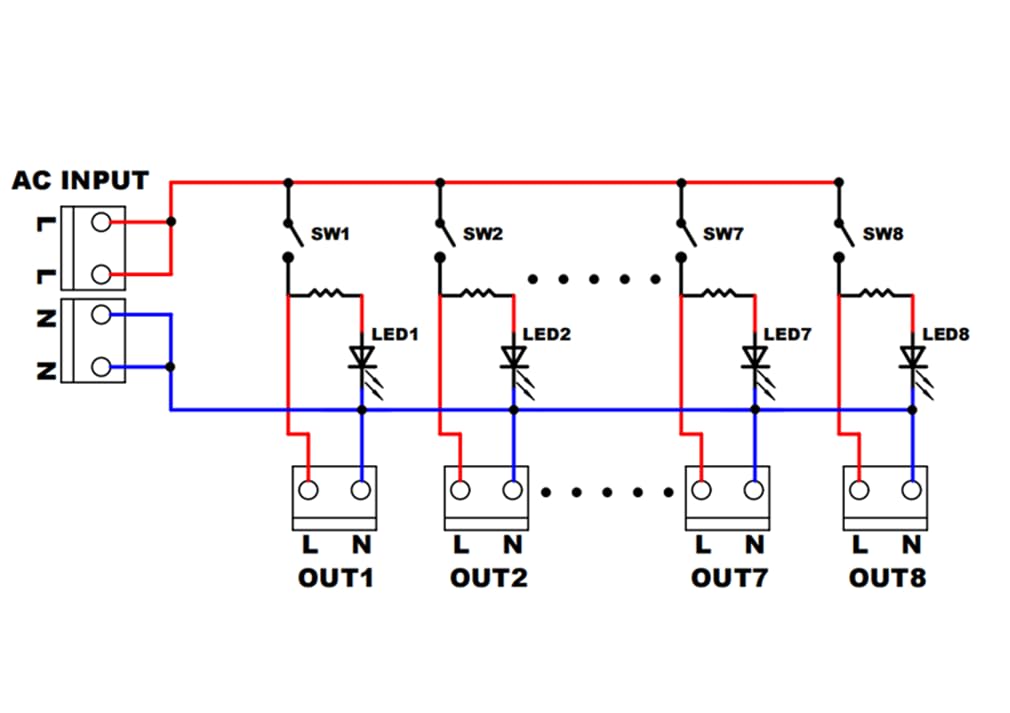

- Each channel switch controls the ON/OFF power output and has an LED indicating function.
- High quality fireproof nylon material DIN rail mounting bracket, capable of supporting rails with widths of 35mm, 32mm, and 15mm.

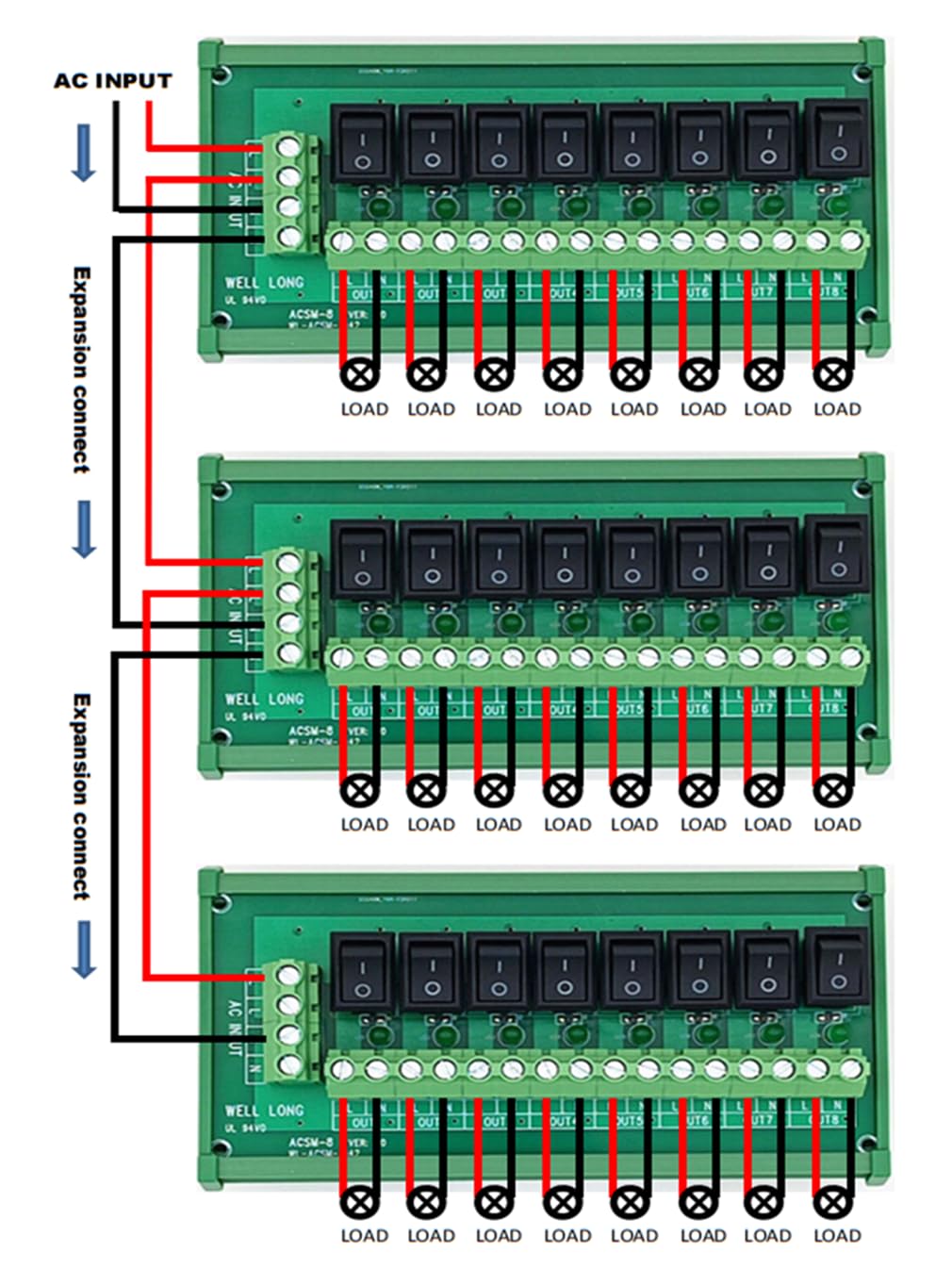

- FR-4 glass fiber double copper layer printed circuit board.Support power supply expansion connect to other modules.
| Model | ACSM-1042B-A3 |
|---|---|
| Brand Name | SZ-WEEL LONG |
| Unit Count | 1.0 Count |
| Part Number | ACSM-1042B-A3 |
| Manufacturer | XUHONG |
| Material Type | Brass, Plastic |
| Mounting Type | DIN Rail Mount |
| Connector Type | Crimp |
| Current Rating | 30 Amps |
| Specification Met | UL |
| Included Components | NO |
| Number of Positions | 8 |
| Upper Temperature Rating | 55 Degrees Celsius |
