Electric Trailer Brake Assembly - 10" X 2-1/4" for 3,500 lbs Axle - 1 Pair Left (77-10-1) and Right (77-10-2)
Product details
| Management number | 211823021 | Release Date | 2026/04/06 | List Price | $30.80 | Model Number | 211823021 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
General duty 10" x 2-1/4" Trailer Electric Brake Assembly that works with 3,500 lbs. Al-Ko, Dexter, Lippert, Rockwell and Quality Trailer Axles. These brakes are rated for 3,500 lbs and have a 4-bolt mounting flange bolt pattern. Manual adjustment is required and adjuster plugs are include. One left brake. (1 left and 1 right)
- SPECIFICATIONS - General duty 10" x 2-1/4" Trailer Electric Brake Assembly that works with 3,500 lbs. Al-Ko, Dexter(K23-026-00&K23-027-00）, Lippert, Rockwell and Quality Trailer Axles

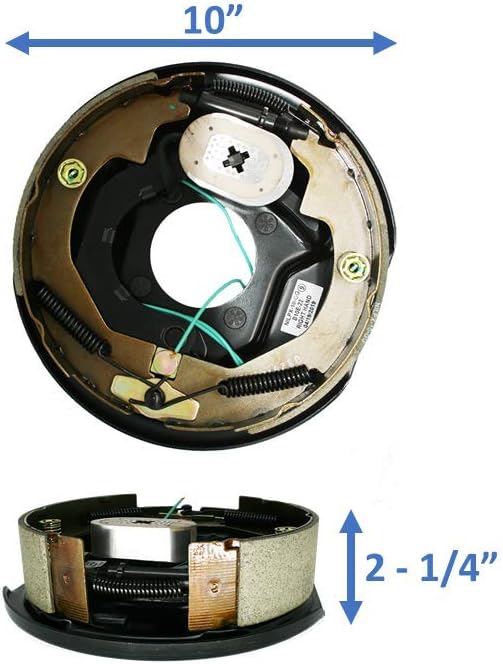

- DIMENSIONS - 10” diameter x 2-1/4” wide, 4” bolt circle, 3” center hole diameter
- HARDWARE INCLUDED - 4 Hole Mounting. Comes with mounting nuts and lock washers
- INCLUDED BRAKES - 1 left hand side and 1 right hand side
- M-PARTS AUTO- M-Parts Auto specializes in trailer parts & accessories using the highest quality materials
| Brand Name | M-Parts |
|---|---|
| Unit Count | 1.0 Count |
| Finish Type | Powder Coated |
| Item Weight | 15 Pounds |
| Manufacturer | M-Parts |
| Automotive Fit Type | Universal Fit |
| Maximum Towing Capacity | 3500 Pounds |
| Manufacturer Part Number | B10E-23 |
| Compatible with Vehicle Type | Trailer |
