Eujgoov 12V 50mm Stroke Linear Actuator 1500N 330lb IP54 Electric Motion Actuator with Safety Lock Various Guard for Lawn Tractor

Spec: Item Type: Linear Actuator Material: Alloy steel shafts and metal gears Technical Reference: Maximum Push/Pull Force: 1500N Standard Stroke: S = Approx. 50mm / 1.97in Minimum Mounting Size (distance between two holes when the actuator is fully retracted): L=S (stroke) + 110mm, distance between two holes when the actuator is fully extended = 2 x S (stroke) + 110mm No Load Speed: 2.5mm/s Operating Temperature: -20℃ to +60℃ Standard Protecting Level: IP54 Built in Stroke Switch Low noise design, noise level lower than 40dB Working Principle: After being reduced by gears, the motor drives a pair of screw rod nuts. Convert the rotational motion of the motor into linear motion and use the forward and reverse rotation of the motor to complete the push rod action. Complex actions such as rotation and shaking can be accomplished through various mechanisms like levers, joysticks or connecting rods. The stroke can be increased or extended by changing the length of the lever arm PackageList: 1 x Linear Actuator

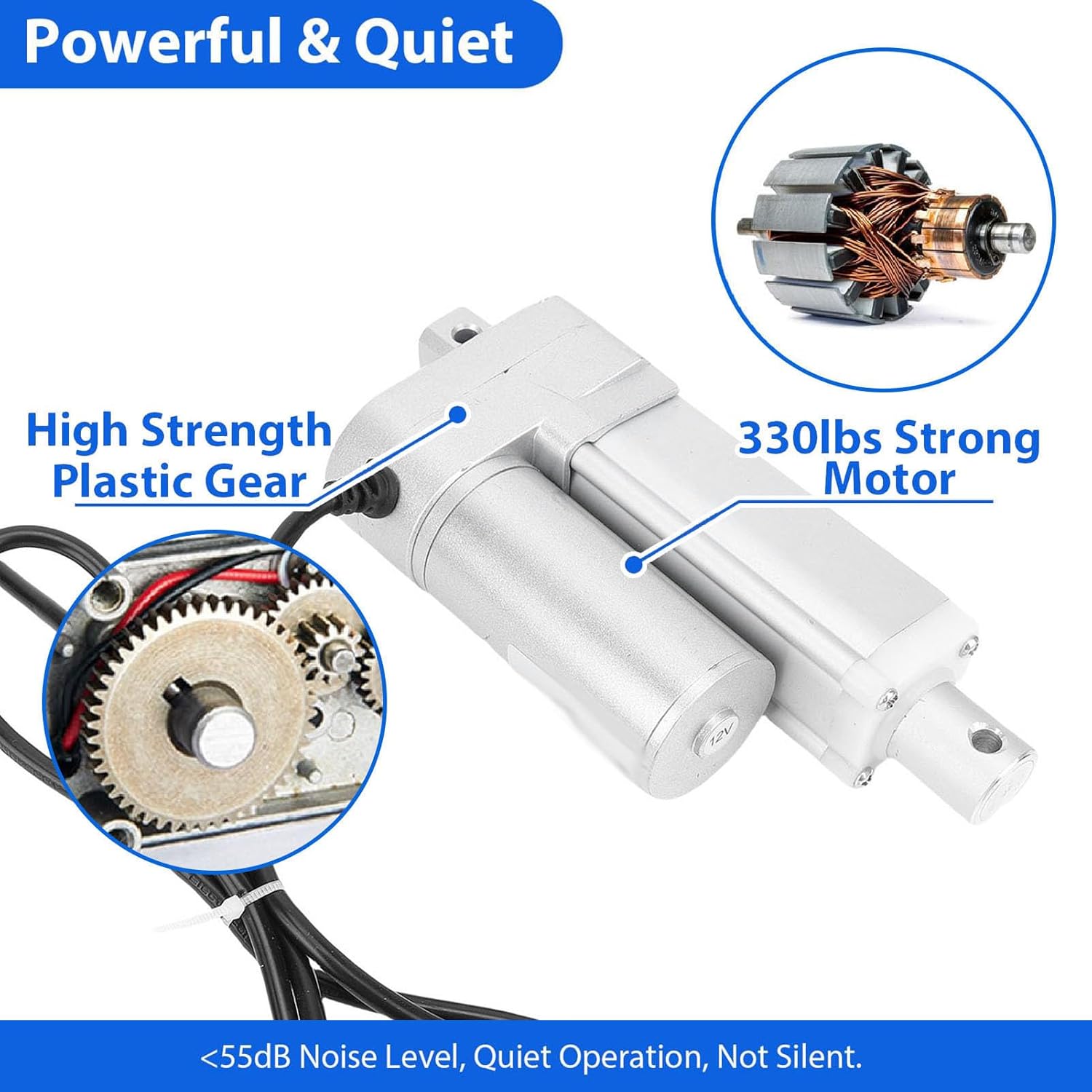

• HEAVY DUTY CONSTRUCTION: The linear actuator is composed of alloy steel shafts and metal gears, capable of pushing and pulling objects weighing up to 330 pounds. Works even better when used in conjunction with a controller (not included), which helps you control the forward and reverse movements of the actuator
• EFFECTIVE PROTECTION: The 1500N linear actuator is equipped with an aluminum alloy housing, has a protection grade of IP54, is dust proof and water proof, and is suitable for outdoor use. Has an internal limit switch that will automatically shut off when the motor idles
• SAFE DESIGN: The electric push rod adopts an upgraded low noise motor (40dB), ensuring smooth and quiet operation, while providing strong self locking force and durability. Equipped with a built in limit switch that can automatically cut off the power supply when fully extended or retracted. The safety lock can be positioned for travel at any position to ensure safe and trusted use
• COMPREHENSIVE SAFETY PROTECTION: The linear motion actuator has overcurrent protection, overload protection, overvoltage protection, overdischarge protection, short circuit protection and shock protection
• VERSATILE APPLICATIONS: Electric push rods can be used as actuating machines in various simple or complex process flows to achieve remote control, centralized control or automatic control. The main uses include electric beds, electric sofas, electric display stand lifting rods, industrial electric lifting systems, camera stands, headshot cameras, and wedding systems
• COMPACT STROKE SPECIFICATIONS: Features a 50mm standard stroke with no load speed of 2.5mm/s, minimum mounting size of stroke plus 110mm when fully retracted, and operates efficiently in temperatures ranging from -20 to +60
