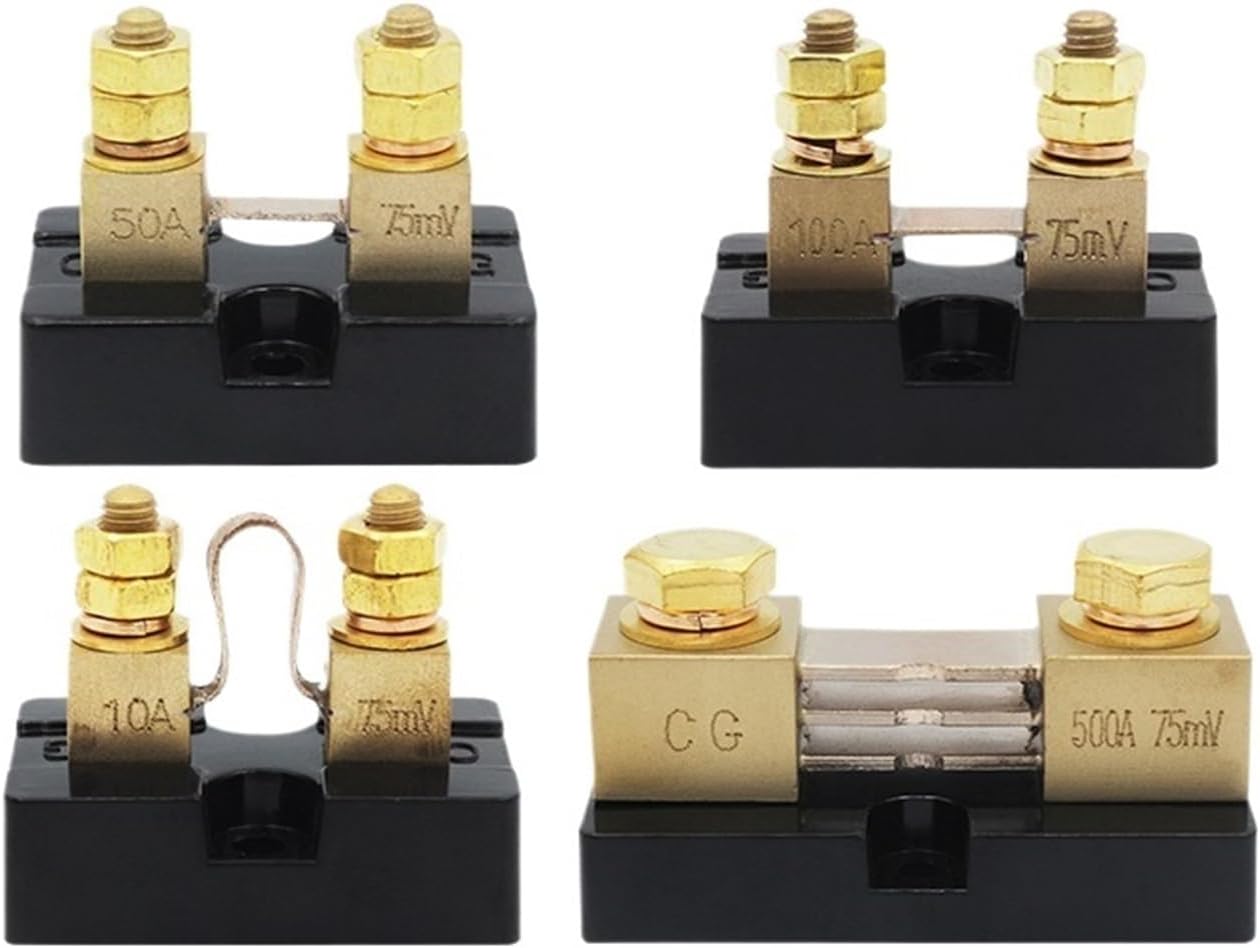

FL-15 DC Current Meter Shunt 5A 10A 20A 50A 75A 100A 300A 400A 500A 600A 50m/V 75m/V 100m/V Analog Ammeter Shunt Resistor(400A,0.25 Class_100MV)

FL-15 DC Current Meter Shunt 5A 10A 20A 50A 75A 100A 300A 400A 500A 600A 50mV 75mV 100mV Analog Ammeter Shunt ResistorProduct parameter:Accuracy Class: 0.25Use environment: -40~60, relative humidity 95% (35)Overload performance: Under the condition of 120% of rated current, stable operation for 2 hoursVoltage drop: 50M/V75M/V100M/VHeating under load: temperature rise tends to be stable, current below 50A 80 , rated current above 50 A 120 Package Include:1pcs* FL-15 ShuntOperating Temperature : -40°C ~+60°CSupply Voltage : DCAccuracy Class : 0.25Model Number : FL-15Display Type : Analog OnlyDIY Supplies : ELECTRICALVoltage Drop : 50m/V 75m/V 100m/VType : DC ShuntMaterial : CopperCurrent : 5A 10A 15A 20A 30A 50A 75A 100A 150A 200A 300A 400A 500A 600A

• 1.Load heating: the temperature rise changes to a stable state.
• 2.This Shunt Resistor is used to multiply the measuring range of current of measuring.
• 3.Could be used either in a Digital or an Analog meter.
• 4.When there is an abnormally high current in a circuit, a shunt resistor can serve to protect other critical components. It can share part of the excessive current and prevent other components from being damaged by overcurrent
