Henkion OTDR Fiber Optic Tester 1610nm 26dB 1310/1490/1550/1577nm Live Fibers TestOPM,LS,OLS,Event Map,Cable Tester,Network Tools,8 Style of Fiber Adapters File Setting/Report

★★★★★ 4.4 105 reviews

$329.92
Price when purchased online
Free shipping Free 30-day returns

Sold and shipped by bitbiashara.com
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
$329.92
Price when purchased online
Free shipping Free 30-day returns

How do you want your item?
You get 30 days free! Choose a plan at checkout.
Shipping
Arrives Apr 15
Free
Pickup
Check nearby
Delivery
Not available

Sold and shipped by bitbiashara.com
Free 30-day returns Details

Product details

Management number 211306801 Release Date 2026/04/04 List Price $131.97 Model Number 211306801
Category

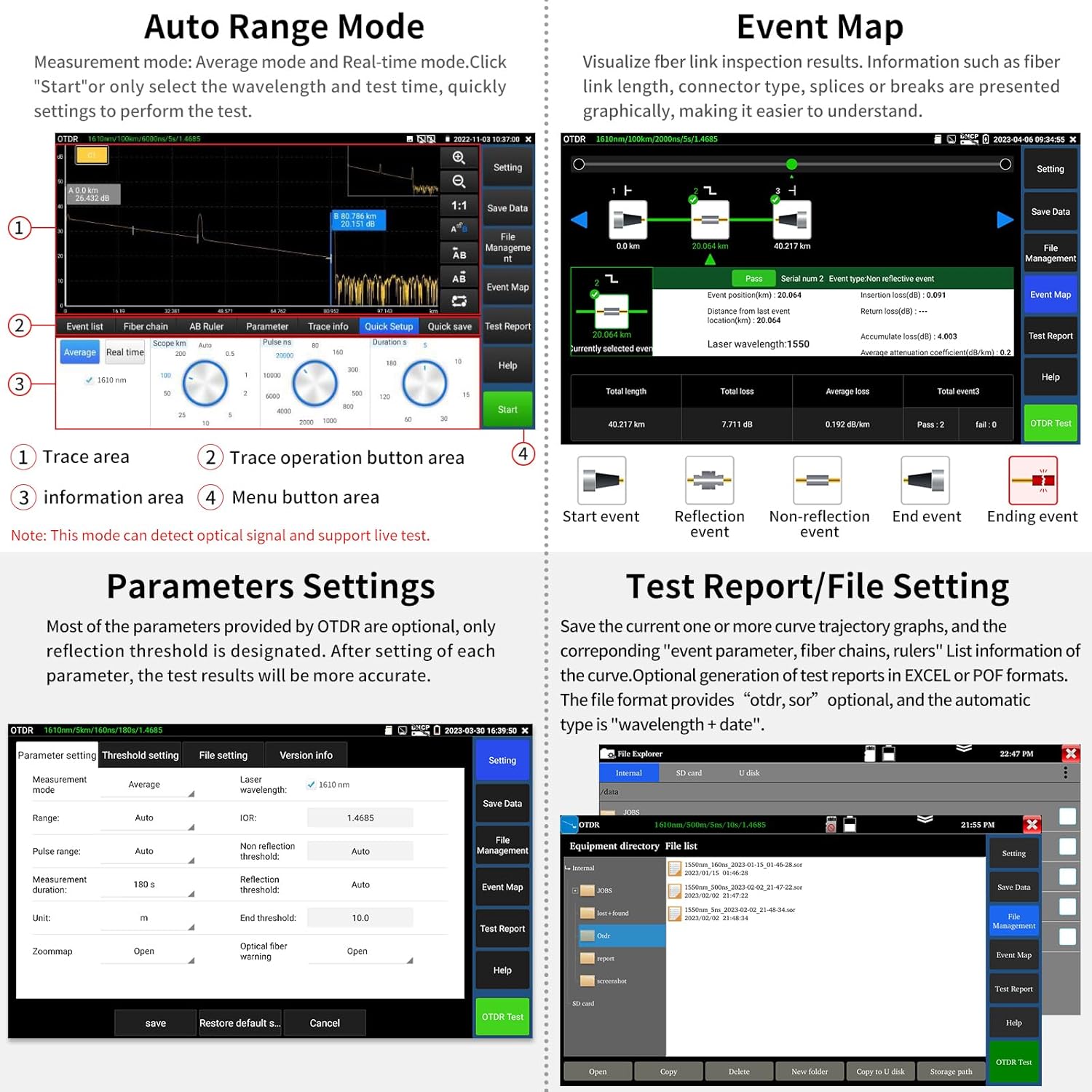

  • 【Intelligent OTDR measurement RSO-51】OTDR fiber optical tester provides wavelength of 1610nm and dynamic range of 26dB,the max test distance 150km.For auto range mode:only select the wavelength and test time,quickly perform the test.For parameters setting mode:Testing after setting parameters distance scope,pulse width,duration of measurement etc.Curvest/map are displayed simultaneously.The 1610nm 26dB Model support 1310/1490/1550/1577nm live test.
  • 【Curve Analysis & Shortest EDZ ADZ & Data Storage】The OTDR fiber tester can analyzes the curve automatially,touch screen zoom or move curves operation.The tested results are displayed in the form of a list.Event list clearly reflects the type of event,distance,loss,decay,reflection. Shortest event dead zone (1.6m) and attenuation dead zone (8m). Save the current one or more curve trajectory graphs ,creat trace reports to the storage path.SOR standard file format PDF/EXCEL.
  • 【 OPM LS OLS Tools 】5.4 inch IPS touch screen OTDR tester,1280x720 resolution. Optical power meter--It is used for optical power testing and Fiber link loss relative measurement. LS--Wavelength: 1310/1550nm, 270Hz/330Hz/1kHz/2kHz. Optical loss test--used to test the insertion loss of optical passive devices.
  • 【Event map & Network Tools】Event map can one key automatic test,and the information such as the length of the optical fiber link to be measured,the type of the joint and the position of the breakpoint are displayed graphically. Powerful network tools to help you detect and set various network parameters. Network test tools IP address scanning, Link monitor, port flashing, Ping test, switch port LLDP detection, PPPOE, FTP file management.
  • 【Cable Tester】Built UTP cable tester, RJ45 TDR cable tester, cable length app. Test UTP cable connection status and display on the screen. Detect the near-end,mid-end and far-end fault point of RJ45 cable connector,also can test shield cable. RJ45 TDR cable tester can test cable pair status, length, attenuation, reflectivity, and impedance, skew etc. measurement range 600meter(about1969fts). Measure the disconnection(open circuit status)position of BNC cables,RJ45 network cables,RJ11 cable etc.

Color Yellow
Model RSO-51 1610nm 26dB
Brand Name Henkion
Style Name RSO-51 1610nm 26dB Live Fiber Tester
Item Weight 1 Kilograms
Manufacturer Henkion
Power Source Power
Included Components 8 style of adapters, cable tester kits, power adapter
