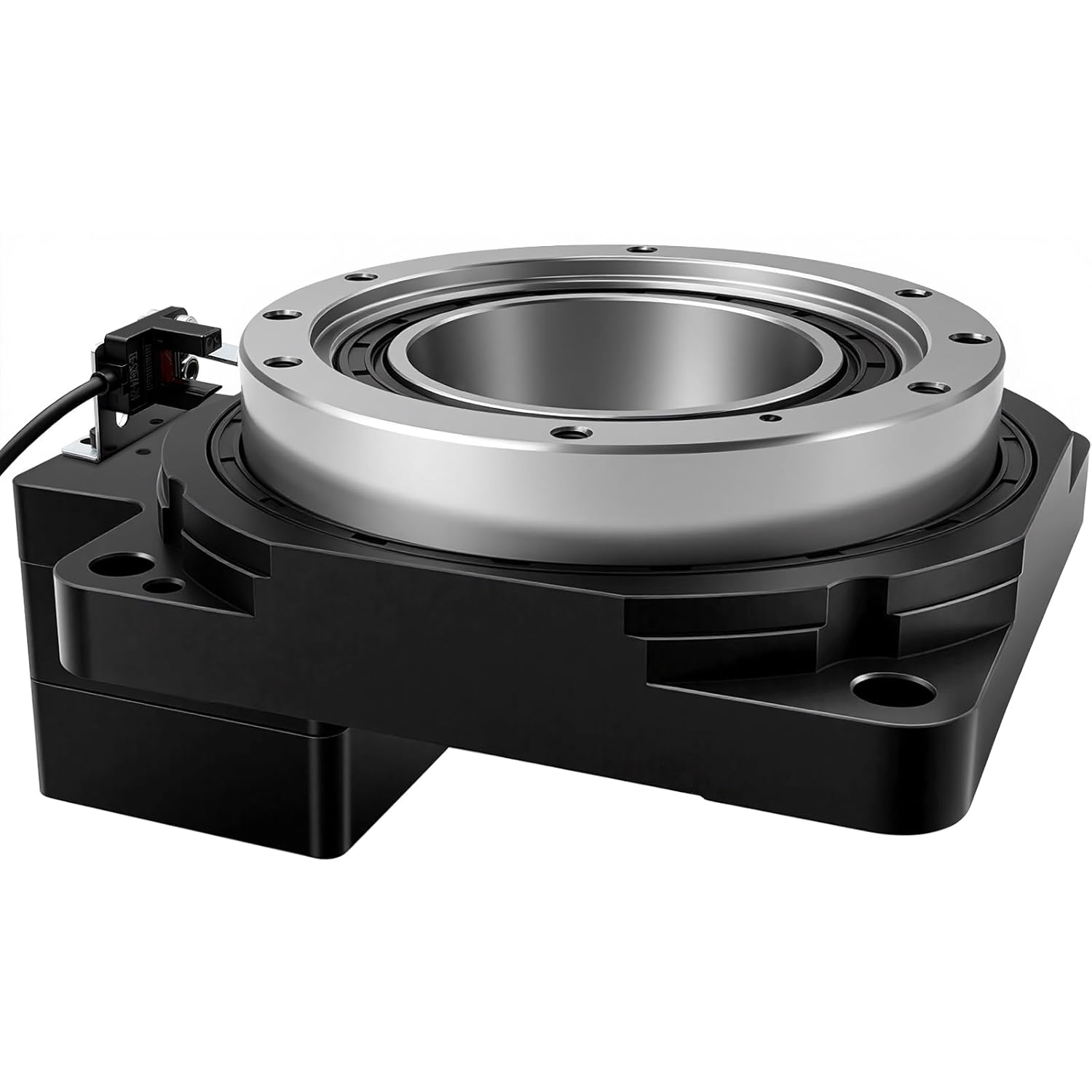

Hollow Rotating Platform Ratio 5:1 High Precision Planetary Gearbox Gear Hollow Rotary Actuator 360 Degree Electric Rotary Table for Nema17 Stepper 40mm Servo Motor
Product details
| Management number | 211318744 | Release Date | 2026/04/04 | List Price | $43.99 | Model Number | 211318744 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- 【High Accuracy Rotating Platform Specifications】Ratio：5 to 1; Positioning accuracy: ≤1 arc-min; Repeated positioning accuracy:≤1 arc-min; Transmission efficiency: 95%;Design load:Ratio 5 to 1 =7 Kg（15 pounds）.
- 【One hollow rotating platform reducer, Two Motor compatible Options，End Compatibility Worries.】 It is compatible with standard Nema 17 stepper motors ( 5mm shaft ). Additionally, a 40mm servo flange plate has been added to facilitate compatibility with 40mm servo motors( 8mm shaft ). After replacing the 40mm servo flange plate, it can accommodate standard 40mm servo motors (50W, 100W). {Note: Compatible with NEMA 17 by default. If compatible with for 40mm Servo, install the provided flange.}
- 【Rotating Platform For Cnc&High Precision Rotating Platform】Achieve precise positioning with a ≤1 arc-min accuracy,ensuring reliable and repeatable results for CNC applications;High Torque Output:Experience a 3 times rated torque output, allowing for the handling of heavy loads and powerful cutting tools.
- 【Compact &Quiet&Highly Flexible】This space-saving platform integrates easily into tight spaces,operates with minimal noise for a better work environment,and features a hollow design for effortless cable routing and direct mounting to streamline installation.

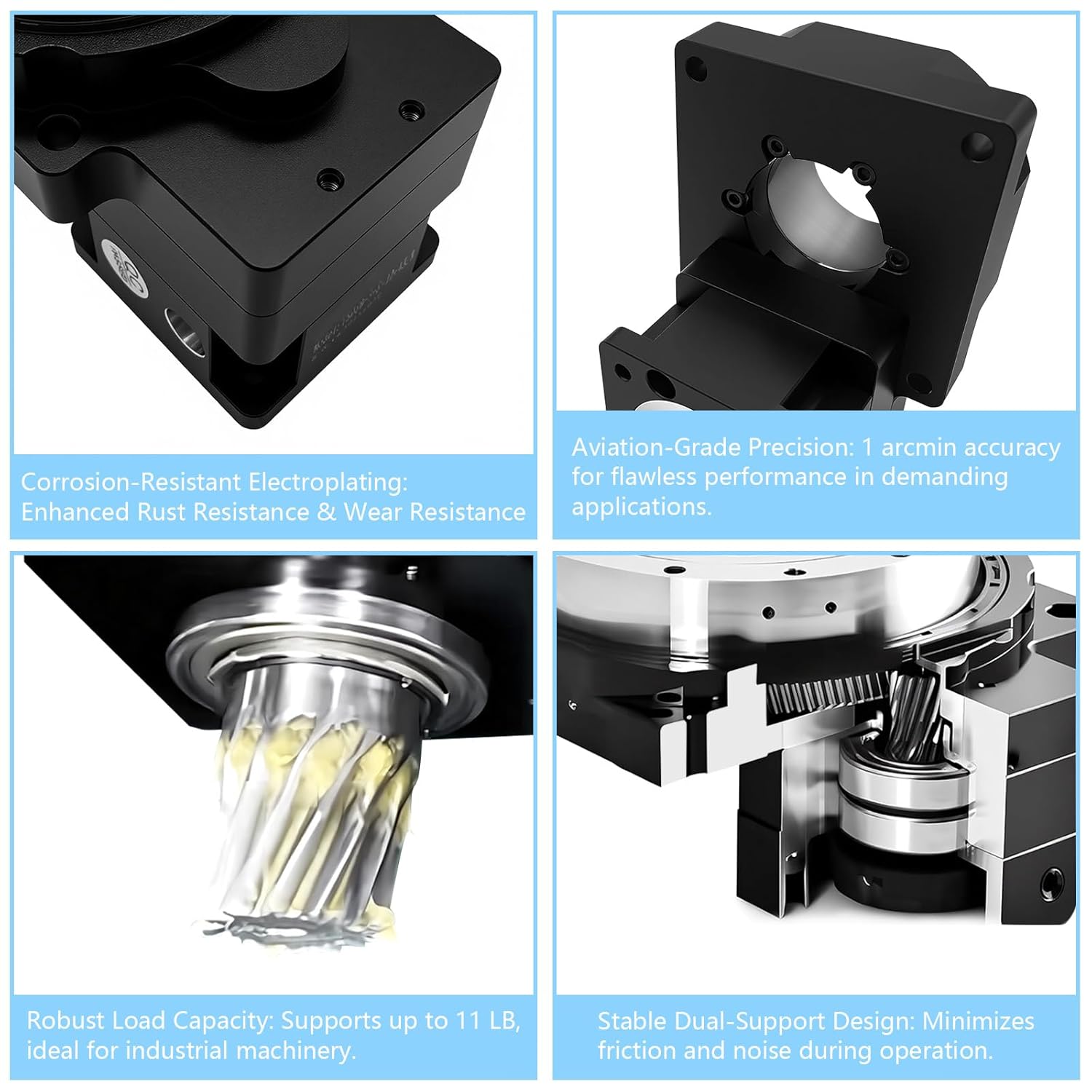

- 【360-Degree Rotating Table-Robust Construction】Constructed with a high-strength aluminum alloy and carburized gearing, the platform withstands heavy loads and rigorous use.This versatile hollow rotary platform is engineered for a wide range of automated applications, from providing precise rotation in robotic arms and CNC indexing tables to enabling high-accuracy positioning in laser cutting systems, automated assembly stations,and precision inspection equipment.
- 【Package Includes】One Hollow Rotary Platform,one 8-to-5mm shaft sleeve adapter,one 40mm servo motor flange,and one Photoelectric sensor[Photoelectric Sensor 674,NPN NO/NC].（Motor is not included.）
| Brand Name | TOSEASTARS |
|---|---|
| Manufacturer | TOSEASTARS |
| Included Components | Hollow Rotating Table/Hollow Rotary Actuator |
