Industrial 2 PoE Ports Gigabit Fiber Media Converter, Boost Voltage Input DC9-57V to 48V Max PoE Output 60W, 1 SFP and 2 RJ45 IEEE802.3af/at 30W Fiber Switch, for Solar Power/RV Truck
Product details
| Management number | 211043661 | Release Date | 2026/04/04 | List Price | $33.60 | Model Number | 211043661 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

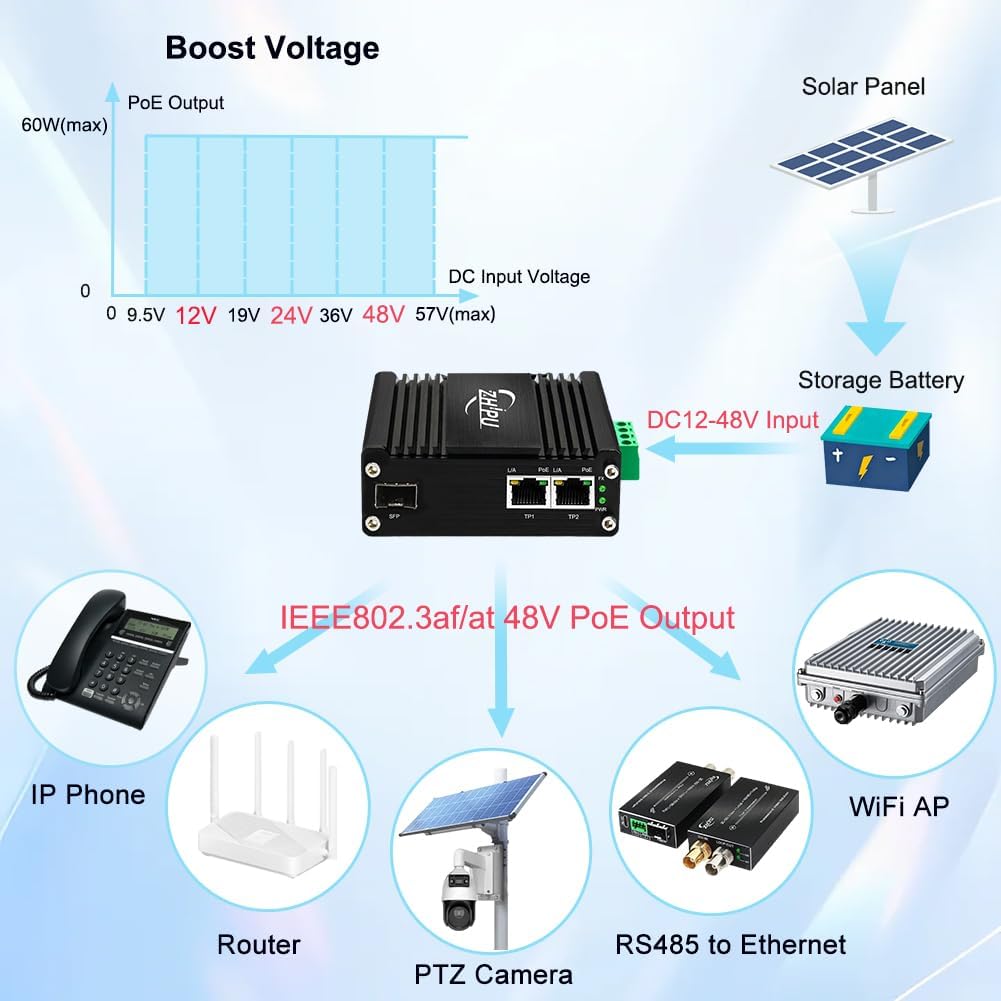

- 【𝐁𝐨𝐨𝐬𝐭 𝐕𝐨𝐥𝐭𝐚𝐠𝐞 𝟗-𝟓7𝐕 𝐭𝐨 𝟒𝟖𝐕】:Supports 9-57V wide voltage DC input for power redundancy, power can up to 60W max, the 2 ports PoE switch can be used for RV Truck/Solar Power/VoIP ect.
- 【𝐈𝐄𝐄𝐄𝟖𝟎𝟐.𝟑𝐚𝐟/𝐚𝐭 𝐏𝐨𝐄 𝐒𝐭𝐚𝐧𝐝𝐚𝐫𝐝】: 𝟗-𝟓𝟖𝐕 𝐭𝐨 𝐏𝐨𝐄 𝟒𝟖𝐕 support 𝐈𝐄𝐄𝐄𝟖𝟎𝟐.𝟑𝐚𝐟 𝐏𝐨𝐄 (𝟏𝟓.𝟒𝐖) and 𝐈𝐄𝐄𝐄𝟖𝟎𝟐.𝟑𝐚𝐭 𝐏𝐨𝐄+(𝟑𝟎𝐖), 30W per port max power can reach 60W PoE output, can meet the power supply requirements of most devices.
- 【𝐀𝐮𝐭𝐨 𝐃𝐞𝐭𝐞𝐜𝐭𝐢𝐨𝐧 𝟏𝟎𝟎/𝟏𝟎𝟎𝟎𝐁𝐚𝐬𝐞-𝐅𝐗】: Equipped with 2 10/100/1000Base-T RJ45 ports with 100/1000M Auto Adaptive SFP Slot.You can use different type of SFP modules (single-mode/multi-mode fiber, 1/2 core) as needed.
- 【𝐑𝐞𝐝𝐮𝐧𝐝𝐚𝐧𝐭 𝐏𝐨𝐰𝐞𝐫 𝐈𝐧𝐩𝐮𝐭】: Supports 8-pin simultaneous power supply (1/2/4/5+, 3/6/7/8-) and POE 𝐌𝐨𝐝𝐞 𝐀/𝐁 output, 2 channel 𝐫𝐞𝐝𝐮𝐧𝐝𝐚𝐧𝐭 𝐩𝐨𝐰𝐞𝐫 𝐢𝐧𝐩𝐮𝐭. Improve the stability and performance of the entire system.

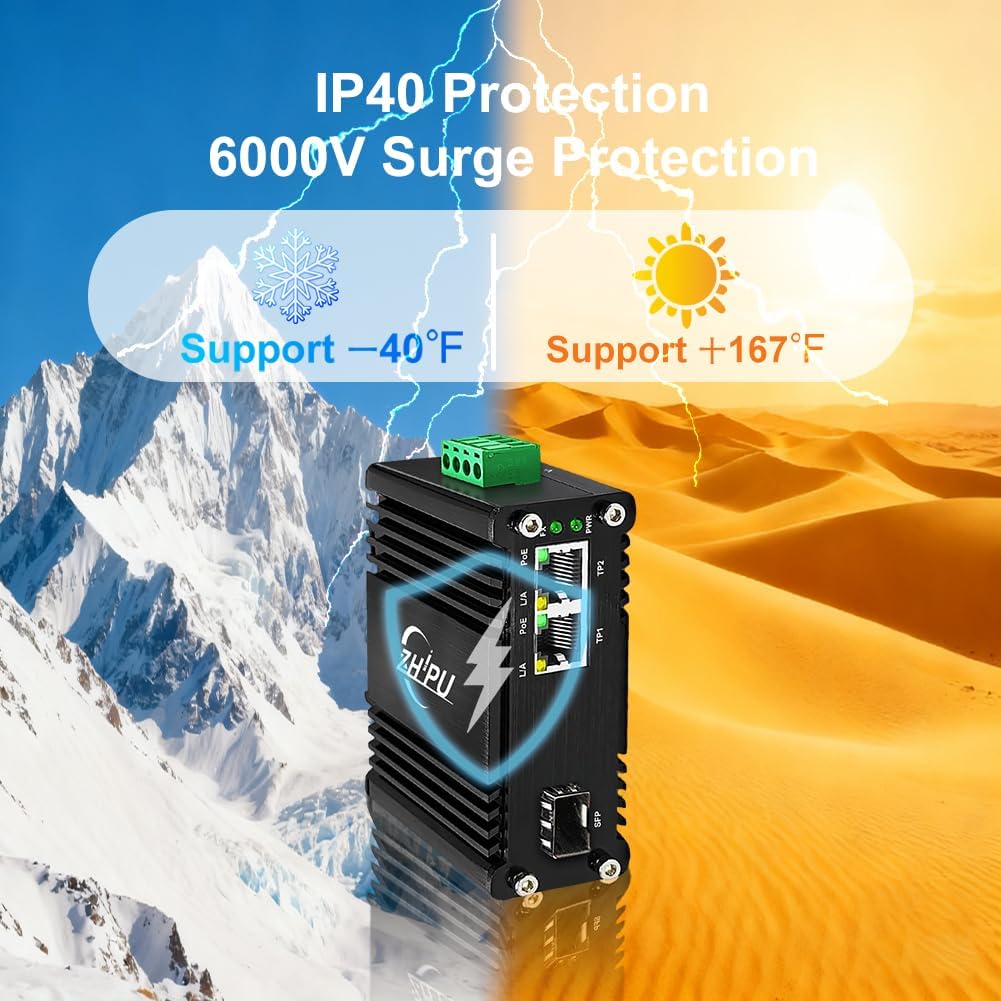

- 【𝐈𝐏𝟒𝟎 𝐈𝐧𝐝𝐮𝐬𝐭𝐫𝐢𝐚𝐥 𝐆𝐫𝐚𝐝𝐞 𝐐𝐮𝐚𝐥𝐢𝐭𝐲】: 6000V surge protection capability, being able to operate under the temperature range from - 40°F to 167°F. Small size 𝟑.𝟕𝟒*𝟐.𝟕𝟔*𝟏.𝟒𝟐𝐢𝐧(90*70*36mm), suitable for monitoring confined spaces.
| Brand Name | Htfoevrxs |
|---|---|
| Manufacturer | Xinsonghuitong |
| Material Type | Aluminum |
| Mounting Type | DIN Rail and Wall Mount Installations |
| Number of Channels | 2 |
| Included Components | Converter*1, User's Manual, L-shape wall mount braket*1 |
| Item Dimensions L x W | 3.74"L x 2.76"W |
| Maximum Supply Voltage | 57 Volts |
| Minimum Supply Voltage | 9.5 Volts |
| Upper Temperature Rating | 167 Degrees Fahrenheit |
