Inovonics 568 SOFIA FM/HD Radio SiteStreamer+

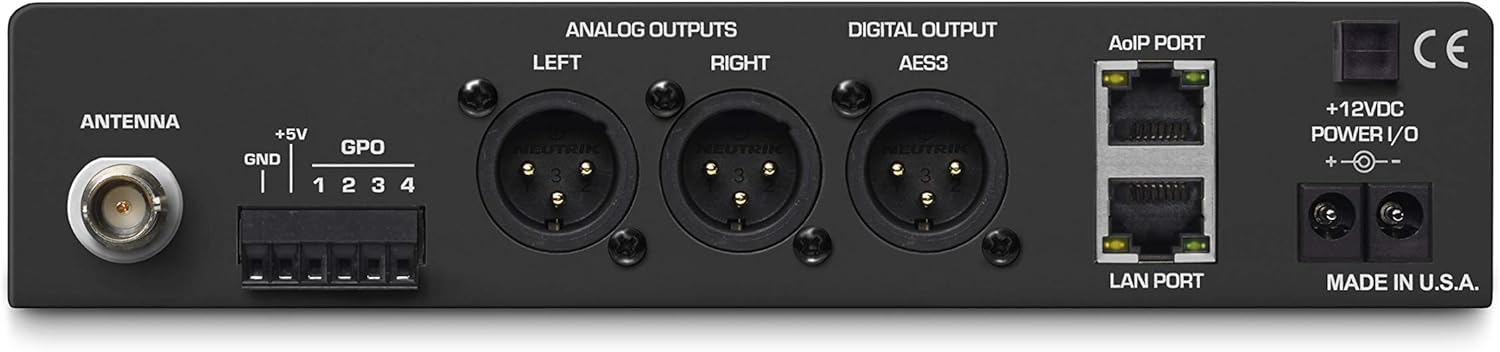

HD Radio SiteStreamer+ The SOFIA 568 provides analog, AES3-digital and AoIP-streaming audio outputs. It collects histograms of signal parameters and displays HD Radio album artwork, station logos and similar visuals via the Web interface. Multiple stations can be sequentially monitored using the programmable StationRotation feature. The SOFIA 568 includes a built-in BandScanner, a real-time clock and full SNMP functionality. The elite SiteStreamer+ (‘Plus’) series offers advanced features for the most critical monitoring situations. SiteStreamers also deliver important RF and audio signal measurements and dispatch email or text-message alarms for out-of-limits conditions and other reception errors. Additional features: FRONT-PANEL ALARMS AND/OR REAR-PANEL ‘TALLIES’ INDICATE AUDIO LOSS, LOW SIGNAL, RDS ERRORS AND HD RECEPTION LOSS. ‘SPLIT MODE’ AUDIO MONITORING AIDS TRANSMISSION DIVERSITY DELAY SETUP. WHEN ISSUED, FREE FIRMWARE UPDATES ARE EASILY INSTALLED IN THE FIELD OR REMOTELY THROUGH THE WEB INTERFACE. THE HALF-RACK PACKAGE FEATURES AN OLED HI-RES GRAPHIC DISPLAY, WIDE-RANGE LED LEVEL METERS AND INDIVIDUAL ALARM LEDS WITH REAR-PANEL TALLIES. REAL-TIME CLOCK HAS BATTERY BACKUP. SNMP UTILITY IS FULLY SUPPORTED. GPOS MAY BE USER-ASSIGNED TO SPECIFIC ALARM FUNCTIONS. FULLTIME OFF-AIR PROGRAM AUDIO IS AVAILABLE SIMULTANEOUSLY AS L/R-ANALOG, AES3-DIGITAL AND DANTE-BASED AES67 AOIP STREAMING, ALL WITH ADJUSTABLE LEVELS, PLUS A MULTI-LISTENER INTERNET IP STREAM AND FRONT-PANEL HEADPHONE JACK. THE SOFIA 568 INTERNET-LISTENING STREAM SUPPORTS UP TO 10 LISTENERS AT ONCE. ENHANCED ALARM LOGGING INCLUDES THE DURATION OF EACH ALARM, AND THERE IS VIRTUALLY NO LIMIT TO THE NUMBER OF ALARMS THAT CAN BE LOGGED. DOWNLOAD A COMPLETE LOG RANDOMLY, OR AUTOMATICALLY DAILY, WEEKLY OR MONTHLY.

• INSTALL THE SITESTREAMER WITHIN THE RECEPTION CONTOUR OF YOUR STATION AND MONITOR OFF-AIR ANALOG FM OR HD RADIO SIGNALS (HD1-HD8) VIA THE WEB FROM ANYWHERE IN THE WORLD.
• THE BUILT-IN BANDSCANNER DISPLAYS A SPECTRUM PLOT OF THE ENTIRE FM BAND (OR A USER-SELECTED PORTION) AND IDENTIFIES HD RADIO TRANSMISSIONS.
• GIVES LOCAL AND REMOTE READOUT OF ALL PERTINENT FM/RDS AND HD/PAD DATA.
• EASY FRONT-PANEL SETUP USES JOG-WHEEL MENU NAVIGATION AND THE FRONT-PANEL READOUT. THE CORRESPONDING WEB INTERFACE OFFERS A DETAILED PRESENTATION AND ADDITIONAL OPTIONS.
• STAYS ON-CHANNEL AND ON-MODE THROUGH SIGNAL AND POWER LOSS; DOES NOT AUTO-BLEND BETWEEN FM AND HD LIKE A CONSUMER RADIO.
