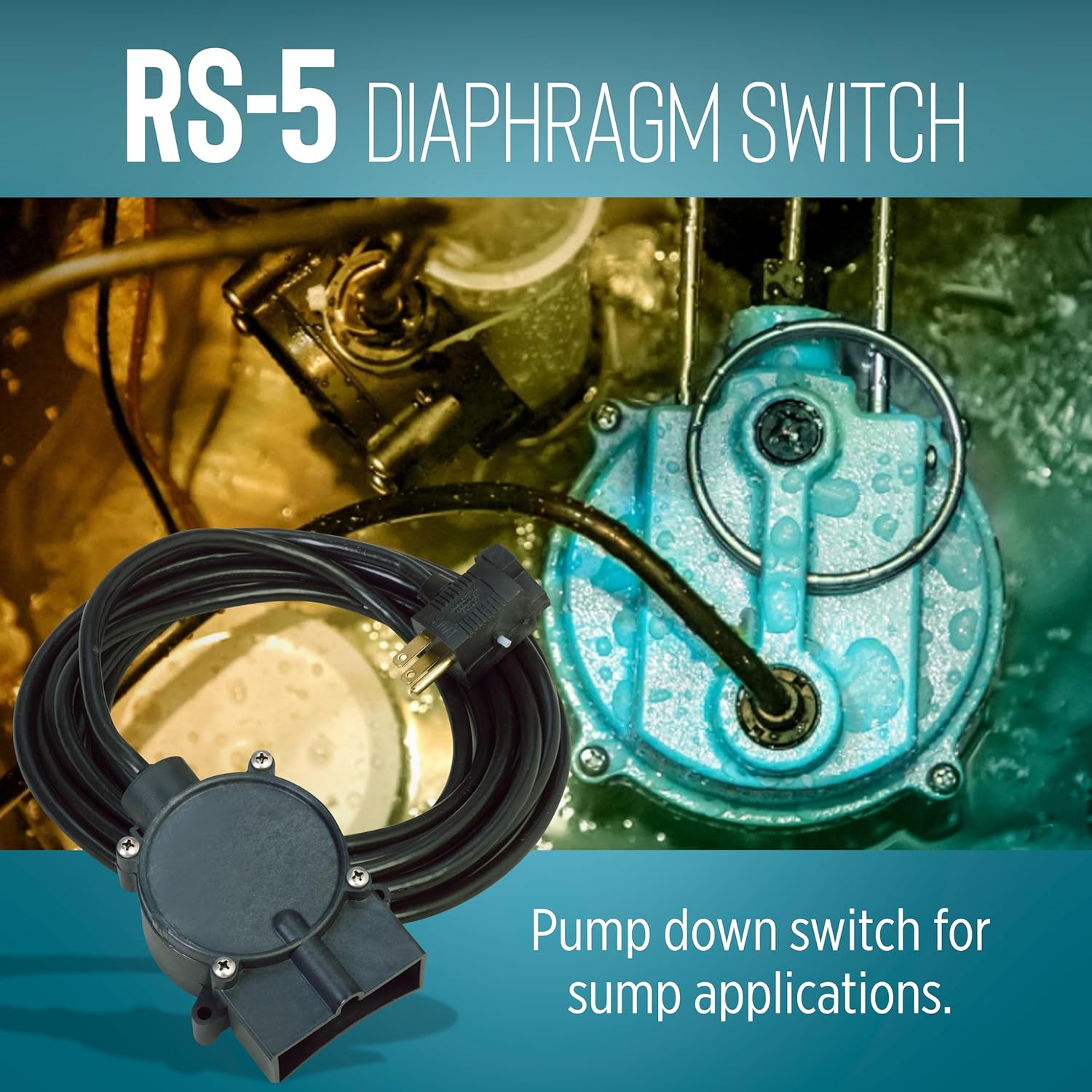

Little Giant RS-5 115-Volt Piggyback Diaphragm Pump-down Switch for Sump or Utility Pumps, 10-Ft. Cord, Black, 599008
Product details
| Management number | 210142243 | Release Date | 2026/04/02 | List Price | $26.52 | Model Number | 210142243 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Product Description Little Giant's piggyback diaphragm switch converts any manual pump up to 1/2 HP (115V, 15 maximum running Amps) to automatic operation. Includes a 10-foot power cord. Designed to operate in water the compact design works well in limited space. The switch can be used by attaching it to the the discharge pipe to control on-off operation of the pump. The switch is activated by pressure to a diaphragm, caused by rising water around the switch housing. The switch activates the pump when water reaches 8 inches and shuts the pump off when water falls to 2 inches (+/- 0.5 inches). This switch is ideal for use with sump pumps. Note: the power cord contains a breather tube. Be sure power cord is not pinches so that the breather tube doesn't get obstructed. Non-restrictive air flow is required for proper operation. From the Manufacturer Piggyback Diaphragm Switch

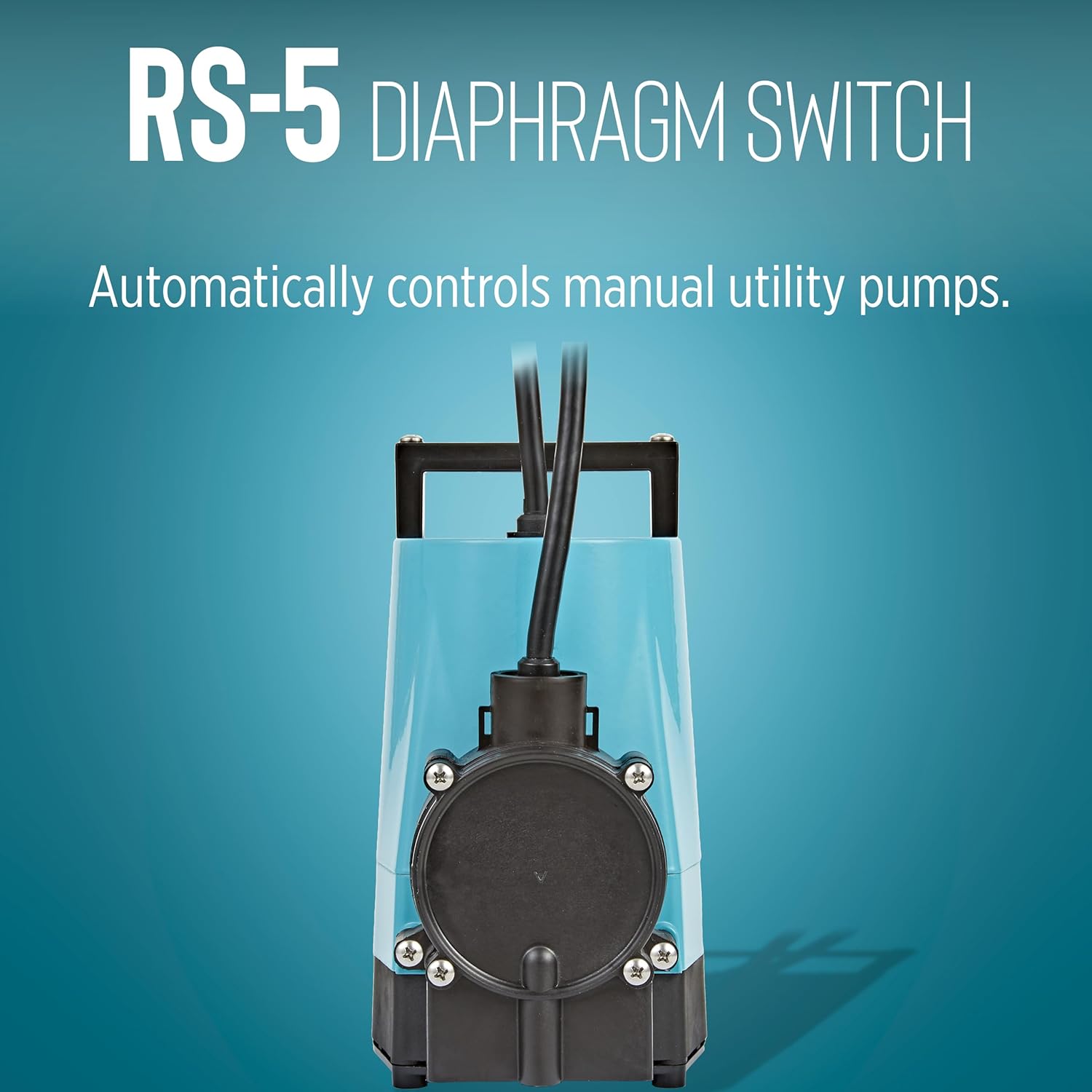

- APPLICATIONS: the Little Giant RS-5 switch converts manual pumps up to 1/2 HP to automatic operation; ideal for sump, utility, flood or pond pumps;
- EASY INSTALLATION: equipped with a piggyback plug for easy installation; plug the pump's plug into the back of the switch plug and plug the switch into the wall outlet

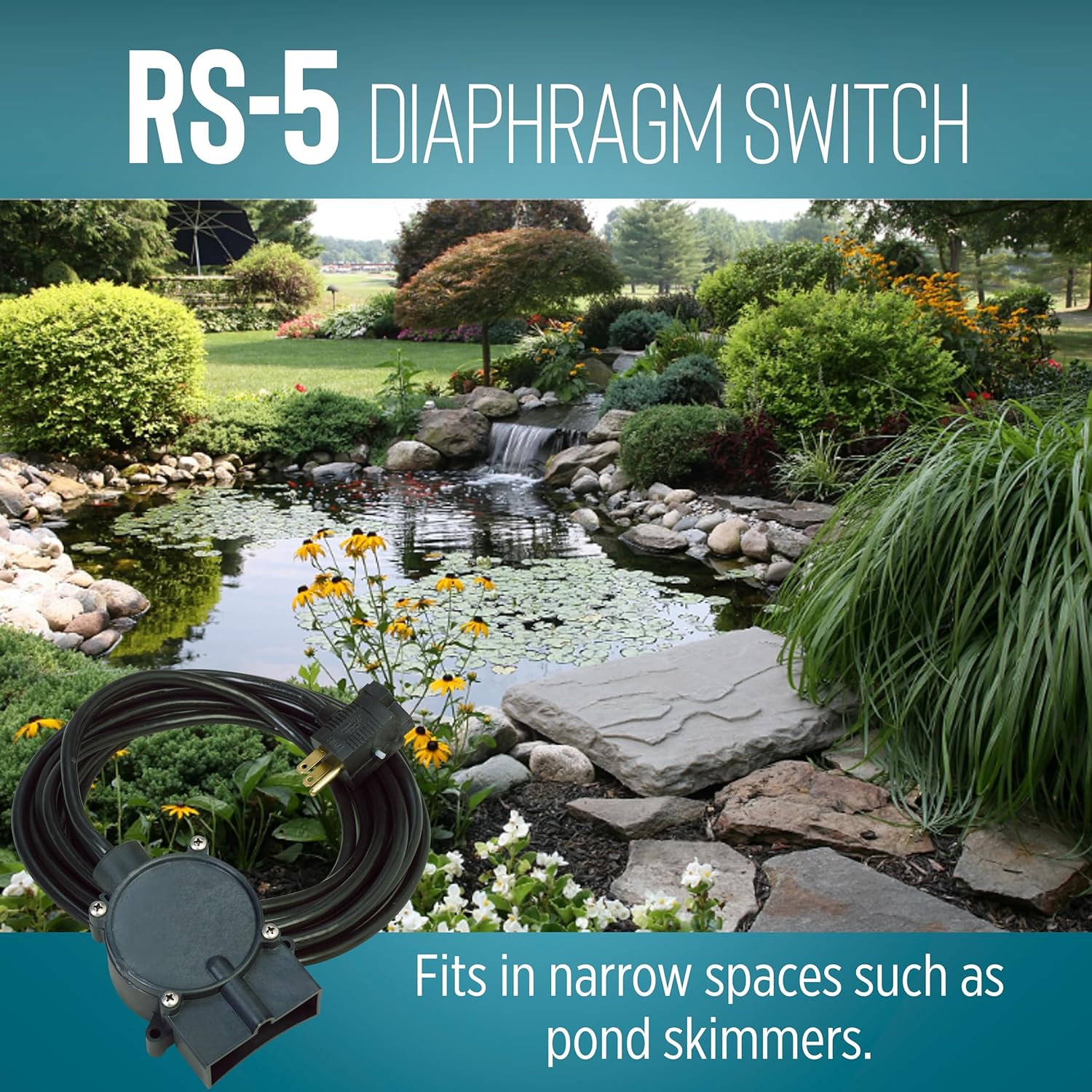

- COMPACT DESIGN: ideal for confined spaces such as narrow sump pits or basins, 5 gallon pails and other small spaces
- ON/OFF LEVEL: Pump activates when water reaches 8 inches and shuts off when water falls to 2-inches (+/- 0.5 inches); override automatic operation by plugging pump directly to wall outlet
- SPECIFICATIONS: 10-foot power cord; 115-Volt; Maximum 15 Amps (Running), 1/2 HP, CSA listed in the USA; 3.031 inches x 1.7 inches x 4.75 inches high
| UPC | 010121990081 |
|---|---|
| Color | Black |
| Voltage | 115 Volts |
| Brand Name | Little Giant |
| Unit Count | 1.0 Count |
| Item Weight | 1.03 Pounds |
| Manufacturer | Franklin Electric Co., Inc. |
| Model Number | 599009 |
| Power Source | Corded Electric |
| Material Type | Nylon |
| Product Style | Sump |
| Item Type Name | RS-5 115-Volt Piggyback Diaphragm Pump-down Switch for Sump Pumps, 10-Ft. Cord |
| Included Components | Diaphragm Switch with 10-ft. Cord, Instruction sheet |
| Item Dimensions L x W x H | 3.03"L x 1.7"W x 4.75"H |
| Manufacturer Warranty Description | 1 year manufacturer |
| Global Trade Identification Number | 00010121990081 |
