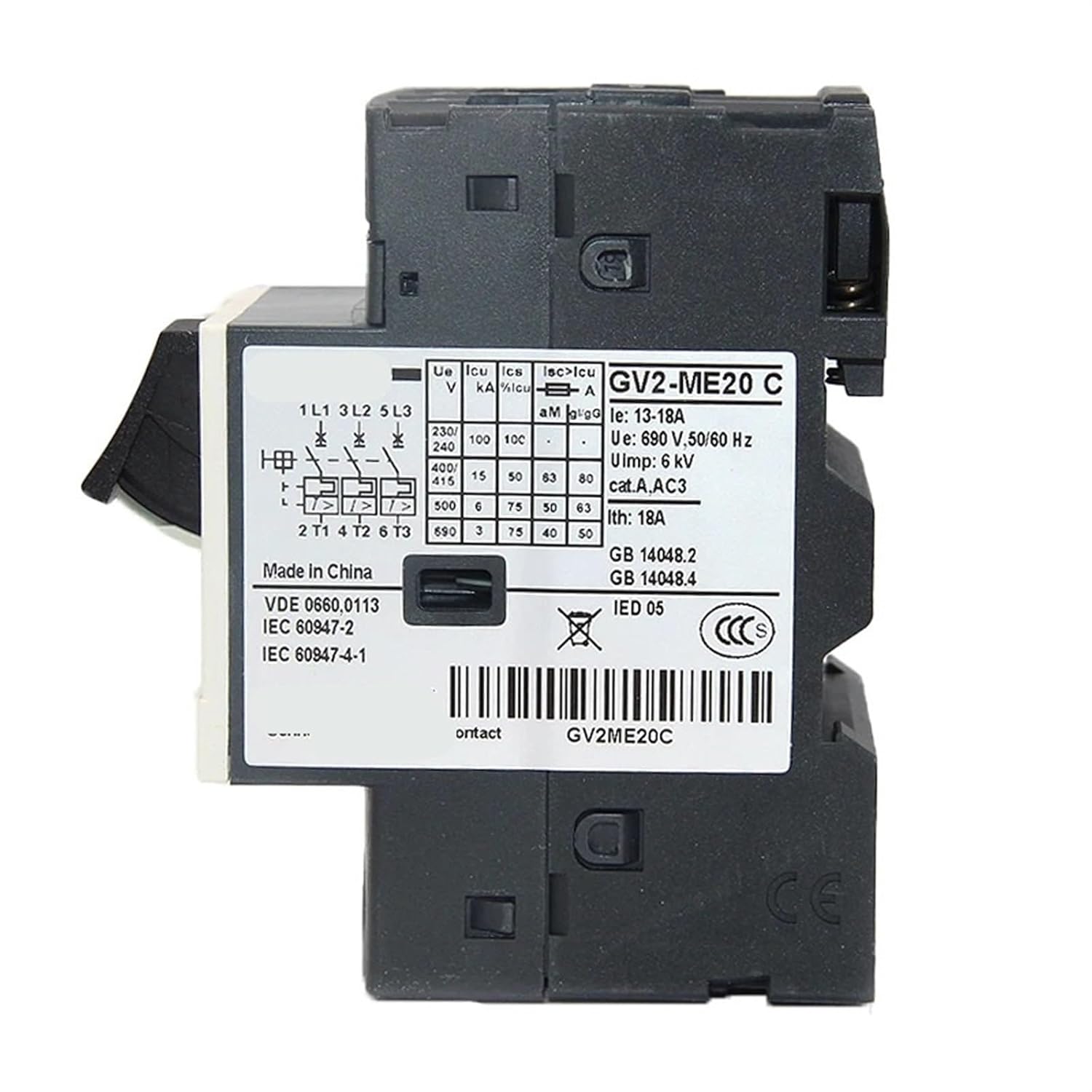

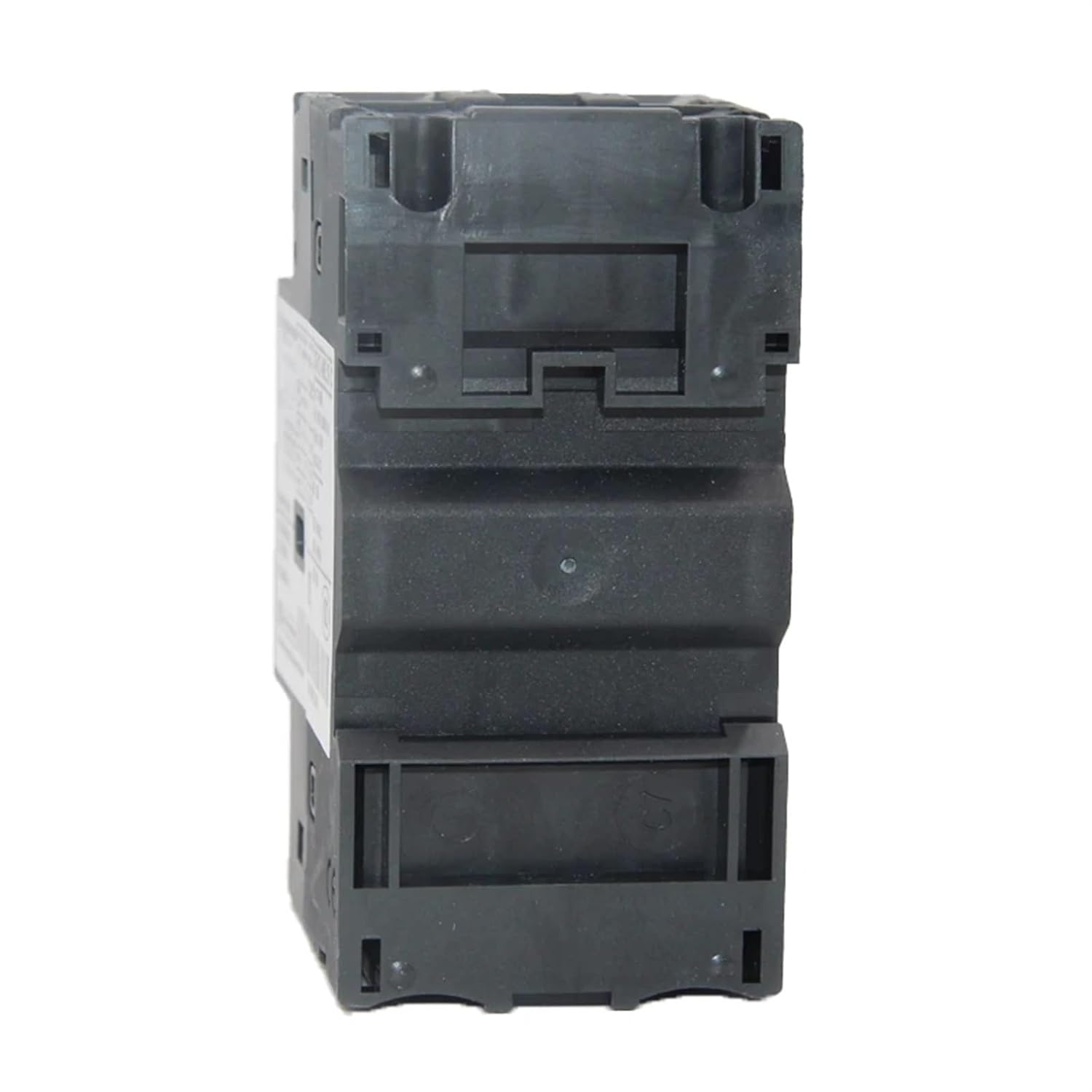

Motor Thermal Magnetic Circuit Breaker Button 3P GV2ME20C Motor Protection Switch Setting Current Range 13-18A 100KA 1Pcs

Hydraulic-Magnetic Circuit BreakersDimensionscircuit diagramPerformance curvemain informationProduct TeSysproduct nameGV2Product short nameGV2MEproduct typebreakerApplicationsMotor protectionPole number3PAdditional informationNetwork TypeACNetwork frequency50/60 Hz conforming to IEC 60947-2Control type(Push type) buttonInstallation methodRail mountingInstallation locationVertical andhorizontalMotor power (kW)9 kW at 440 V AC 50/60 Hz9 kW at 415 V7.5 kW at 400 V4 kW at 230 VRated current [In]18 AType of releaseThermomagneticElectromagnetic tripping current223 AThermal overload protection setting range13 18 AIsolation functionApplicable to IEC 60947-1 § 7-1-6Mechanical shock resistance0.5 J IK04Phase loss sensitivityComplies with IEC 60947-4-1 § 7-2-1-5-2Use categoryAC-3 conforms to IEC 60947-4-1AC category conforms to IEC 60947-2Rated working voltage [Ue]690 V AC 50/60 Hz conforming to IEC 60947-2Rated insulation voltage [Ui]600 V AC 50/60 Hz conforming to UL 508690 V AC 50/60 Hz conforming to IEC 60947-2600 V AC 50/60 Hz conforming to CSA C22.2 No 14Rated impulse withstand voltage [Uimp]6 kV conforming to IEC 947-2Power consumption per pole2.5 WMechanical life100000 timesElectrical life100000 cycles of AC-3 at 440 V In100000 cycles of AC-3 at 440 V In / 2Maximum conversions25 cyc / hspecified loadContinu
