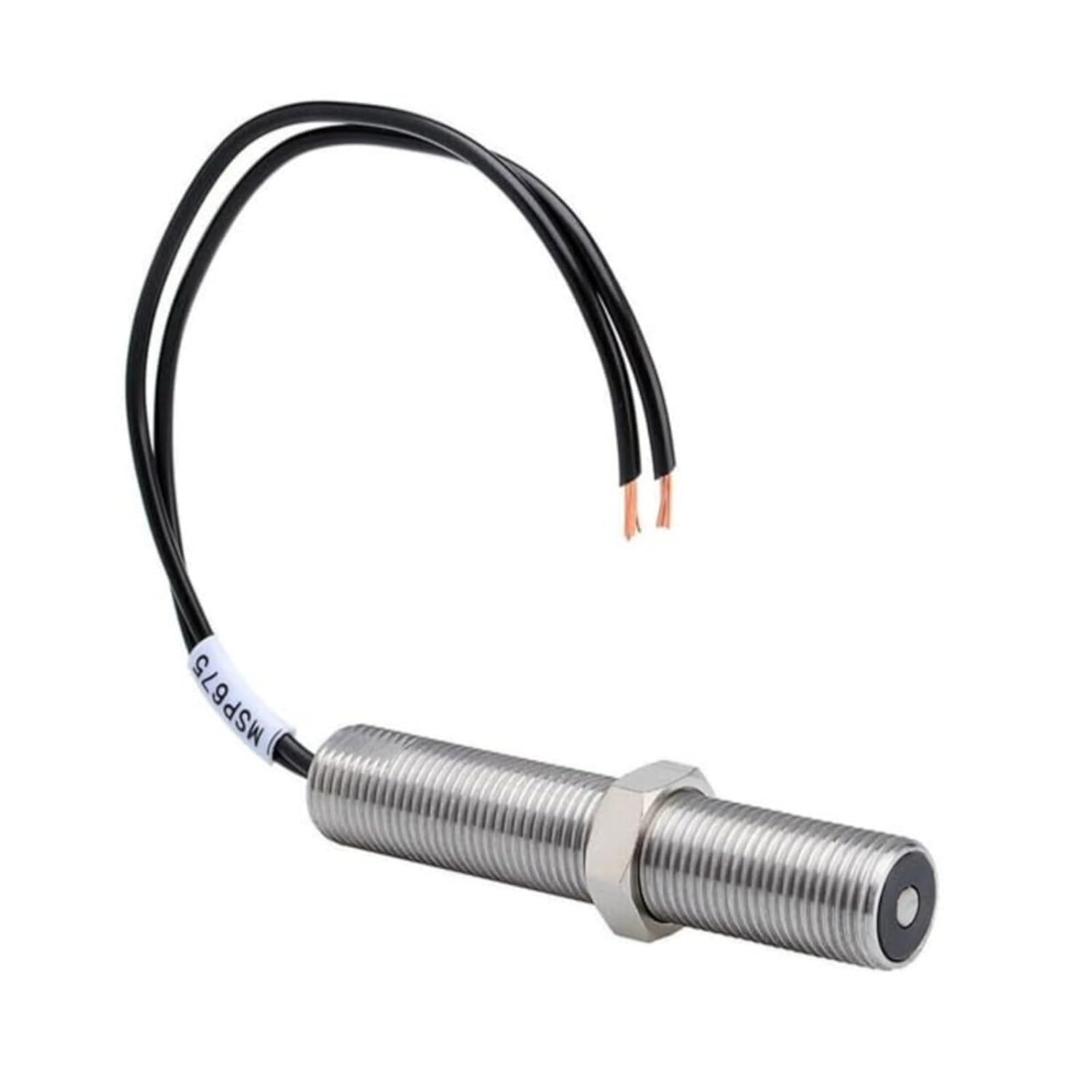

MPU MSP675 5/8-18 UNF Speed Sensor Diesel Generator Magnetic Pickup Sensor

MPU MSP675 5/8-18 UNF Speed Sensor Diesel Generator Magnetic Pickup Sensor * The magnetic speed sensor is mounted inside the engine's ring gear case or flywheel bell housing. * The threaded hole of the speed sensor should be perpendicular to the crankshaft centerline and centered on the ring gear teeth. There should be a hole face to provide a flat to secure the lock nut. With the engine stopped, screw the speed sensor in until it contacts the gear teeth, then turn it back 3/4 turn and secure it with the lock nut. Any iron gear can be used as long as the frequency and amplitude of the signal produced meet the specifications of the speed control unit. * The wire should be twisted throughout its length from the magnetic speed sensor to the control unit. * Do not connect any of the speed sensor wires to any device other than the speed control unit being used. * The shield should not be connected to the speed sensor end. Specifications: Part Name: Speed Sensor Model: MSP675 Material: Stainless Steel Color: As shown Range: 50-5000Hz Temperature Range: -20℃ Celsius to 60℃ Pickup Length: 3.125 inches Thread Length: 2.75 inches Length: 7.00 inches Thread Size: 5/8-18 UNF-2A Drill Bit Size: 37/64 Package Contents: 1 X MSP675 Speed Sensor Note: 1.The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness. 2.Please allow slight manual measurement deviation for the data.

• Thread Length: 3.19in [81mm]
• Harness Length: 7in [178mm]
• MPU MSP675 5/8-18 Generator Magnetic Pickup Speed Sensor for Engine
