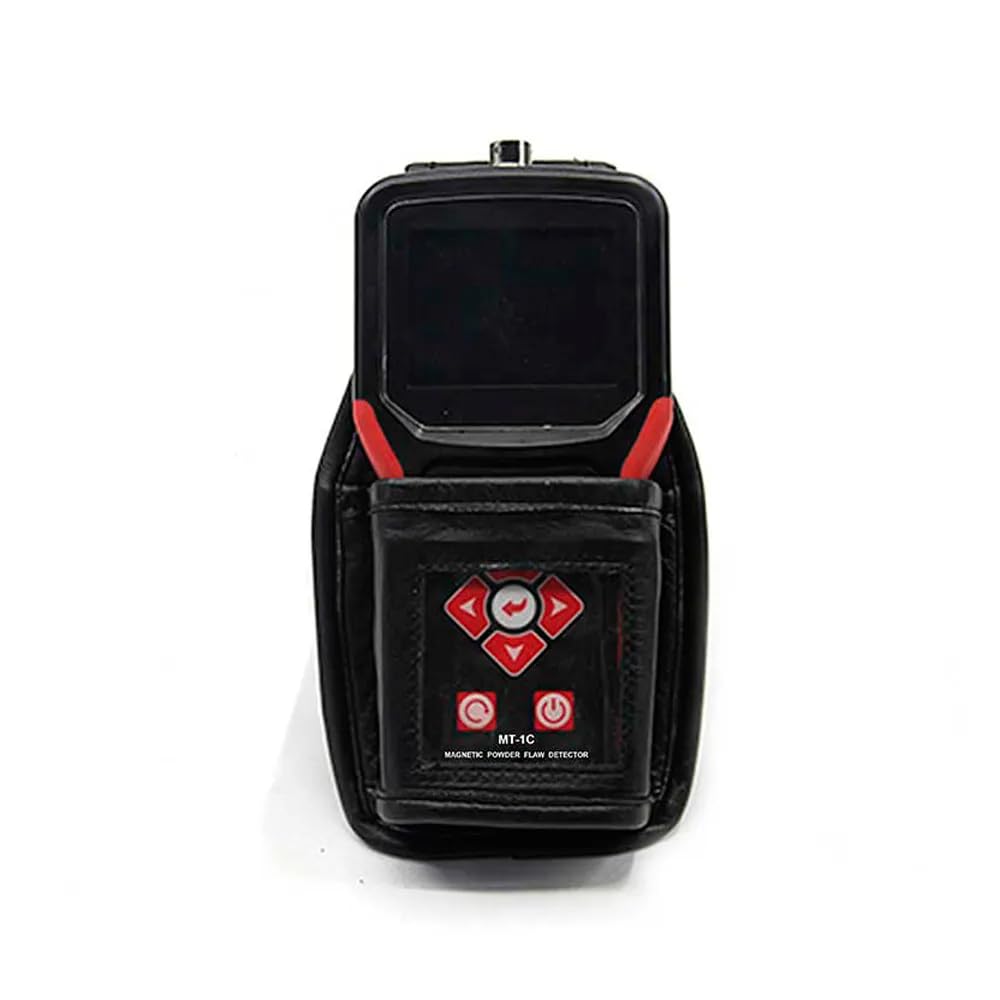

MT-1C Magnetic Particle Flaw Detector Digital Portable Magnetic Particle Flaw Detector

Working Principle:-Put the workpiece into high-intensity magnetic field, connect electric to make it magnetized, if there are flaws (crack,slag) in or near the surface, there will be a leakage around the flaws.-Put good quality magnetic powder(usually the magnetic iron oxide powder)on the object, magnetic powder will gather together near the leaked magnetic field, piled up to form visible traces of magnetic powder.-In the proper light, we can see the marks and judge the position, size, shape and degree of the flaws.Working Conditions:Operatiom temperature: -10℃~+40℃Storage temperature: -20℃~+70℃Relative Humidity: ≤80%The environment should avoid strong vibration, magnetic interference, corrosive medium and heavy dust.Specifications:Lighting:White/FluorescentDimension:204mm×100mm×36mmMain unit:0.75 kgScreen dimension:3.2 inchWorking voltage:DC 15v-21vOutput curve:AC current waveProbe dimension:174mm×162mm×38mmPolar distance:75-200mmYoke weight:1.5kg(including line)Cable line length:1.2m(as you required)Lifting force:>45N(no less than 5KG)Complex sensitivity:Notch clear on A1 15/100 standard specimenContinuous working hours:>4 hoursBattery dimension:79mm×58mm×18mmLi-battery weight:0.52kgBattery voltage:18vBattery capacity:8400mAhCharging limited voltage:21vPower supply:220v 50HzWhite light illumination:>1000lxDistance between light and workpiece:365nm100mmFluorescence center wavelength:365nmFluorescence amplitude:>1000μw/cm²PackingMain unitMagnetic yokeCable lineChargerWaist packAttached files

• Portable high-capacity lithium battery pack without limitation of 220V power supply. With low power consumption and small volume, charging either online or offline. It is especially proper for working in the wild and aerial area.
• Adjustable illumination brightness and working power can meet different testing demand and save the setting.
• New power supply can enhance the testing depth and sensitivity.
• Pulse power supply can continuous work without chill time.
• Combine all traditional advantages in one unit can detect surface flaws fast, clearly and accurately.
• Adjustable brightness, power and range can meet different demand.
• Small size with equipped bag can improve working efficiency.
