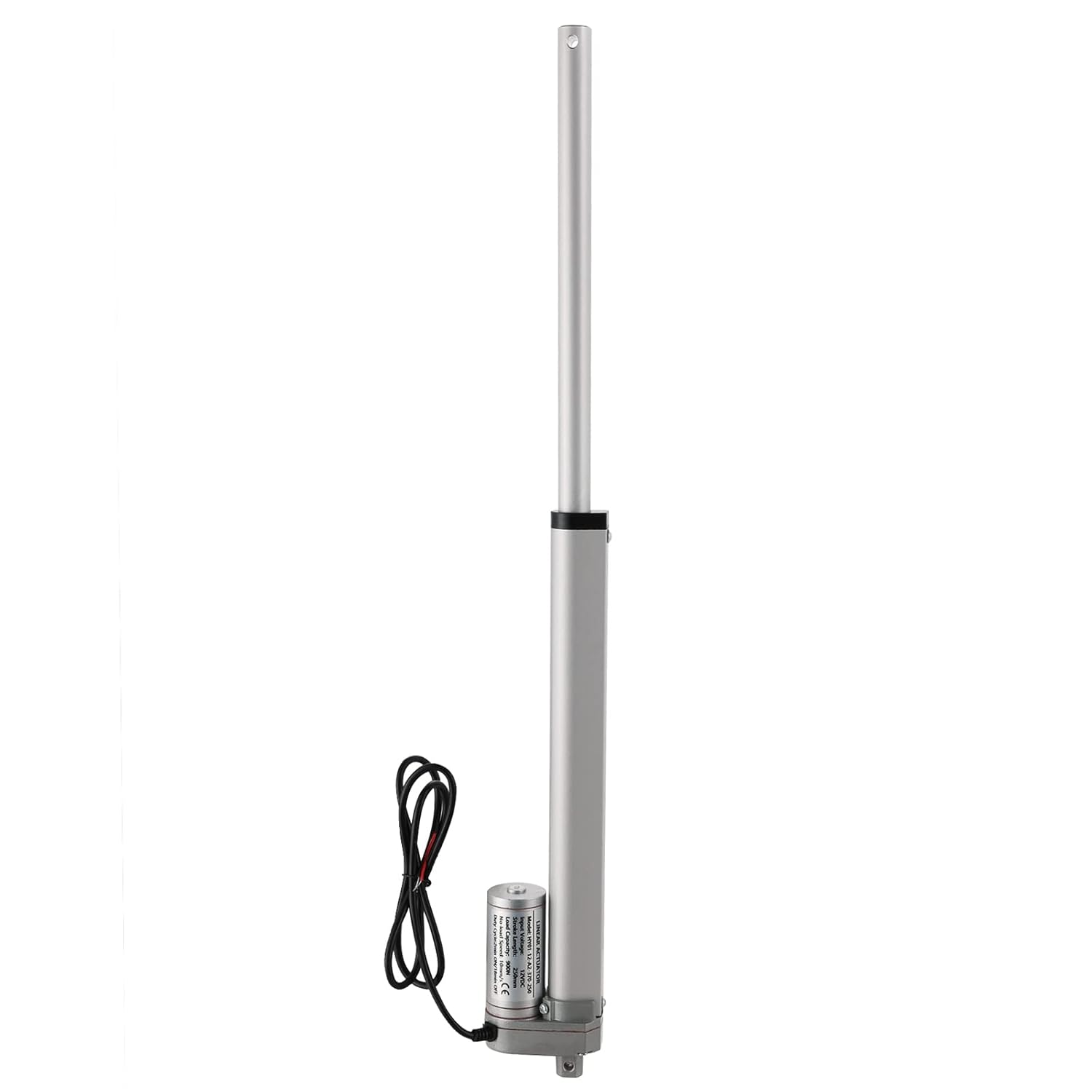

MYFULLY Electric Stroke Linear Actuator | DC 12V Heavy Duty 12" Linear Actuator Motor with Mounting Bracket 900N(202lbs) Max. Lift 10mm/s for Auto Car RV Electric Door Opener (300MM Stroke Length, 1)
Product details
| Management number | 211204675 | Release Date | 2026/04/04 | List Price | $13.20 | Model Number | 211204675 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Heavy Duty Electric Actuator: Made of aluminum alloy, plenty of power unit allows it to push and pull up to 900N/225lbs. Low noise design, less than 50dB. IP54 protection against dust, water, and corrosion, not like others, we contains the mounting brackets.
- Linear Actuator Specification: Travel speed = 0.39 inches/sec (10 mm/s); Input Voltage: 12V DC. Rated power: 20W, maximum 30W; Stroke length = 300mm(12"); Retracted length = 420mm(16.8"); Extended Length=720mm(28.8“); Maximum current consumption: 3A; Maximum Load = 202lbs(900N)
- Built-in Limit Switches: Cut off the power, this 12 volt actuator can be stopped at any position, with self-locking function
- Safe Use: Over current protection, overload protection, over-voltage protection. It works in temperatures from -4°F to +167°F and can be installed on snowblower chutes, chicken coops, industrial equipment, solar panels, etc.
- Wide Application: Chicken Coop Doors, TV lift tables, massage beds, electric beds, medical chairs, electric equipment, micro-devices, electric sofas, camera frames, cameras and more
| Item Weight | 3.23 pounds |
|---|---|
| Manufacturer | MYFULLY |
| Package Dimensions | 16.85 x 8.23 x 2.09 inches |
