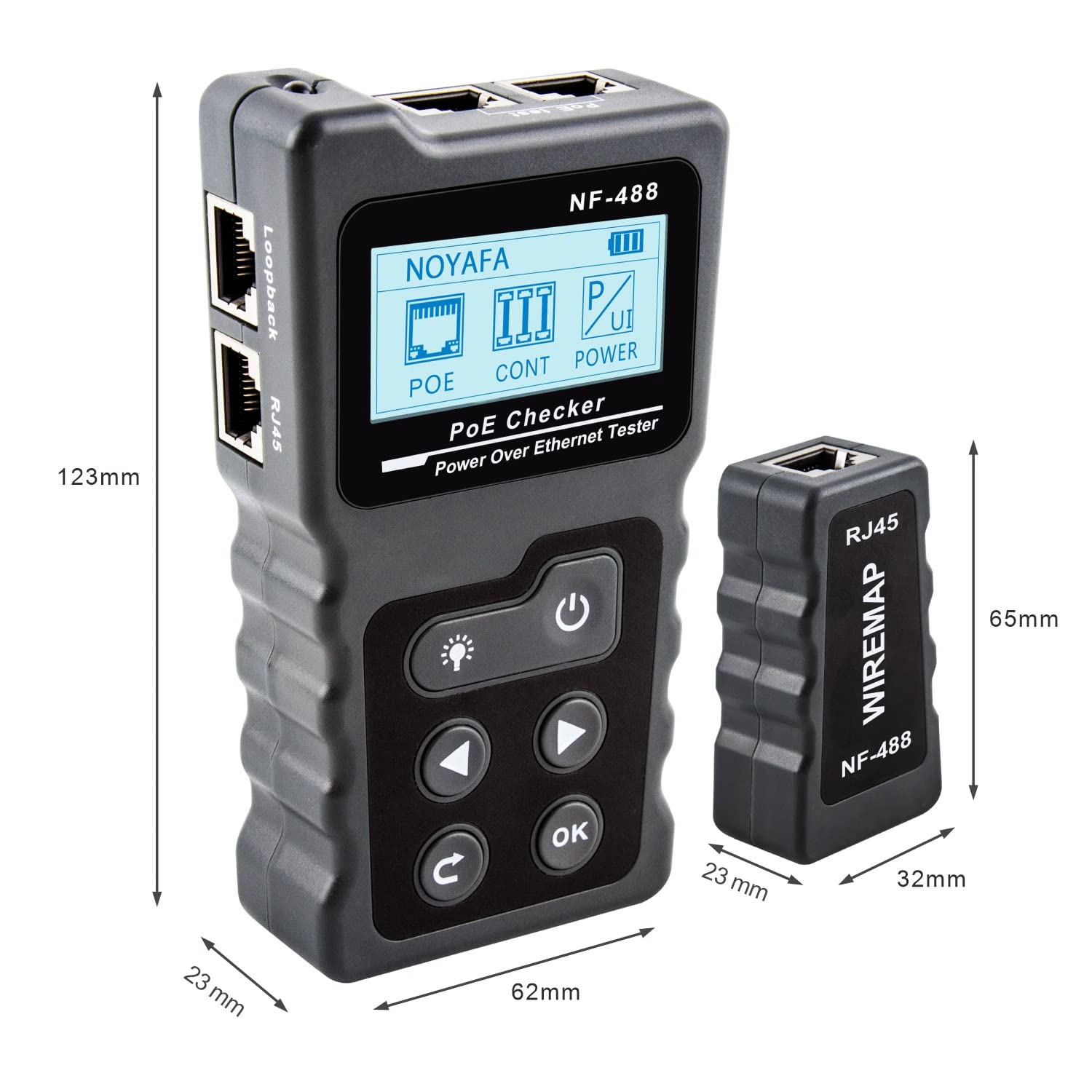

NF-488 New LCD Network PoE Checker Over The Ethernet cat5 cat6 LAN Cable Tester Loop Test Tool, Power Over Ethernet (PoE) Checker Tester
Product details
| Management number | 211306873 | Release Date | 2026/04/04 | List Price | $34.98 | Model Number | 211306873 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Model Number : NF-488: NF-488 Power over Ethernet (PoE) Checker Tester. Identify at/af Standard / Voltage / Current / Power / Continuity / Loopback Place of Origin : Shenzhen.China Main Function : Detecting PoE voltage, current, power, PSE standards Power supply modes, Verify RJ45 cables Power : DC1.5V x 3 (not included) Warranty : 1 year Features: Test the information of the standard/non-standard PoE device, such as voltage, polarity, midspan or endspan.
- 【Identify af / at Standard Automatically】Quickly check power sourcing equipment (PSE) type, the IEEE802.3af or 802.3at standard. 【Inline Power Testing】Inline test info of standard/non-standard PoE devices, including power supply voltage, power supply polarity, crossover mode, and more.
- 【Cable Continuity Testing】Test the short circuit, crossover and open circuit status for STP, UTP lan cable. 【Loopback Testing】Test the loop circuit connected to switch is normal or not. 【Lamp】A lamp is equipped in main unit, helps work in darkness.【Certification】 Passes RoHS, FCC and CE compliance testing
- Specifications: Material: ABS Transmitter Specification: CONTINUITY FUNCTION: Cable Types: STP/UTP Max Testing Range: 600m Wire Mapping: Emitter + remote, emitter + switch/routor.POE FUNCTION: Test Range: DC5-60V PoE switch Standard Identify: 802.3af/at(standard/non-standard) Test Range Power: 0-18W
| Color | grey |
|---|---|
| Model | NF-488 |
| Brand Name | YuqiaoTime |
| Unit Count | 1.0 Count |
| Item Weight | 1 Kilograms |
| Manufacturer | NOYAFA |
| Power Source | Battery Powered |
| Item Dimensions | 8.66 x 2.87 x 1.14 inches |
| Specification Met | CE, Energy Star, RoHS |
| Included Components | 1 Emitter 1 * Remote 1 * Crocodile Clip Test Line 2 * Cable Lead |
| Warranty Description | 1 year warranty |
| Upper Temperature Rating | 50 Degrees Celsius |
| EU Spare Part Availability Duration | 2 Years |
