OWON XDS3104AE Oscilloscope 100 MHz, 4 Channels Standard with Multi- Touch Screen I2C / SPI / RS232 decoding/CAN decoding + DMM + WiFi + VGA + Battery
Product details
| Management number | 212001677 | Release Date | 2026/04/06 | List Price | $639.60 | Model Number | 212001677 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

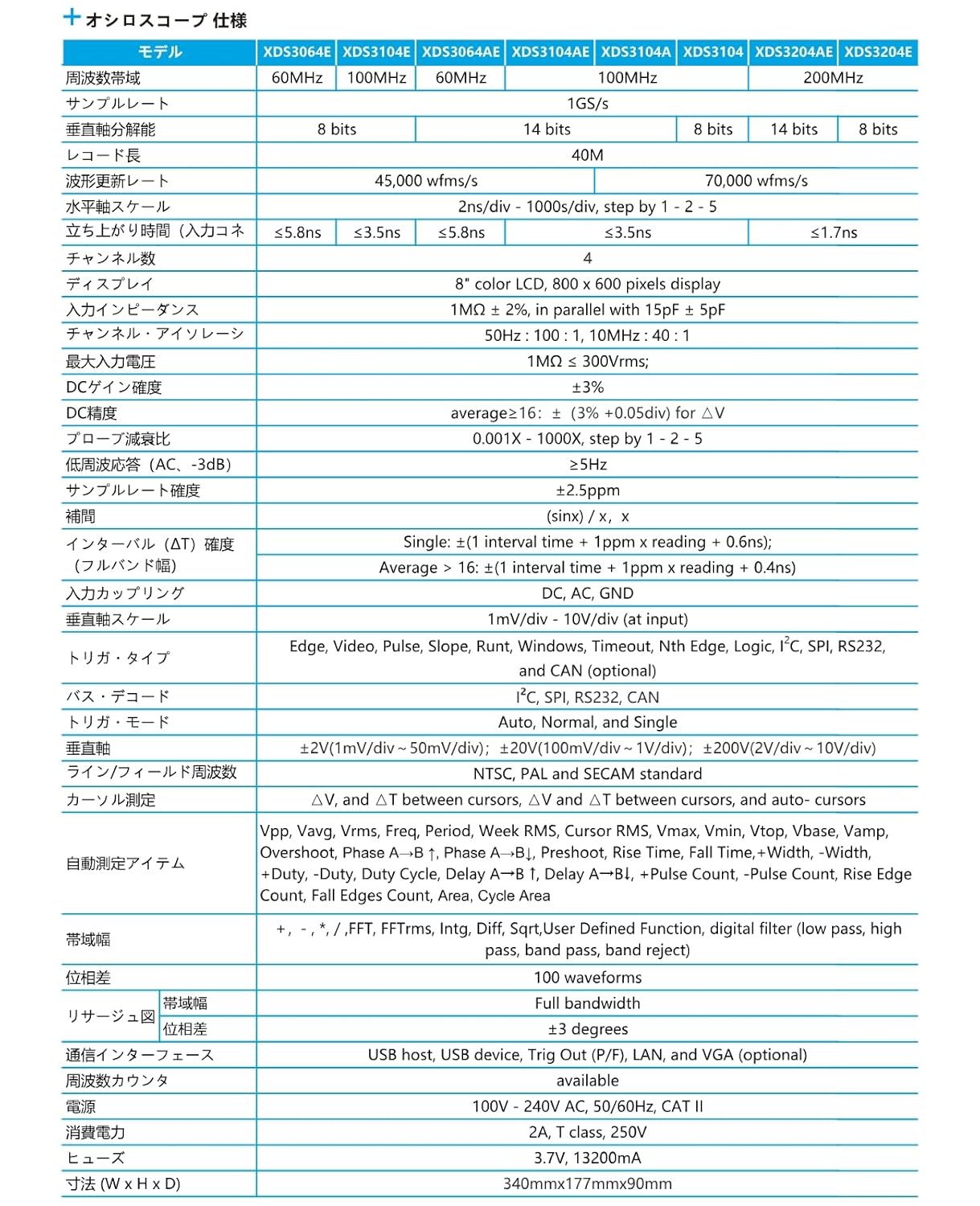

OWON XDS3104AE Series 4CH 14bit Touchscreen Digital Oscilloscope with I2C / SPI / RS232 decoding/CAN decoding + DMM + WiFi + VGA + Battery + 100MHz Bandwidth，1GS/s sample rate + 14-bit high resolution ADC + 40M record length 45,000 wfms/s waveform refresh rate + low back ground noise +8 inch 800 x 600 high resolution LCD, optional multi-touch screen, more user-friendly operation experience + SCPI, and LabVIEW supported + multi- trigger, and bus decoding function + multi-interface integration - USB host, USB device, USB port for PictBridge, LAN, AUX, and VGA Specifications: Model: XDS3104AE Bandwidth6:100MHz Sample Rate:1GS/s Vertical Resolution (A/D)):14 bits Record length40M Waveform Refresh Rate45,000 wfms/s Horizontal Scale (s/div))2ns/div - 1000s/div, step by 1 - 2 - 5 Channel4 Display8" color LCD, 800 x 600 pixels display Sample Rate / Relay Time Accuracy±1ppm Input CouplingDC, AC, GND Vertical Sensitivity1mV/div - 10V/div (at input) Trigger TypeEdge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, RS232, and CAN (STANDARD) Trigger ModeAuto, Normal, and Single Vertical Range±2V(1mV/div～50mV/div)；±20V(100mV/div～1V/div)；±200V(2V/div～10V/div) Waveform Math+, -, *, /, FFT, Intg, Diff, Sqrt, and user defined function Communication Interface:USB host, USB device, USB port for PictBridge, Trig Out (P/F), LAN, and VGA (optional) Frequency Counteravailable Power Supply100V - 240V AC, 50/60Hz, CAT II Fuse2A, T class, 250V Battery (optional)3.7V, 13200mA Dimension (W x H x D)340mmx177mmx90mm Accessories: Power Cord CD Rom Quick Guide USB Cable Probe Probe Adjust Below options are cost additonal ,please contact seller : Q9 (optoinal) Soft Bag (optional) Battery (optional)
- OWON XDS3104AE Series 4CH 14bit Touchscreen Digital Oscilloscope with Multi-touch screen ,I2C / SPI / RS232 decoding/CAN decoding + DMM + WiFi + VGA + Battery
- + 100MHz Bandwidth，1GS/s sample rate
- + 14-bit high resolution ADC
- + 40M record length 45,000 wfms/s waveform refresh rate
- +8 inch 800 x 600 high resolution LCD, optional multi-touch screen, more user-friendly operation experience
| Item Weight | 7.9 pounds |
|---|---|
| Manufacturer | OWON |
| Item model number | XDS3104AE |
| Package Dimensions | 16.1 x 11.54 x 7.17 inches |
| Is Discontinued By Manufacturer | No |
