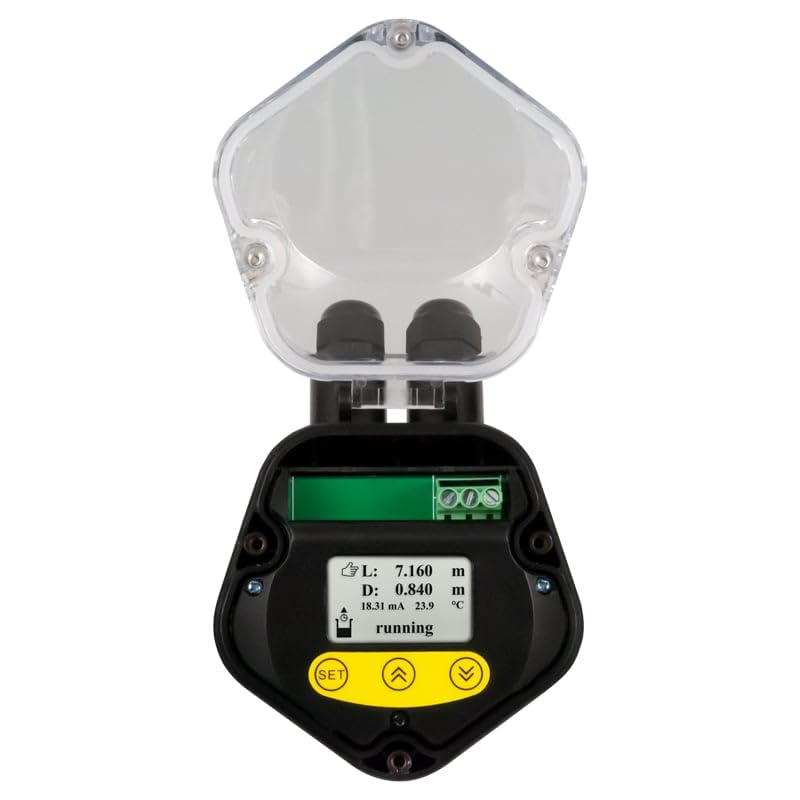

PCE Instruments, Ultrasonic Level Indicator PCE-ULM-10-N24S for Silo Level Monitoring, Measures 0–10 m with 0.5% Accuracy, Includes 4-Digit LED Display & 4–20 mA Output

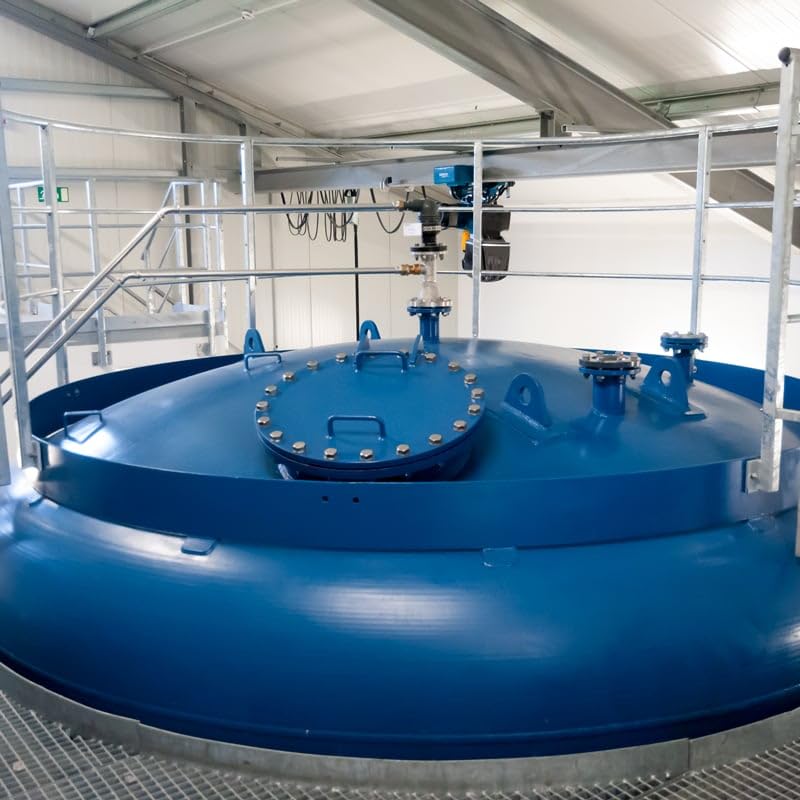

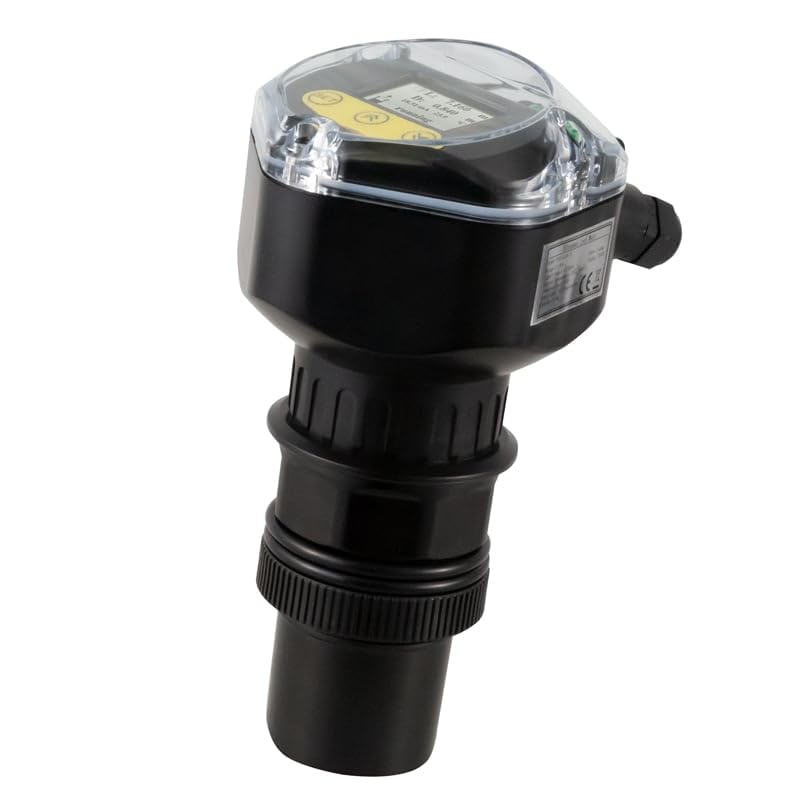

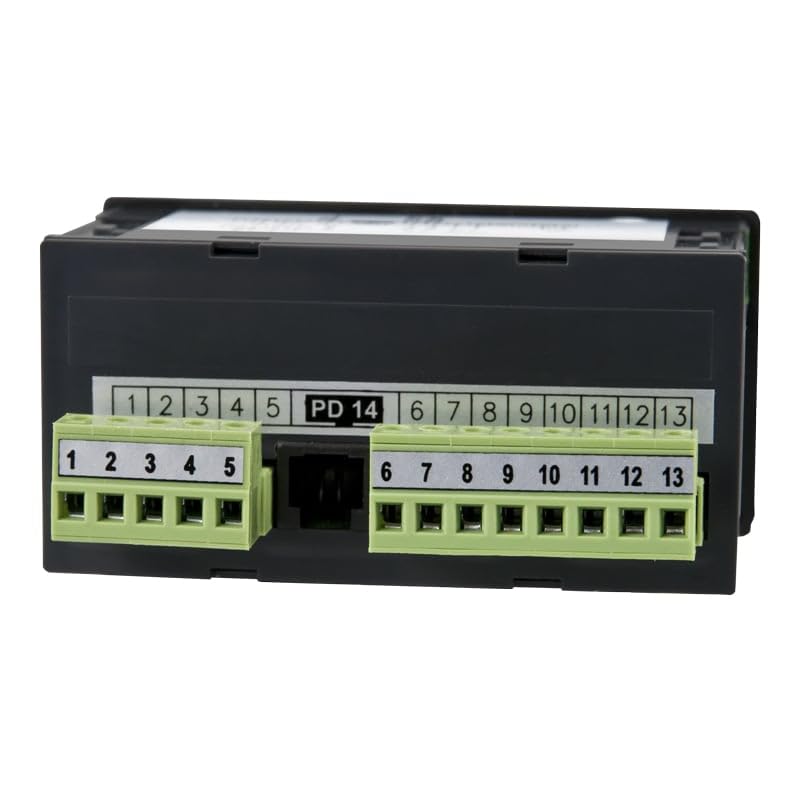

The PCE Instruments Ultrasonic Level Indicator PCE-ULM-10-N24S is a sophisticated measuring device designed for accurate silo level monitoring. With a measuring range of up to 32.8 ft and 0.5% accuracy, this device provides reliable fill level and distance measurements through its ultrasonic technology. The unit features a 4-20 mA output signal for seamless integration with process control systems, while the included external digital display (PCE-N24S) offers clear readings through its 4-digit LED display. Built to withstand challenging environments, the level indicator boasts IP66 protection for the sensor unit and IP65 protection for the display front. The device operates effectively in temperatures from -4°F to 140°F and includes ambient temperature measurement capability. Installation is straightforward with its M60 connection thread, and the two-wire connection technology simplifies setup. The unit's comprehensive features include freely scalable input signals, software configuration options, and a robust construction weighing approximately 1.8 lbs, making it an ideal solution for industrial silo monitoring applications.

• MEASUREMENT RANGE: Ultrasonic level indicator measures depths up to 32.8 ft with 0.5% accuracy and 0.003 ft resolution, ideal for silo level monitoring

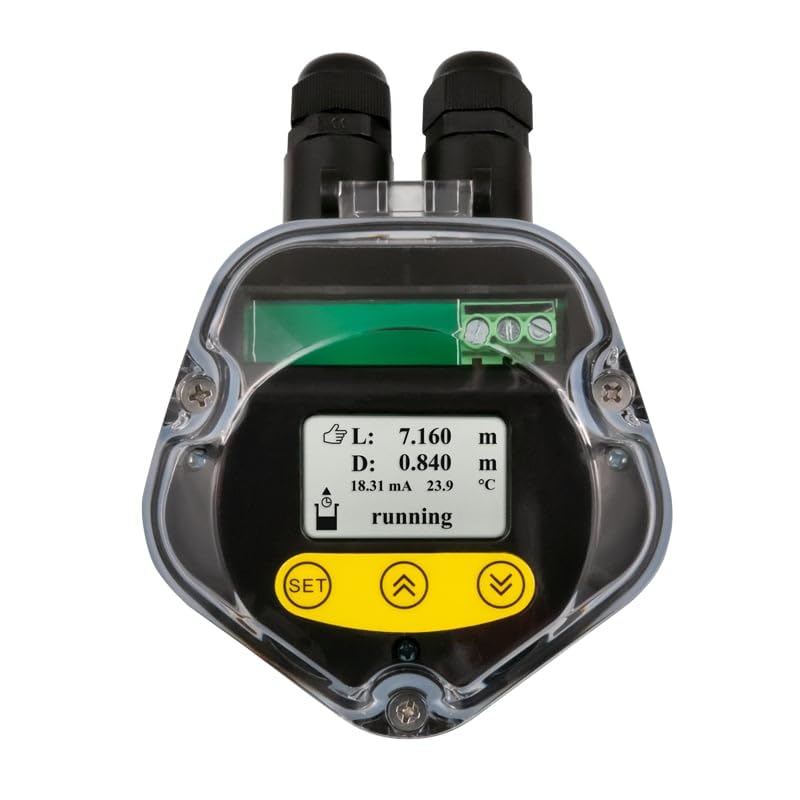

• DISPLAY FEATURES: 4-digit LED display with 0.78-inch height shows fill level, distance, and ambient temperature readings with clear visibility
• OUTPUT & CONNECTIVITY: Features 4-20 mA output signal with two-wire connection technology, allowing seamless integration with process control systems
• PROTECTION RATING: Robust construction with IP66 protection for the sensor unit and IP65 front protection for the digital display, suitable for industrial environments
• OPERATING CONDITIONS: Functions in temperatures from -4°F to 140°F, requires minimum wall distance of 3.3 ft, powered by 24V DC supply
