PneumaticPlus IPG Air in-Line Air Pressure Gauge with Push-to-Connect Fitting, Union Straight - 1/4" Tube OD x 1/4" Tube OD
Product details
| Management number | 211109708 | Release Date | 2026/04/04 | List Price | $12.18 | Model Number | 211109708 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

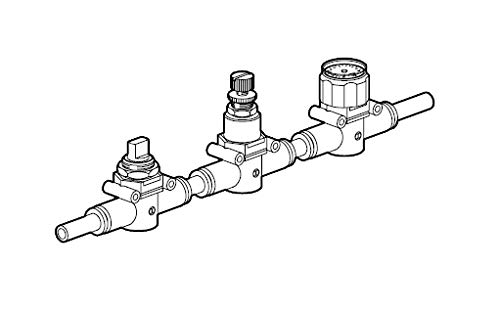

Line on Line is an exclusive range of products for mounting on pneumatic circuits. With these small, highly efficient components it is possible to perform all pneumatic functions at any point of the circuit. Line on Line is ultra-modular - the components can be connected in parallel, in series or combined parallel/series. All Line on Line products are available for pipe-pipe connection with two push in fittings. Adding an RU6 fitting, it is possible to have a pipe-NPT thread connection. The body is made of technopolymer, giving a product that is extremely lightweight and compact. One side of the body is marked with an indelible pneumatic symbol to facilitate identification and indicate the direction of flow.
- In-Line Air Pressure Gauge with Tube Fitting, 1/4" OD Tube X 1/4" OD Tube
- Push-to-connect fittings on the inlet and outlet ports1/4" Tube OD x 1/4" Tube OD
- Pressure Range: 0-12 Bar (0-170 PSI)
- Applicable Tube: Polyurethane and Nylon, Fluid Type: Air Only
- Mounting Type, it can be mounted on wall or connected to all the other components in series or in parallel.
| Brand Name | PneumaticPlus |
|---|---|
| Unit Count | 1.0 Count |
| Manufacturer | PneumaticPlus |
| Material Type | Brass |
