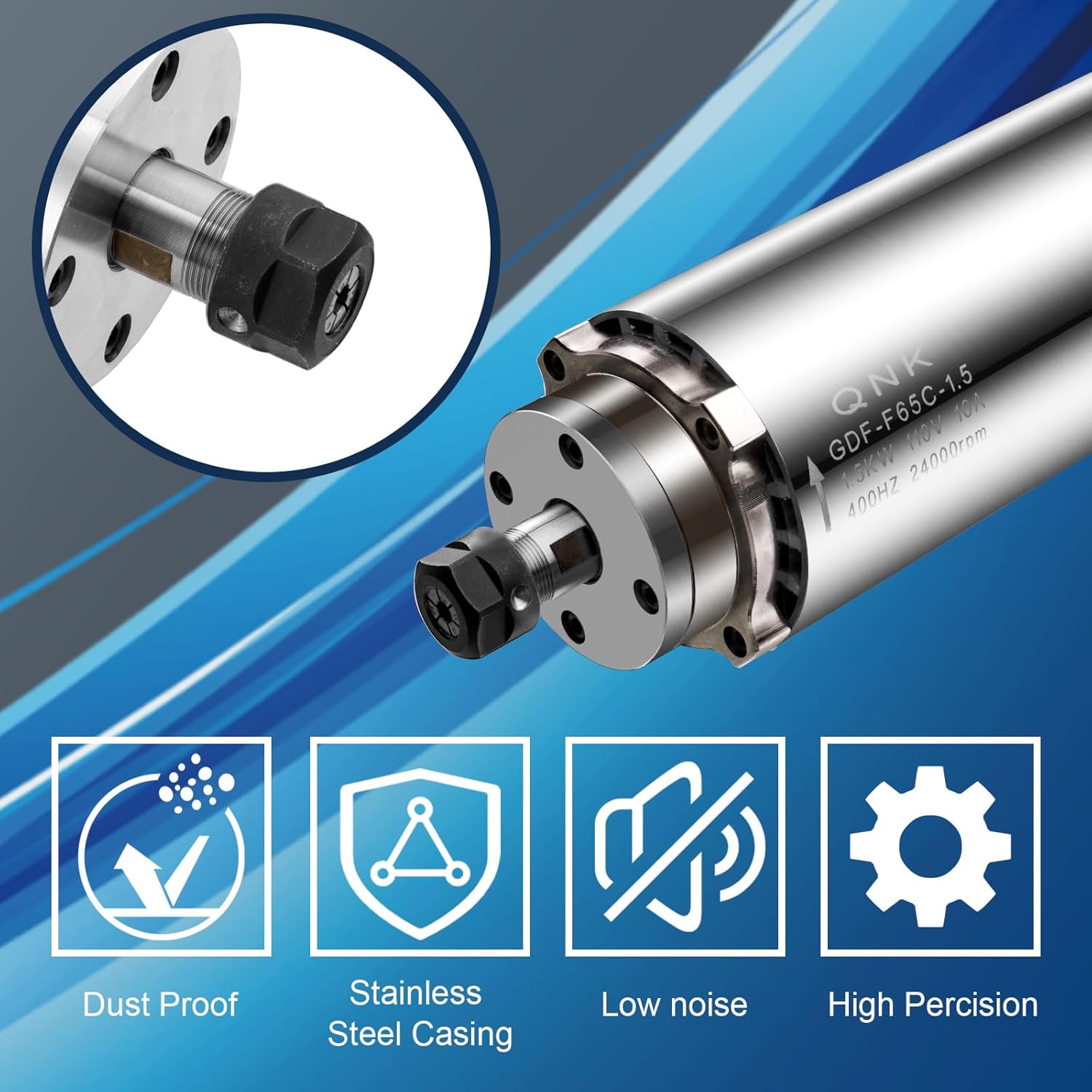

QNK CNC Spindle Motor, 1.5KW Air Cooled Spindle Motor 65mm 110V ER11 24000RPM, High Speed 10A 400Hz Air Cooled Round for CNC Router Engraver Milling Machine
Product details
| Management number | 210271082 | Release Date | 2026/04/02 | List Price | $56.00 | Model Number | 210271082 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- 【Basic Parameters】- Power: 1.5KW, Voltage: 110V, Current: 10A, Speed: 24000RPM, Frequency: 400HZ, Collet: ER11(3pcs:one was installed in the motor already), Net Weight: 2.8KG, Runout off:Taper hole runout ≤ 0.005mm, core gang runout ≤ 0.03mm,Diameter： Φ65mm.This spindle motor should be equipped with VFD 110V,400HZ
- 【Air Cooling】- This spindle motor achieves excellent heat dissipation by utilizing a convenient fan cooling system with low noise.it's more convenient and trouble-saving and can be used directly by connecting with the inverter
- 【Rotation Precision】- This spindle motor can regulate the offset to a precision of within 0.03mm, ensuring accuracy. Its rotation precision is further enhanced by adopting a high-temperature resistant grease lubrication method. The upgraded aviation plug ensures stable input power, and contributes to reliable and efficient performance of the spindle motor.
- 【Configure & Material】- Good workmanship: 3 P4 Class bearings; High quality stainless steel body; Dust-proof, scratch-proof and waterproof design that makes the spindle motor strong and durable.Advanced dynamic balance technology effectively reduce the noise and increase stability in the working process; Runout off less than 0.03mm that 10 times precision beyond average spindle motor
- 【Primary Application】- This spindle motor is usually used with VFD InverterTypes of Drilling and Engraving Materials: such as plastics, soft aluminum,brass, acrylics, PVC, PCB, wood,plywood, nylon,ect
- 【How to Connect The Spindle Motor】The spindle motor's aviation plug marked with number 1, 2, 3, 4. Number 1, 2, 3 port are connected with inverter's port U, V, W respectively. Number 4 is the ground wire, no wiring is required
- 【Package Include】- 1x Air Cooled Spindle Motor, 1x Aviation Wire, 3x Collets：ER11-3.175mm(1/8) , ER11-4mm(Φ4), ER11-6mm(Φ6)
