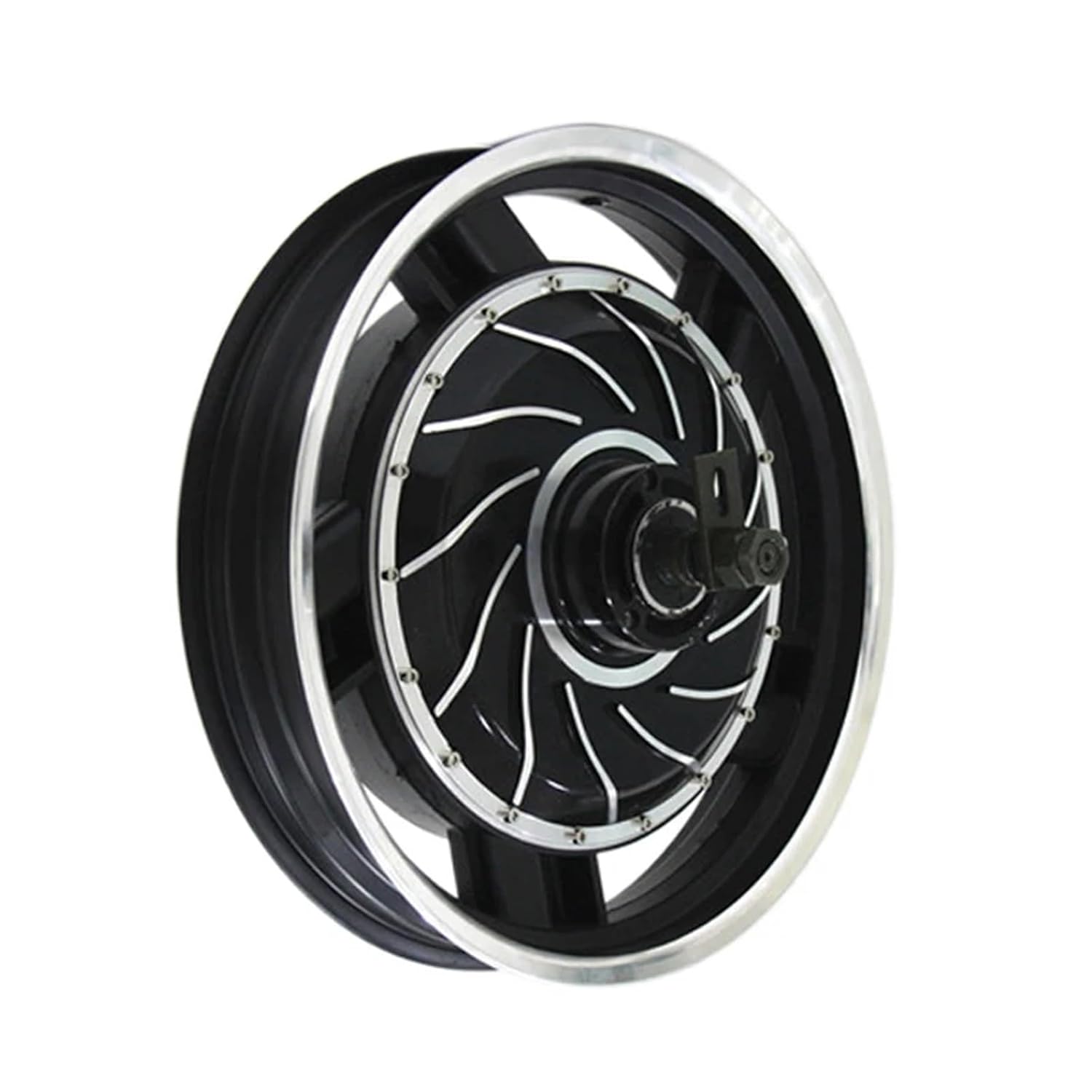

QSMOTOR 273 6000W 17inch Electric Motorcycle Wheel Hub Motor V2 Type
Product details
| Management number | 212575122 | Release Date | 2026/04/06 | List Price | $583.72 | Model Number | 212575122 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
17inch 273 E-Scooter In-Wheel Hub Motor(45H) 6000W V2 Type17inch Hub Motor specially designed Compatible With electric motorcycle, the rated power can be made 2kw,3kw,4kw,5kw,6kw,7kw or 8kw. Max speed can be customized from 30-120KMPH.Motor Specification:1.Motor Type: BLDC Hub Motor with Permanent Magnets2.Motor design: Double axle out with 17inch Aluminium rim3.Rim size:3.5x174.Matching Tire: 120/70-175.Magnet Height: 45MM6. Pole Pairs: 28 pairs7.Rated Power:6000W8.Max Power:10390W9.Rated Voltage: 72V( 72-144V Can be optional)10.Speed: 100km/h (30-110km/h can be customized)11.Max No-load RPM:1000RPM12.Max Torque: 240N.M13.Max Efficiency: 88%14.Continious current:91A15.Max current:150A16.Brake type: Disc brake17.Rear Fork width Compatible With installation: 200mm18.Winding Core material: Aluminium19.Cross Section of Phase wire: 16 mm220.Hall sensor phasing angle: 120 degree21.Temperature Sensor: Optional22.Max. Working Temperature: 70 degree, Peak 120 degree23.WP Grade: IP5424.N.W./ G..W. : 21kgs / 22kgs25.Package Size: 58*58*40CMMotor pictures:Motor drawing:==========Hign-concerned Chemical : NonePlacement on Vehicle : REARCountry/Region of Manufacture : ChinaInterchange Part Number : 273Item Weight : 27KGSItem Height : 17inchItem Width : 17inchItem Length : 17inchManufacturer Part Number : 273Origin : Mainland ChinaMotor : DC MotorMaterial : AlloyWe’re so glad you’re here! Need help? Just message us – we’re happy to assist.
- Direct drive, reduces energy loss.
- Regenerative braking, extends range.
- Eliminates transmission parts, saves space.
- Motor direct control, fast dynamic response.
- Independent wheel control, enhances handling.
| Model | YangXing68 |
|---|---|
| Brand Name | HENGCHUG |
| Manufacturer | YangXing68 |
