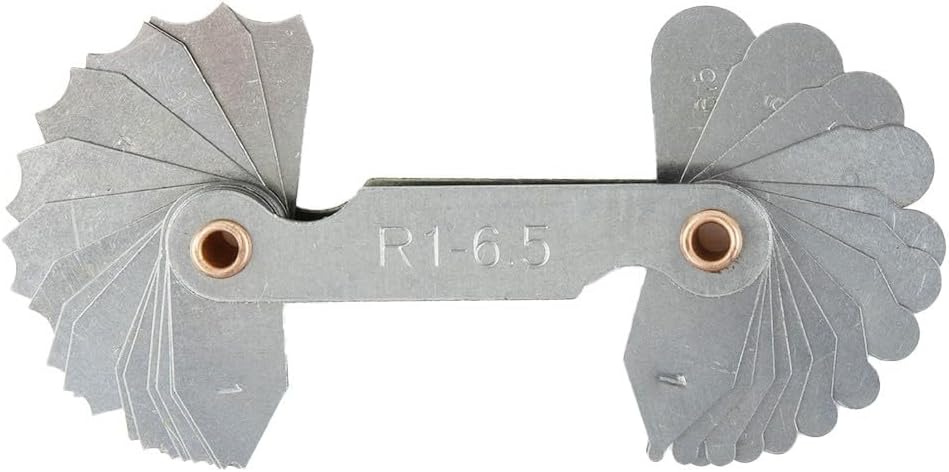

Radius Gauge R1-80mm Fillet Template Set, Steel Radius Metalworking Inspection with 65 Sizes, Measuring Tool Welding and Machining(1-6.5)

Product description features:Measuring range:R1-6.5) including: (1.0 1.25 1.5 1.75 2.0 2.25 2.5 2.75 3.0 3.5 4.0 4.5 5.0 5.5 6.0 6.5)R7-14.5 includes: (7.0 7.5 8 8.5 9 9.5 10 10.5 11 11.5 12 12.5 13 13.5 14 14.5)R15-25 includes: (15 15.5 16 16.5 17 17.5 18 18.5 19 19.5 20 21 22 24 25)R26-80 includes: (26 27 28 29 30 32 35 40 45 50 55 60 65 70 75 80)Specifications:1. Measuring pitcha. The tooth shaped steel threads that are clamped in the measured workpiece as templates. If they are not closely connected, the other is until they are closely connected.b. Then, the mark on the thread size model is the measured workpiece pitch.2. Measure the tooth anglea. Put the thread pitch and the thread model of the workpiece to be tested on the top of the same thread for testing, and then check the condition. If there is no translucent clearance, whether the tooth angle of the thread to be tested is correct; If there is uneven light transmission gap, it indicates that the measured thread profile is inaccurate.be careful:Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you.The package includes:1 * Measuring tool Manufacturer Contact Information no

• 【R1-5 Measuring Range】This measuring tool features a measuring range of R1-6.5, including a variety of sizes such as 1.0, 1.25, 1.5, 1.75, and so , to 6.5.
• 【R7-5 Measuring Range】The measuring tool also covers an extended range of R7-14.5, with sizes ranging from 7.0 to 14.5, allowing measurements.
• 【R15-25 Measuring Range】Measuring larger fillets is made with the R15-25 range, which includes sizes from 15 to 25, catering to different measurement needs.
• 【R26-80 Measuring Range】 even larger fillets, the R26-80 range provides measurements from 26 to 80, accurate a wide range of applications.
• 【Accurate and Reliable】With tooth-shaped steel threads, this tool allows precise measuring of pitch and tooth angle, accuracy in thread profile measurements.
