RATTMMOTOR CNC Spindle Motor Kit 220V 2.2KW Air Cooled Spindle Motor Square ER20+2.2KW VFD Inverter 220V Variable Frequency Drive Single to 3 Phase Converter for CNC Router Machine
$233.00
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by bitbiashara.com
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
$233.00
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by bitbiashara.com
Free 30-day returns Details
Product details
| Management number | 210271098 | Release Date | 2026/04/02 | List Price | $93.20 | Model Number | 210271098 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- 【Package Include】: ①1 x 2.2KW Square Air Cooled Spindle Motor ②1 x 2.2KW VFD with cable ③1 x ER20 Wrench
- 【2.2KW Spindle Motor】: ①This is a 220V-2.2KW air-cooled 6A spindle motor come with a ER20 nut and collet. Frequency is 400HZ, precision tapered bore is less than 0.005mm and runout off is Less than 0.01mm. ②Speed of The Spindle Motor : 0-24000RPM. Because it is a high-speed spindle motor, the spindle speed must not be lower than 9000 rpm during the use of the spindle. It should be noted that the main shaft cannot only rotate clockwise or counter-clockwise.
- 【2.2KW VFD】①Parameters: Input Voltage: 220V(+/-15%), Output Voltage: 220VAC, Input Frequency: 50-60 Hz, Output Frequency: 0-1000 Hz, Input Phase: 1 phase, Output Phase: 3 phase, Current: 11A. It provide a variety of fault protection functions: over-current, over-voltage, under-voltage, over-heat, overload, lack of equal real-time monitoring and protection to ensure safe operation.
- ②Other Fuctions: With over torque and under torque detection; With jump frequency control function, it can effectively suppress mechanical resonance and make the system more stable and reliable.It can also avoid the impact of production due to instantaneous power failure because of instantaneous power-down retention function. What's more, it supports multiple frequency settings: digital setting, analog setting, PID setting, RS485 communication setting,ect.

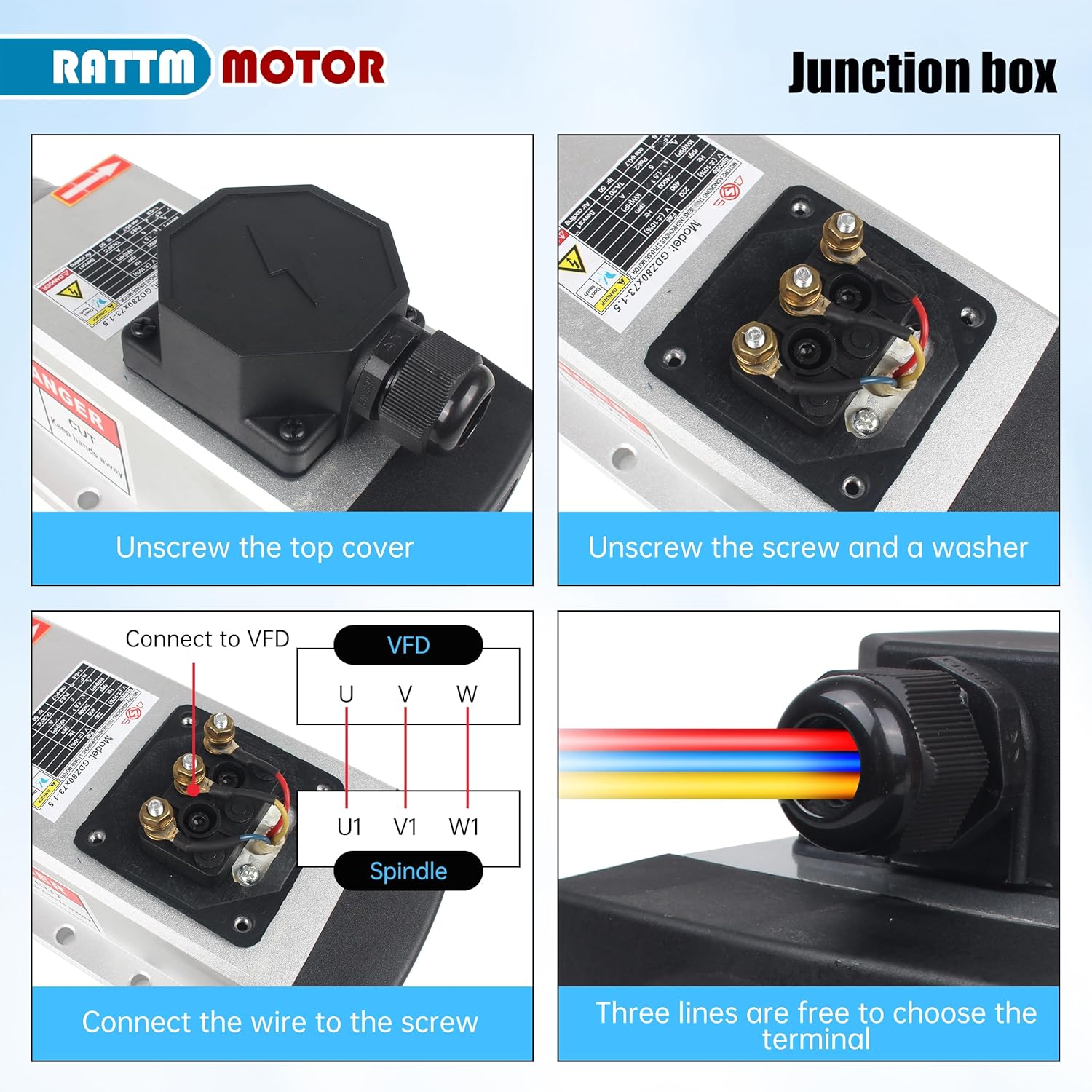

- 【How to Connect Spindle Motor and VFD】The spindle motor's aviation plug marked with number U, V, W. Number U, V, W port are connected with inverter's port U, V, W respectively.

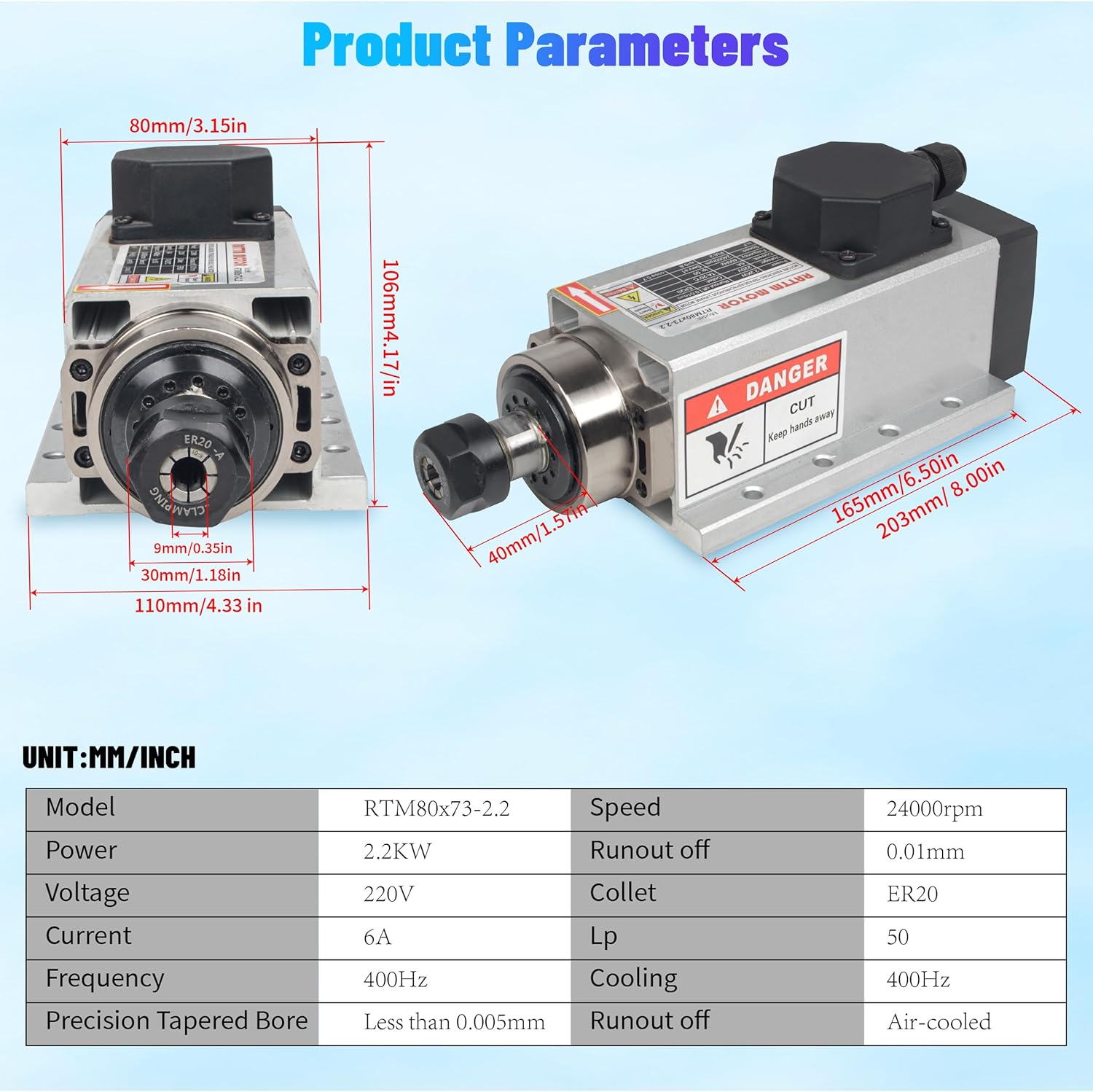

| Model | CFFK-2.2RTM |
|---|---|
| Speed | 24000 RPM |
| Voltage | 220 Volts |
| Brand Name | RATTMMOTOR |
| Horsepower | 2.2 Kilowatts |
| Model Name | CFFK-2.2RTM |
| Item Weight | 4.9 Kilograms |
| Manufacturer | RTM |
| Material Type | Stainless Steel |
| Shaft Diameter | 1.22 Inches |
| Warranty Description | 1 year warranty |
| Item Dimensions W x H | 4.3"W x 4.3"H |
