RS550 High Torque Brush DC Motor 10.8-25V 60W Electric Drill Motor with Dual Ball Bearings Low Noise for Cordless Screwdriver Replacement (14.4V-24500RPM)

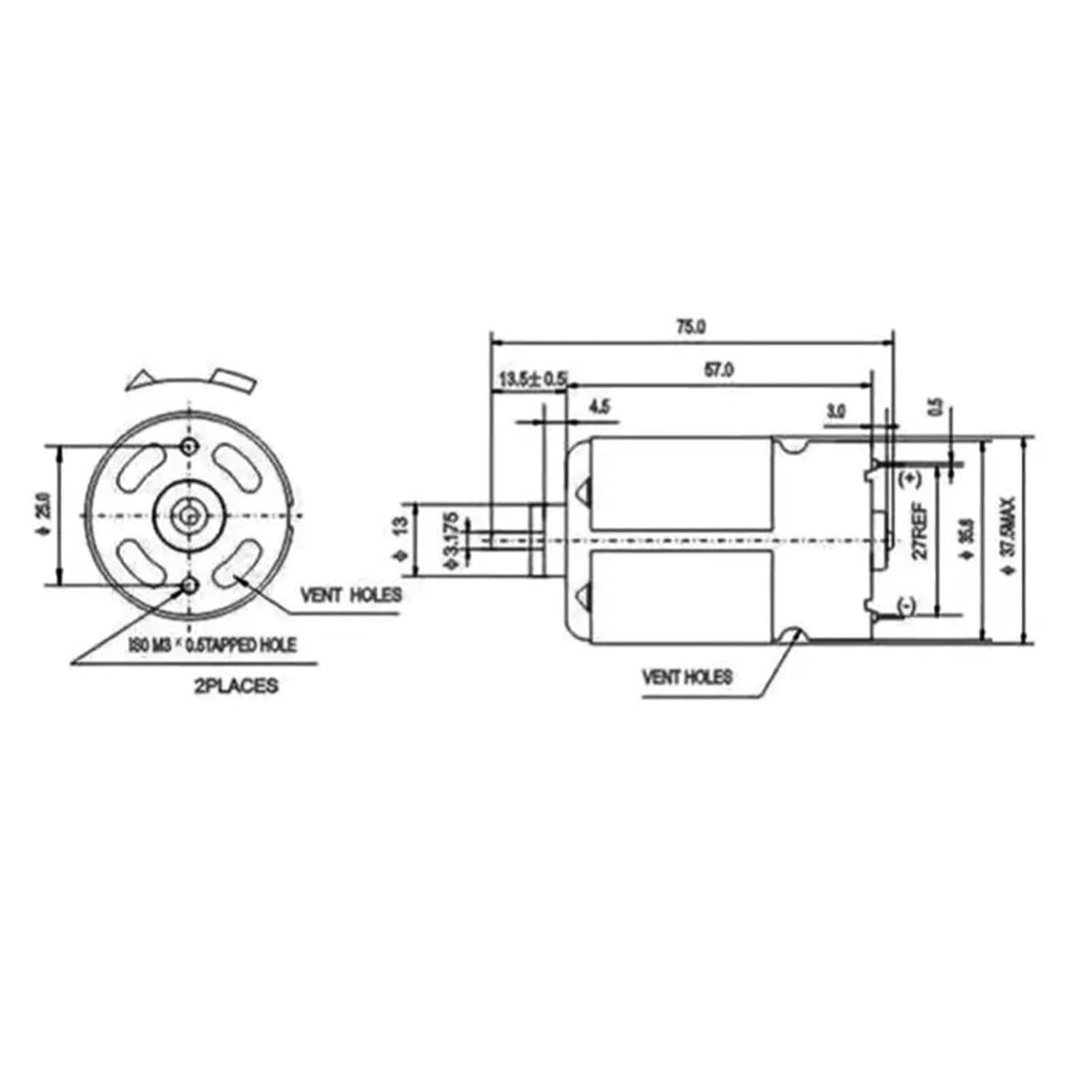

RS550 DC Motor, a versatile and high-performance replacement part designed for electric drill drivers and cordless screwdrivers. This micro motor is engineered to deliver exceptional power and efficiency. With an output power of 60W, the RS550 motor operates across a wide voltage range of 10.8V to 25V, ensuring compatibility with a variety of tools and applications. Its high-speed capabilities range from 21500 RPM at 10.8V to an impressive 29000 RPM at 25V, providing the flexibility needed for different tasks. The motor's torque of 1N.m ensures robust performance, making it capable of handling demanding drilling and driving applications with ease. The RS550 DC Motor features a brush commutation system, which is known for its reliability and durability. This motor is designed with high-quality double ball bearings on both the front and rear, ensuring smooth operation and extended lifespan. Its compact dimensions, with a length of 75.1mm and a diameter of 37.2mm, make it a perfect fit for various tool designs without adding unnecessary bulk. One of the standout features of this motor is its ability to be fixed with two M4 screws on the front, providing a secure and stable installation. The motor shaft measures 12mm in length and 3.2mm in diameter, offering a balance of strength and precision. The installation hole distance of 25mm ensures easy integration into your existing tool setup. Crafted with high-concerned chemical-free materials, this motor is not only efficient but also environmentally conscious. It is certified by CCC, ensuring compliance with safety and quality standards. The RS550 DC Motor is lightweight, weighing just 200 grams, and comes in a compact package measuring 85x45x46mm, making it convenient for storage and transportation. Its high-speed, high-torque performance and low-noise operation make it a valuable addition to any toolkit.

• High-speed and high-torque DC motor designed for electric drill machines and cordless screwdrivers
• Versatile voltage range of 10.8-25V with adjustable no-load speeds from 21500 to 29000 RPM
• Compact design with dimensions of 80x40x41 mm, making it suitable for various tool applications
• Features front and rear double ball bearings for enhanced durability and smooth operation
• Equipped with a brush commutation system and can be fixed with two M4 screws for secure installation
