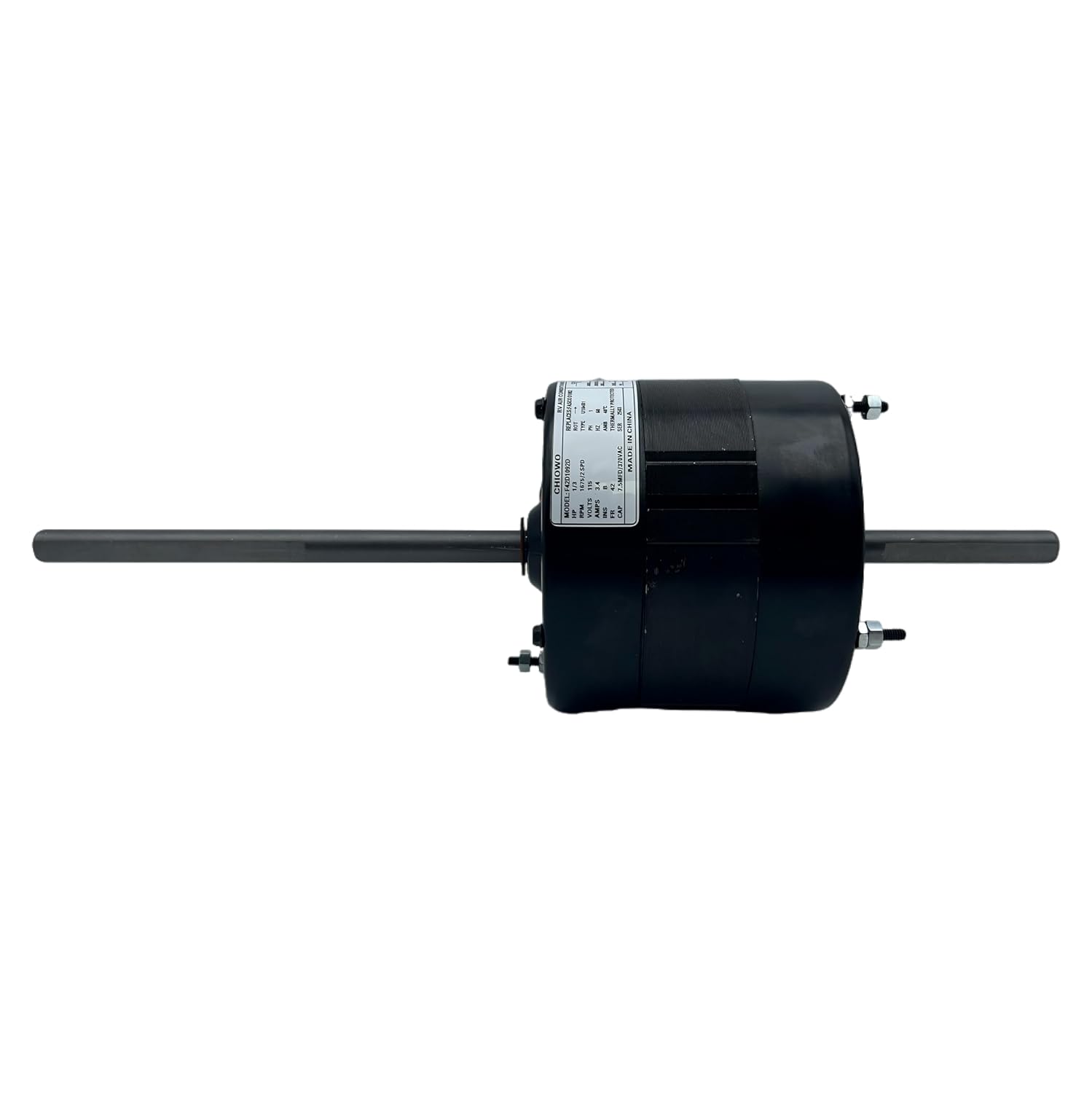

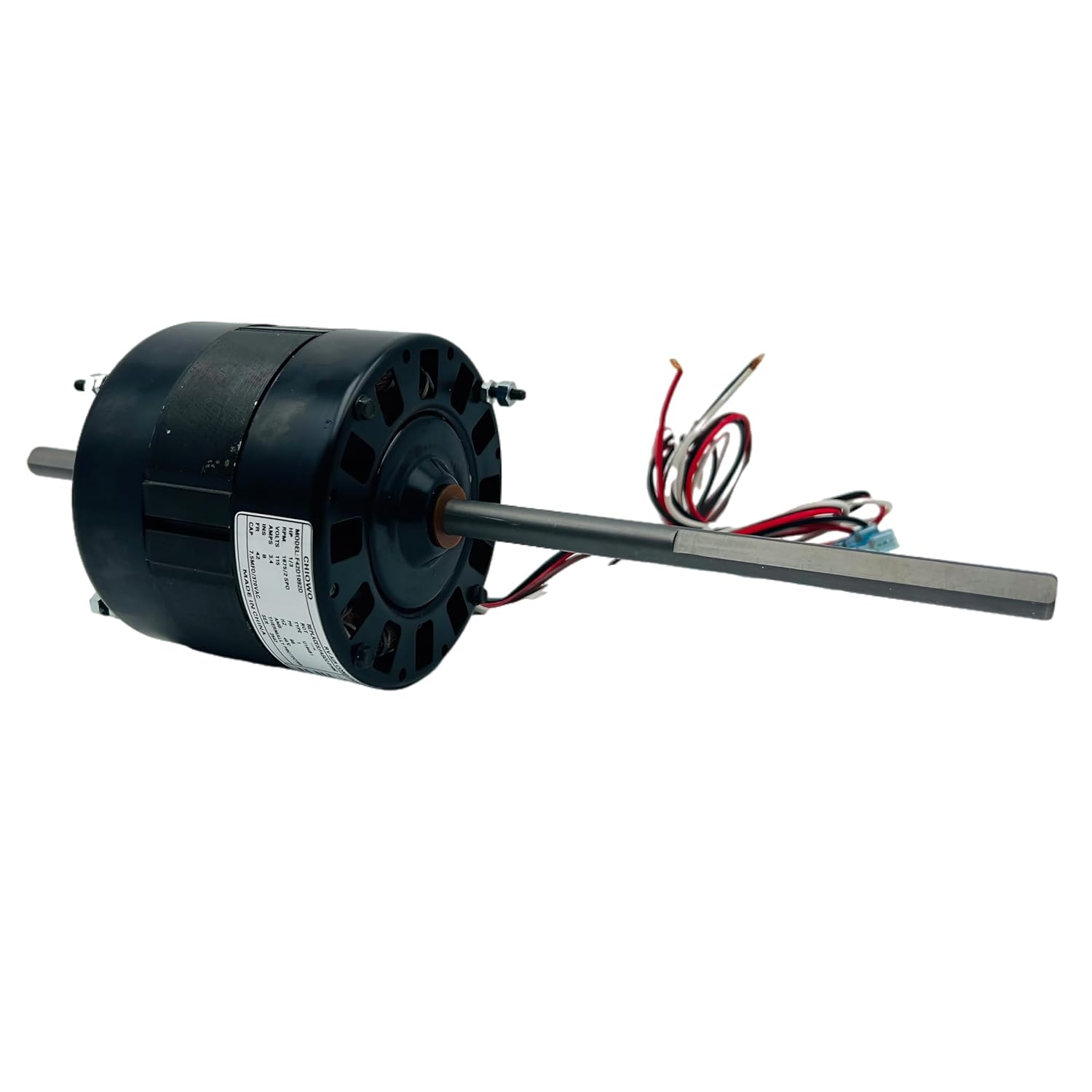

RV Air Conditioner Motor Replaces Fasco D1092 1/3 HP, 115 V, 1675 RPM, 2 Speed, 3.4 A, Double Shaft, Compatible with Coleman Mach 1468-3069, 1468-306, 7184-0432, 7184-0156, 7855MVA-A11U
Product details
| Management number | 210261134 | Release Date | 2026/04/02 | List Price | $28.00 | Model Number | 210261134 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
CHIOWO RV Air Conditioner Motor F42D1092D 1/3 HP 2-Speed 1675/1080 RPM 115 Volt 3.4 Amps Single Phase Double Shafted Open Construction, Air Over Rotation: CW Lead End Thermally Protected Motor Diameter: 5" Shaft Dimensions: 7-7/8" x 1/2" x 3-5/8" "A" Dimension (motor length less shaft): 4-3/16" Bolt Pattern: 4 1/2" Permanent Split Capacitor (PSC) Requires a 7.5 MFD 370V Capacitor
- Replacement Models: Fasco D1092, Zhongshan Broad-Ocean:Y6L457D01L (1468A306), 7184-0156, 7184-0432, 7855MVA-A11U etc. Coleman Mach Fan Motor Part No. 1468-306, 1468-3068, 1468A3068, 1468-3069, 1468A3069, 1468-3109 Fits 6000 & 8000 Series AC Units Coleman Models: 48004, 48014, 48064, 48203, 48204, 48213, 48253, 48254, 48263, 48264, 8332, 8333, 8335, 8433, 8534, 8535, 8632, 8633, 48254C869 etc.
- 1/3HP, 1675/1080RPM, 2 SPEED, 115V, 3.4A, 60Hz Include 1 pcs capacitor 7.5μF/370V
- OAO Enclosure, Double Shaft, Sleeve Bearing
- Rotation = CWLE (short shaft end); Shaft 7-15/16" x 1/2" x 3-1/2", Body Diameter 5" (42 Frame)
- Upgraded OEM Standard Quality.
| Model | D1092 |
|---|---|
| Speed | 1675 RPM |
| Voltage | 115 Volts |
| Brand Name | CHIOWO |
| Horsepower | 0.33 Horsepower |
| Item Weight | 9.9 Pounds |
| Manufacturer | Magpie Eco |
| Material Type | Copper |
| Included Components | Motor |
| Item Dimensions W x H | 4.8"W x 15.4"H |
